RELEASE HANDLE ASSEMBLY REPLACEMENT (XPS OPTION)

Tools Required:
• 3/32" Hex Wrench
• Small Slotted Screwdriver
Procedure:
1. Raise the cot and the fowler to the full upright position.
2. Raise the siderail to the up and locked position.
3. Using a 3/32" hex wrench, remove the four screws (A) that secure the release cover (B) to the overmold assembly
to remove the release cover (Figure 121).
4. Using a small slotted screwdriver, pry the release handle return spring (C) up to remove the spring (Figure 121).
5. Grasp the release handle assembly (D), and hinge it upward on the spring side to remove it from the cover
(Figure 121).
6. Reverse steps to reinstall.
7. Verify proper operation of the unit before returning it to service.
SPRING HANDLE ASSEMBLY REPLACEMENT
(XPS OPTION)
Tools Required:
• 3/32" Hex Wrench
• Small Slotted Screwdriver
Procedure:
1. Raise the cot and the fowler to the full upright position.
2. Raise the siderail to the up and locked position.
3. Using a 3/32" hex wrench, remove the four screws (A) that secure the release cover (B) to the overmold assembly
to remove the release cover (Figure 121).
4. Using a small slotted screwdriver, pry the release handle return spring (C) up to remove the spring (Figure 121).
5. Reverse steps to reinstall.
6. Verify proper operation of the unit before returning it to service.
www.stryker.com
Service Information
6506-109-005 REV F
B
D
C
A
A

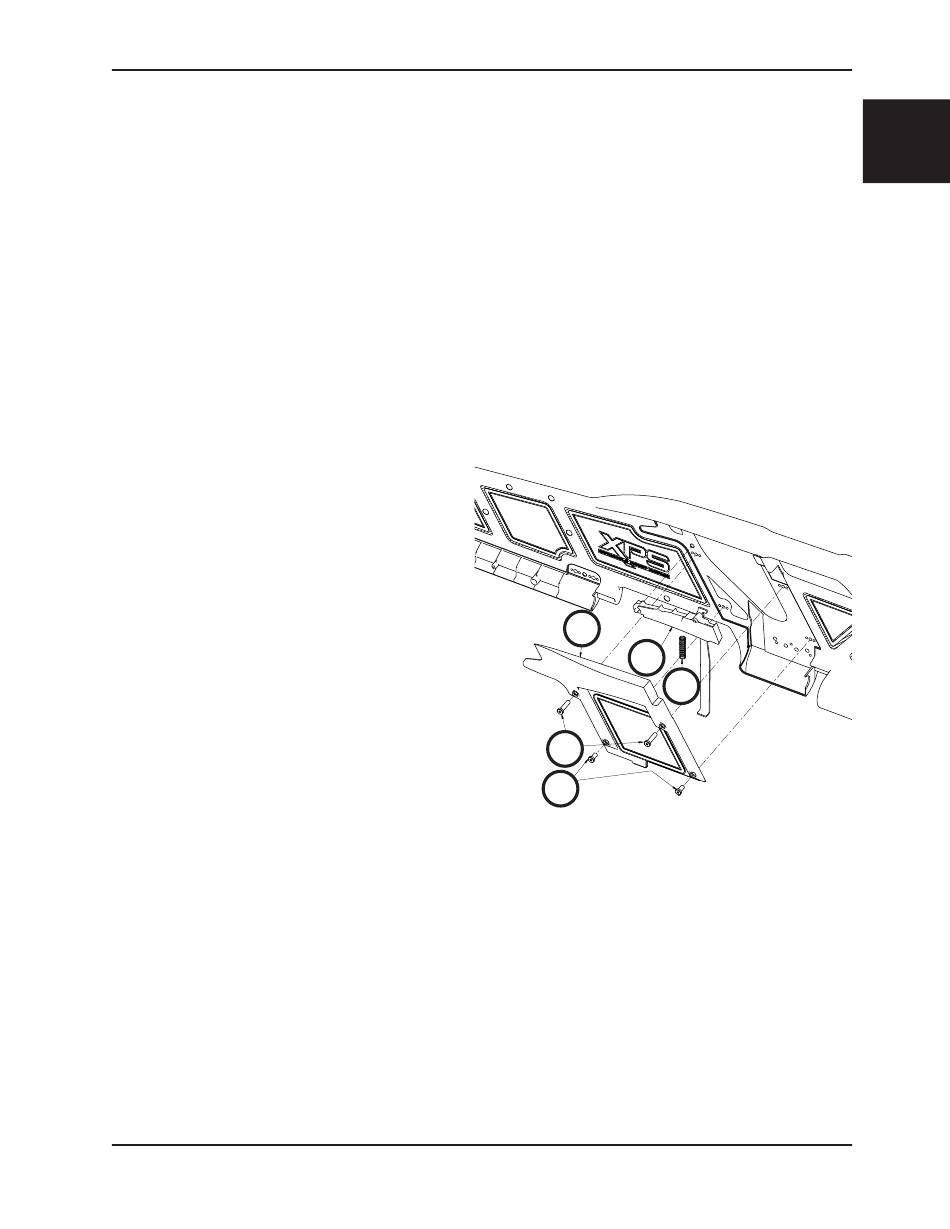

Figure 121
