RATCHET ASSEMBLY REPLACEMENT (XPS OPTION)

English
Tools Required:
• 3/32" Hex Wrench
• 1/4" Hex Wrench
• 3/16" Hex Wrench
• Torque Wrench (ft-lb)
Procedure:
1. Raise the cot and the fowler to the full upright position.
2. Raise the siderail to the up and locked position.
3. Using a 3/32" hex wrench, remove the two screws (A) that secure the ratchet cover (B) to the ratchet assembly.

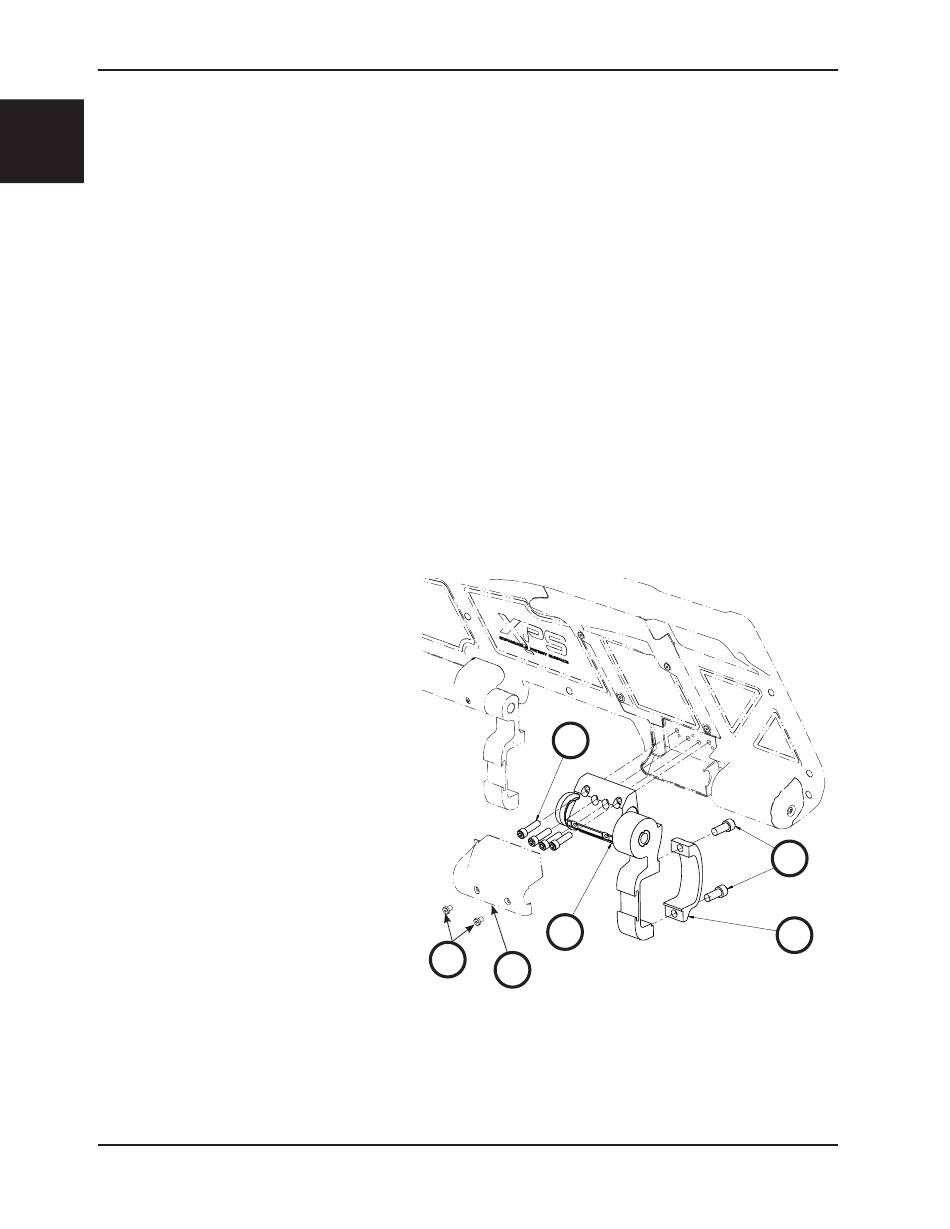

Remove the cover (Figure 120).
4. Using a 1/4" hex wrench, remove the socket head cap screws (C) that secure the siderail clamp (D) to the ratchet
assembly at the foot end of the main assembly (Figure 120). During installation, torque both new screws to 22 ±
3.3 ft-lb.
5. Using a 3/16" hex wrench, remove the four screws (E) that secure the ratchet assembly (F) to the overmold
assembly and discard, then remove the ratchet assembly (Figure 120). During installation, torque the four new
screws to 9.5 ± 1.5 ft-lb.
6. Grasp the ratchet assembly and pull it toward the head end of the cot to remove.
7. Reverse steps to reinstall.
8. Verify proper operation of the unit before returning it to service.
