SETTING COT LOAD HEIGHT AND "JOG" FUNCTION

English
The cot control mechanism uses height sensors to set the load height stop for the cot. These height sensors match
the load wheel height for a specific ambulance deck height.
The cot load height can be set from 26" to 36" (66 cm to 91 cm) as measured from the ground to the bottom of the
load wheel. Determine the cot load height before placing the cot into service. You can modify the cot load height at
any time, but you must determine and set the cot load height before the cot is placed into service.
To set the cot load height:

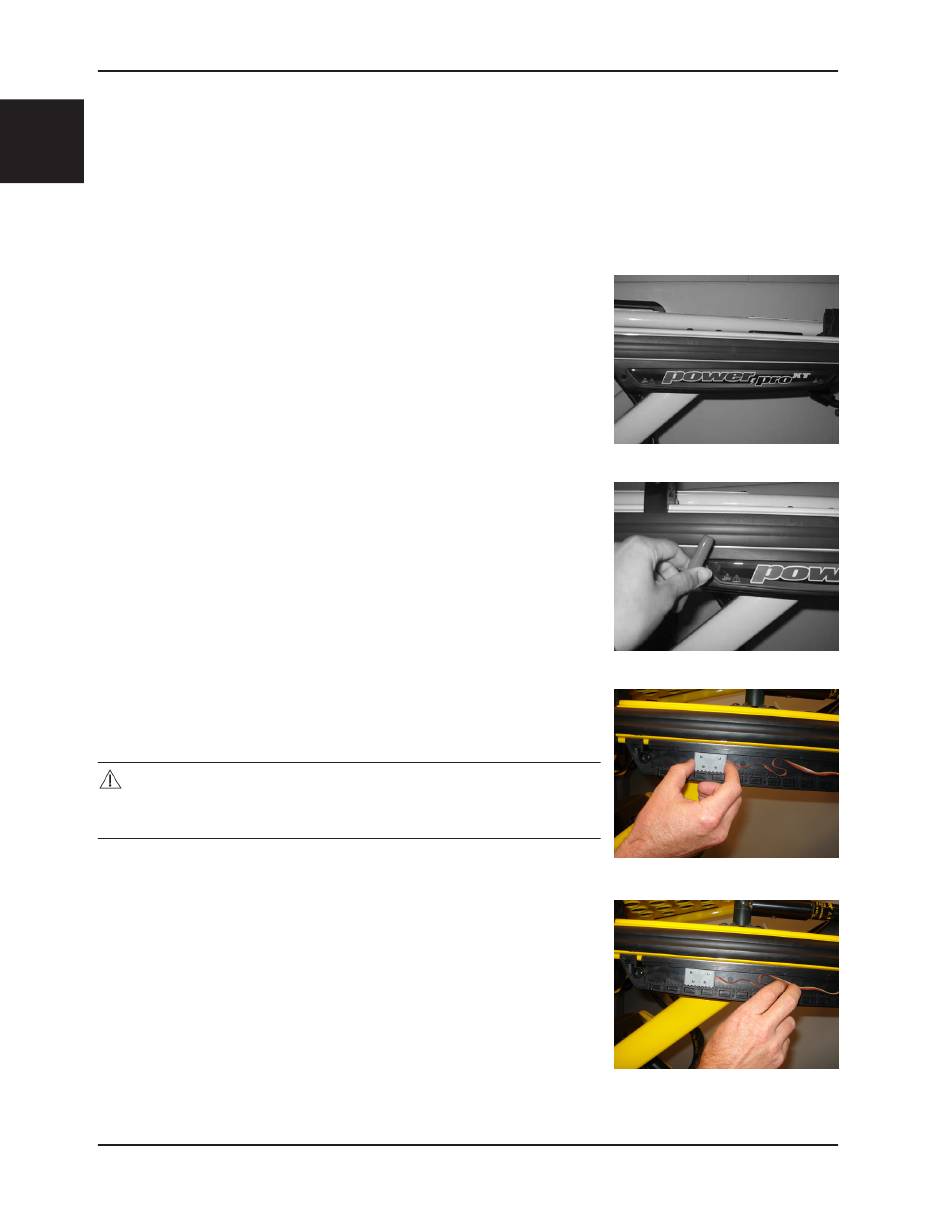

1. Locate the sensor housing on the patient right side of the cot as shown in
Figure 5.
2. Using a T27 Torx driver, remove the sensor housing cover by loosening the
two (2) screws (one on each end) as shown in Figure 6.
3. Adjust the left height sensor only as shown in Figure 7.
a. Move the sensor to the left to increase the set load height or move the
sensor to the right to decrease the set load height.
b. Press the retract (-) button to lower the cot to its lowest position, then
press the extend (+) button to raise the cot to its highest set load height.
c. Measure the cot height from the bottom of the load wheels to the
floor.
Note: Add an additional 1/2" (1,3 cm) to your deck height measurement
to allow for variations with patient height and other equipment added
to the cot.
d. Repeat steps 3a and 3b until the desired cot load height is reached.
4. After the proper load wheel height is set, ensure that all of the height sensor
cables are secure and lying flat inside of the housing between the sensors
as shown in Figure 8.
5. Using a T27 Torx driver, replace the sensor housing cover by reinstalling the
two screws that were removed in step 2.
6. Following completion of the sensor height adjustment, verify that the cot
properly engages the safety hook.
CAUTION
The cot can be set at any cot load height position. Establish the required cot load
height before placing the cot into service.
