HYDRAULIC HOSE REPLACEMENT

English
Tools Required:
• 13/16" Combination Wrench
• 11/16" Combination Wrench
• (2) Saw Horse
Procedure:
1. Raise the cot to the full upright position.
2. Using two saw horses, support the litter and activate the manual release handle to relieve any hydraulic oil
pressure.
3. Using 11/16" and 13/16" combination wrenches, remove the damaged hose (A or B) (Figure 114).
Notes:
• Pay attention to the routing of the hydraulic hose for reinstallation.
• Hydraulic oil will leak from the hoses and cylinder. Lay down towels to catch the oil.
4. Reverse steps to reinstall.
5. Check functionality by running the cot up and down several times. If necessary, add hydraulic oil. See "Filling the
Hydraulics Assembly Reservoir" on
6. Verify proper operation of the unit before returning it to service.
Return To Table of Contents
1-110
Service Information
page 1-102.
A

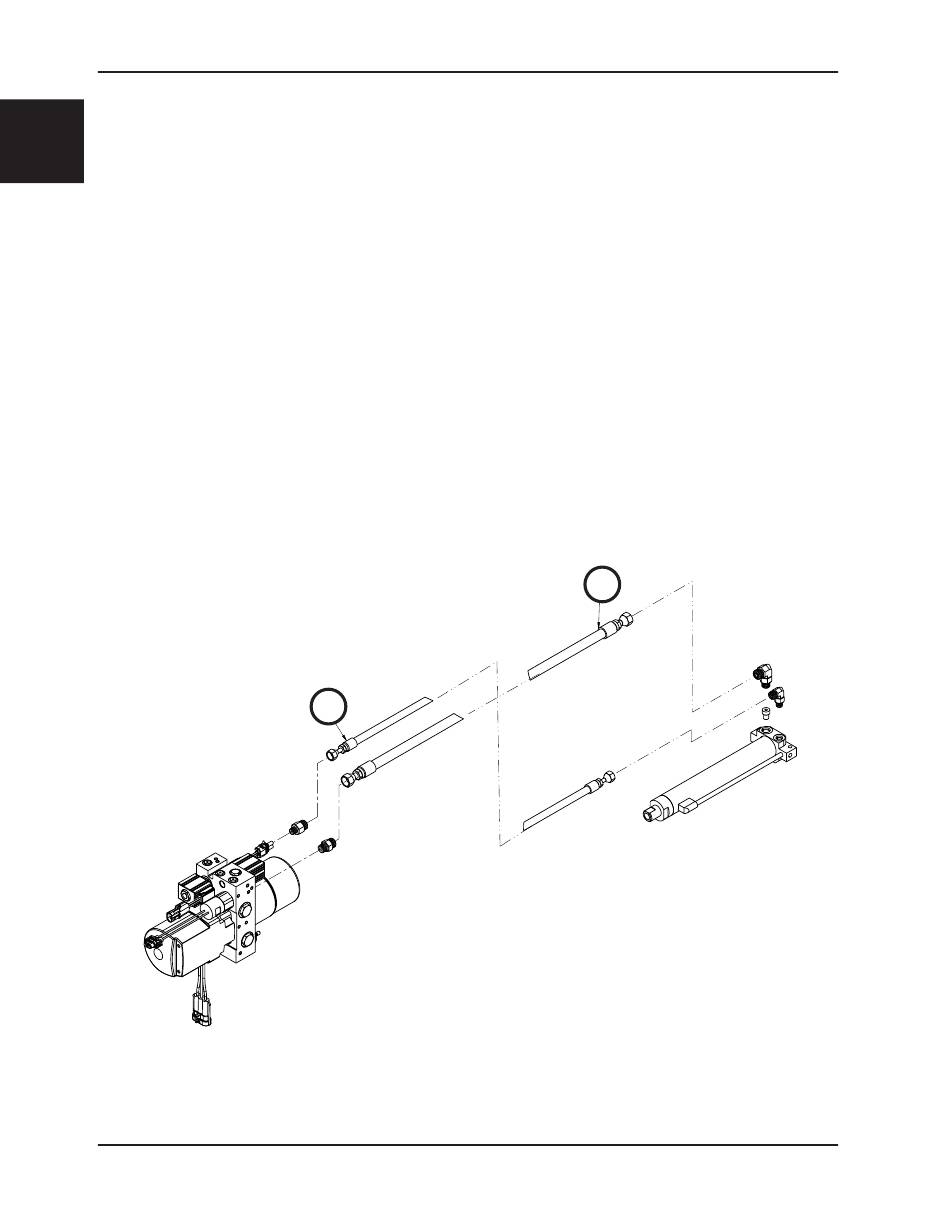

Figure 114
6506-109-005 REV F
