LOADING AN EMPTY COT INTO A VEHICLE WITH ONE OPERATOR - POWERED METHOD

Loading an unoccupied cot into the emergency vehicle can
be accomplished by a single operator.
WARNING
• The one person loading and unloading procedures
are for use only with an empty cot. Do not use the
procedures when loading/unloading a patient. Injury to
the patient or operator could result.
• Ensure proper hand placement on hand grips. Hands
should be clear of red safety bar pivots while loading
and unloading the cot or whenever changing height
position of the cot with two or more operators.
To load an empty cot into a vehicle with one operator:
1. Place the cot into a loading position (any position
where the load wheels of the head section meet the
vehicle floor height).
2. Lift the vehicle bumper to the raised position (if
equipped).
3. Roll the cot to the open door of the patient
compartment.
4. Push the cot forward until the load wheels are on the
patient compartment floor (Figure 27) and the safety
bar passes the safety hook.
5. For maximum clearance to lift the base, pull the cot
back until the safety bar engages the safety hook.
6. Grasp the cot frame at the foot end and press the
retract (–) button, until the undercarriage of the cot
retracts into its highest position as shown in Figure 28.
7. Push the cot into the patient compartment until the cot
engages the cot fastener (not included) as shown in
Figure 29.
WARNING
When using a cot fastener, do not load the cot into the
vehicle with the head section retracted. Loading the cot
with the head section retracted may cause the product to tip
or not engage properly in the cot fastener, possibly causing
injury to the patient or operator and/or damage to the cot.
www.stryker.com
Operation Guide
6506-109-005 REV F

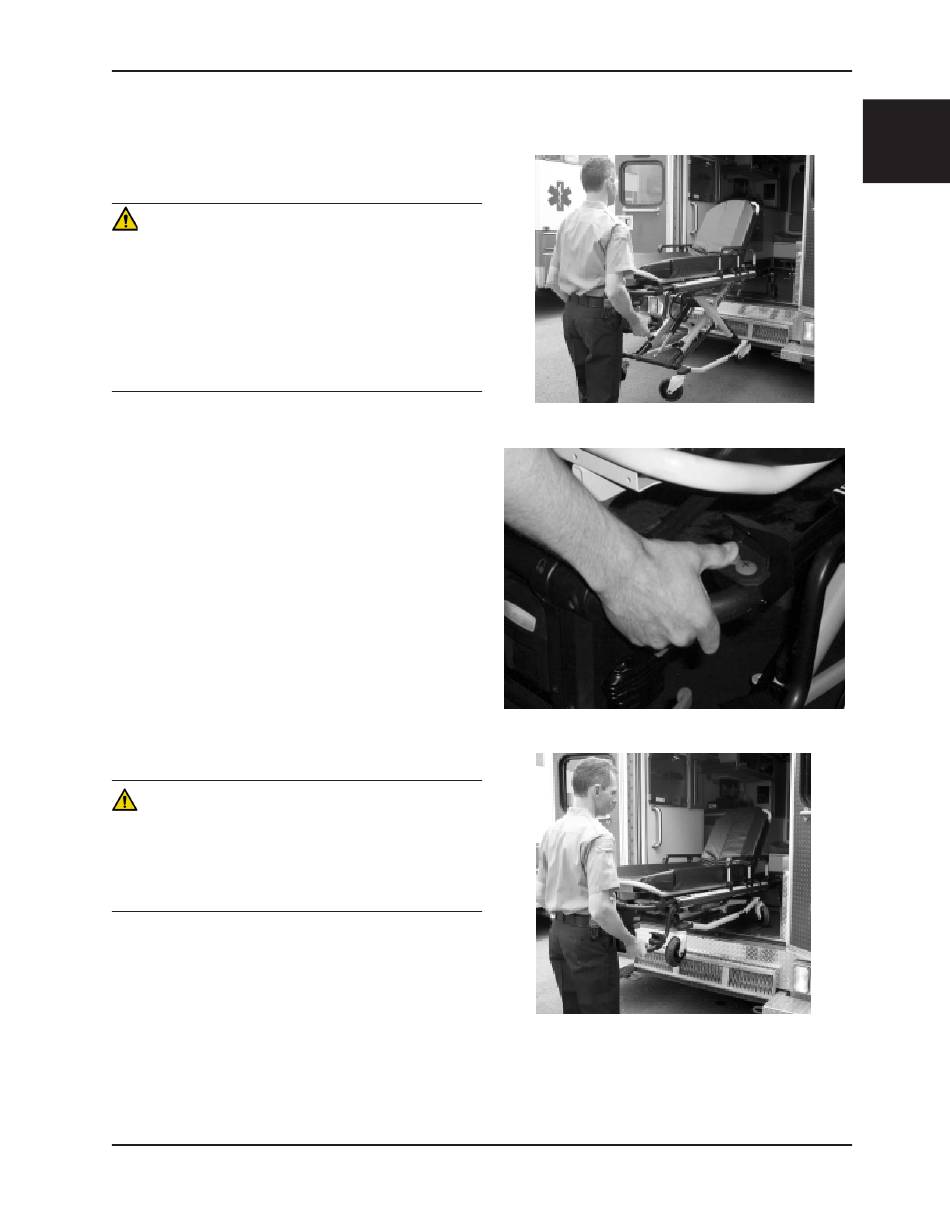

Figure 27
Figure 28
Figure 29
