STEER-LOCK MECHANISM ADJUSTMENT

English

Tools Required:

• 9/16" Combination Wrench
Procedure:
If your steer-lock mechanism will not engage:
• Using a 9/16" combination wrench, adjust the barrel nuts

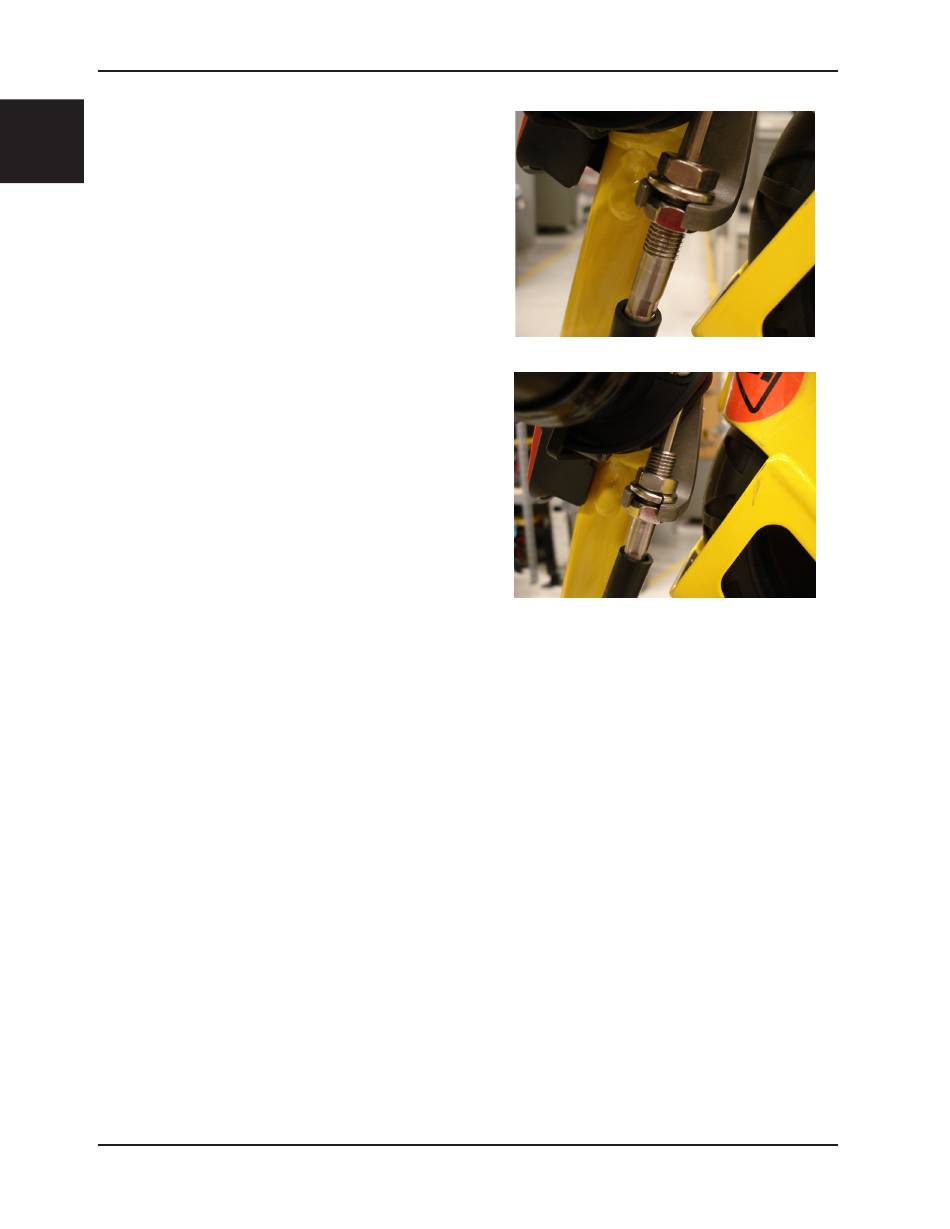

toward the foot end of the cot (Figure 104).
Note: After adjustment, make sure that a minimum of
one full thread is exposed on each side of the barrel nut.
If your steer-lock mechanism will not disengage:
• Using a 9/16" combination wrench, adjust the barrel nuts
toward the head end of the cot (Figure 105).
Note: After adjustment, make sure that a minimum of
one full thread is exposed on each side of the barrel nut.
