RAISING AND LOWERING THE OPTIONAL KNEE GATCH

English
To raise the knee gatch (see Figure 56):
1. Lift either of the red lifting loops (A) until the knee gatch is in its fully raised position.
2. Slowly lower the knee gatch to allow the support bracket to engage in the locking mechanism.
3. Check to be sure the lock is fully engaged before releasing the lifting loop.
To lower the knee gatch:
1. Lift either of the red lifting loops to relieve pressure on the locking mechanism and while holding the loop, push on
the red release handle (B) until the bracket disengages.
2. Carefully lower the knee gatch to the flat position.
To raise the knee gatch in trend (see Figure 56):
1. Lift the foot rest frame (C) as high as possible until it locks into place.
2. The support bracket engages automatically when released.
To lower the knee gatch in trend:
1. Lift the foot rest frame (C) and, while holding the frame, lift up on the release handle (B) until the bracket
disengages.
2. Carefully lower the footrest until it rests flat.
Return To Table of Contents
1-54
Operation Guide

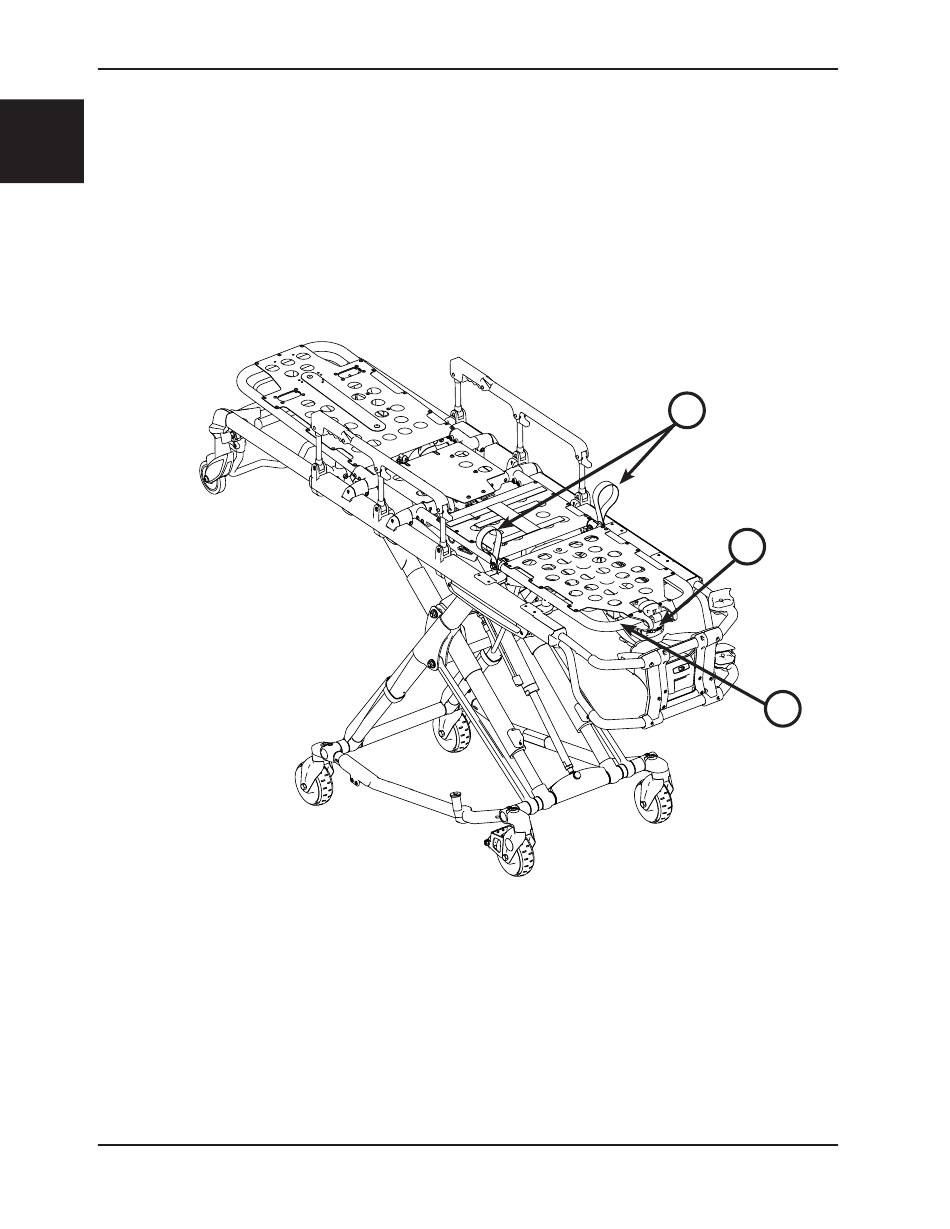

Figure 56
