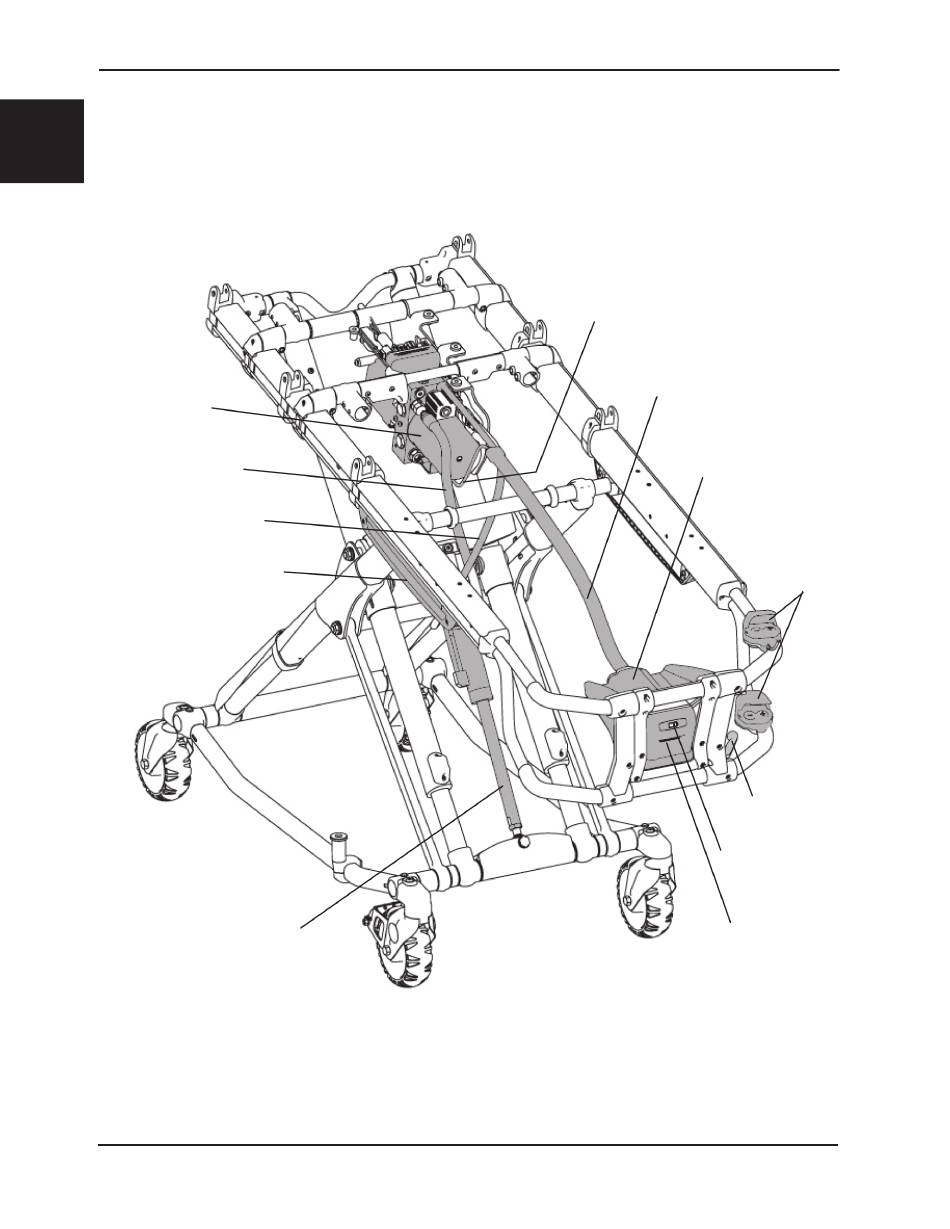

ELECTRONICS AND HYDRAULICS LOCATOR
English
Note: Some components have been removed for clarity.
Hydraulic Manifold
Assembly
Cap-Side Hydraulic Hose
Rod-Side Hydraulic Hose
Sensor Housing
(Hall Effects Sensor Inside)
Hydraulic Cylinder
Return To Table of Contents
1-86

Troubleshooting Guide

Figure 93
6506-109-005 REV F
Manual Release Cable
Main Cable
Electronics Housing
(Control Board Inside)
Switches
Manual Back-up
Release Handle
Power Indicator
LED
LCD Screen
