HEADSECTION REPLACEMENT

English
Tools Required:
• 7/16" Combination Wrench
• 3/16" Hex Wrench
Procedure:
1. Raise the cot and the backrest to the full upright
position.
2. Using a 7/16" combination wrench and a 3/16" hex
wrench, remove the two screws (A) that secure the
cap bearings to the base litter interface bracket
(one on each side) (Figure 99).
3. Squeeze the head release handles and slowly
remove the head section assembly.
4. Reverse steps to reinstall.
5. Verify proper operation of the unit before returning
it to service.

BACKREST GAS CYLINDER REPLACEMENT

Tools Required:
• 3/32" Hex Wrench
• Slotted Screwdriver
Procedure:
1. Raise the cot and the backrest to the full upright
position.
2. Using a 3/32" hex wrench, loosen the set screw (A)
that holds the gas shaft to the yoke (Figure 100).
3. Using a slotted screwdriver, remove the e-clip from
the clevis pin that secures the bottom of the gas
cylinder.
4. Unscrew the gas cylinder shaft from the yoke.
5. Reverse the above procedures to install the new
gas cylinder. See "Backrest Adjustment" on
1-99.
6. Verify proper operation of the unit before returning
it to service.
Return To Table of Contents
1-100
Service Information
A
page
6506-109-005 REV F
A

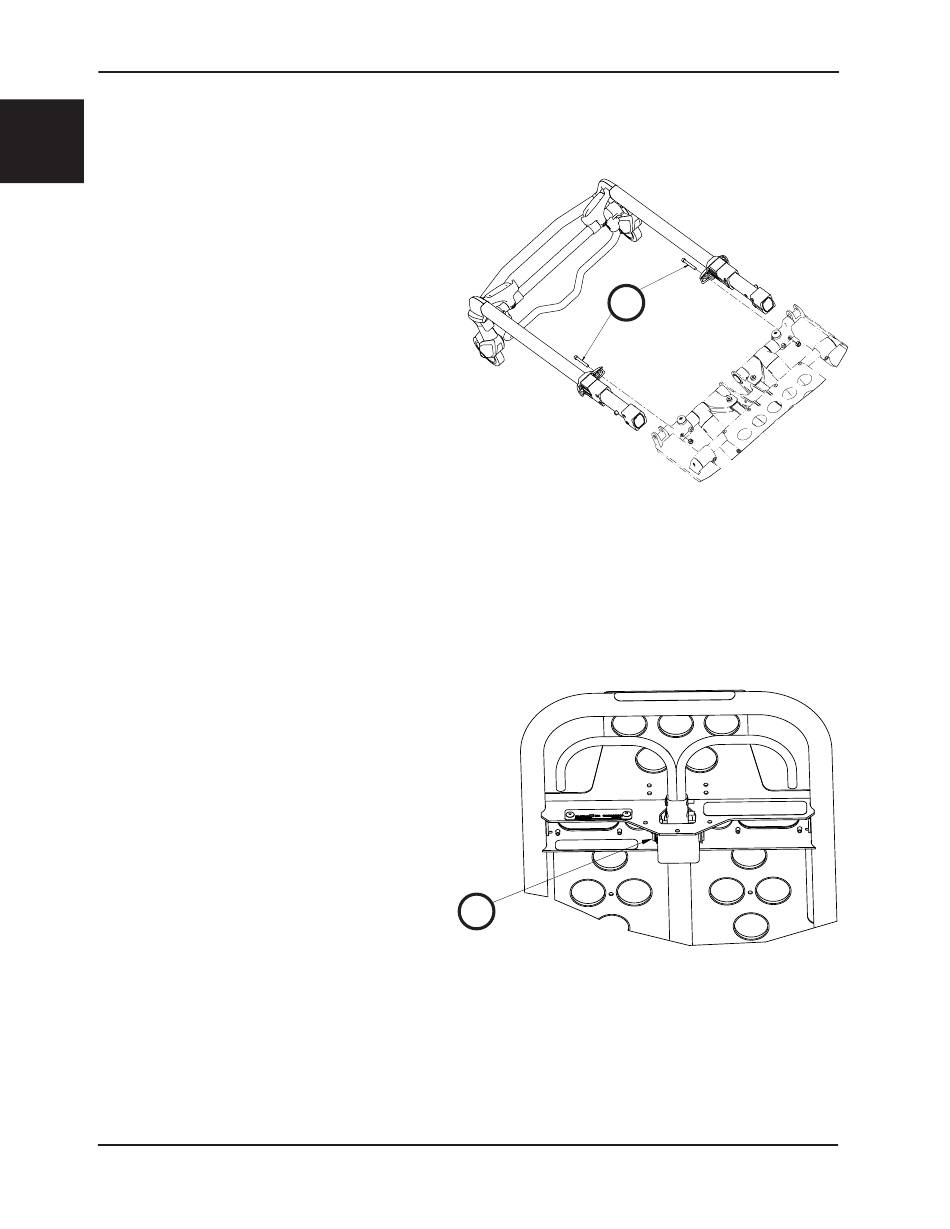

Figure 99
