Note: These installation instructions are intended for cots that you will NOT use with Power-LOAD. For Model 6506
cots with the Power-LOAD option, see the Power-LOAD Operations/Maintenance Manual for installation instructions.

SIDE TO SIDE POSITIONING OF THE SAFETY HOOK

1. Remove the cot from the fastener and unload it from the vehicle.
2. While the cot is being removed, note the position of the load wheels and the safety bar.
3. Mark the center of the cot safety bar on the vehicle floor.
4. Verify that the position marked in Step 3 is where the safety bar engages the safety hook every time when
unloading the cot in a variety of positions (all the way to the left and all the way to the right), regardless of cot
position.
• If the cot safety bar does not engage the safety hook in any of these positions (left, center, or right), modify
the vehicle, not the cot or safety hook.
• If the cot safety bar engages the safety hook every time, install the safety hook.

INSTALLING THE SAFETY HOOK

1. Determine the correct safety hook front to back and side to side positioning, so the cot safety bar engages the
safety hook every time.
2. Drill the holes for the screws.
3. Fasten the safety hook to the patient compartment floor and verify that the safety hook always engages the cot
safety bar regardless of how the cot is unloaded from the vehicle.
WARNING
• Verify that the safety hook always engages the cot safety bar regardless of how the cot is unloaded from the ve-
hicle or injury to the patient or operator and/or damage to the cot may occur.
• The cot must have at least 5/8" of clearance between the vehicle bumper and the cot to disengage the safety bar
when unloading the cot from the vehicle. Verify that the cot legs lock into the load position before disengaging the
safety bar from the safety hook. Failure to properly lock the cot height into position can cause injury to the patient
or operator and/or damage to the cot.

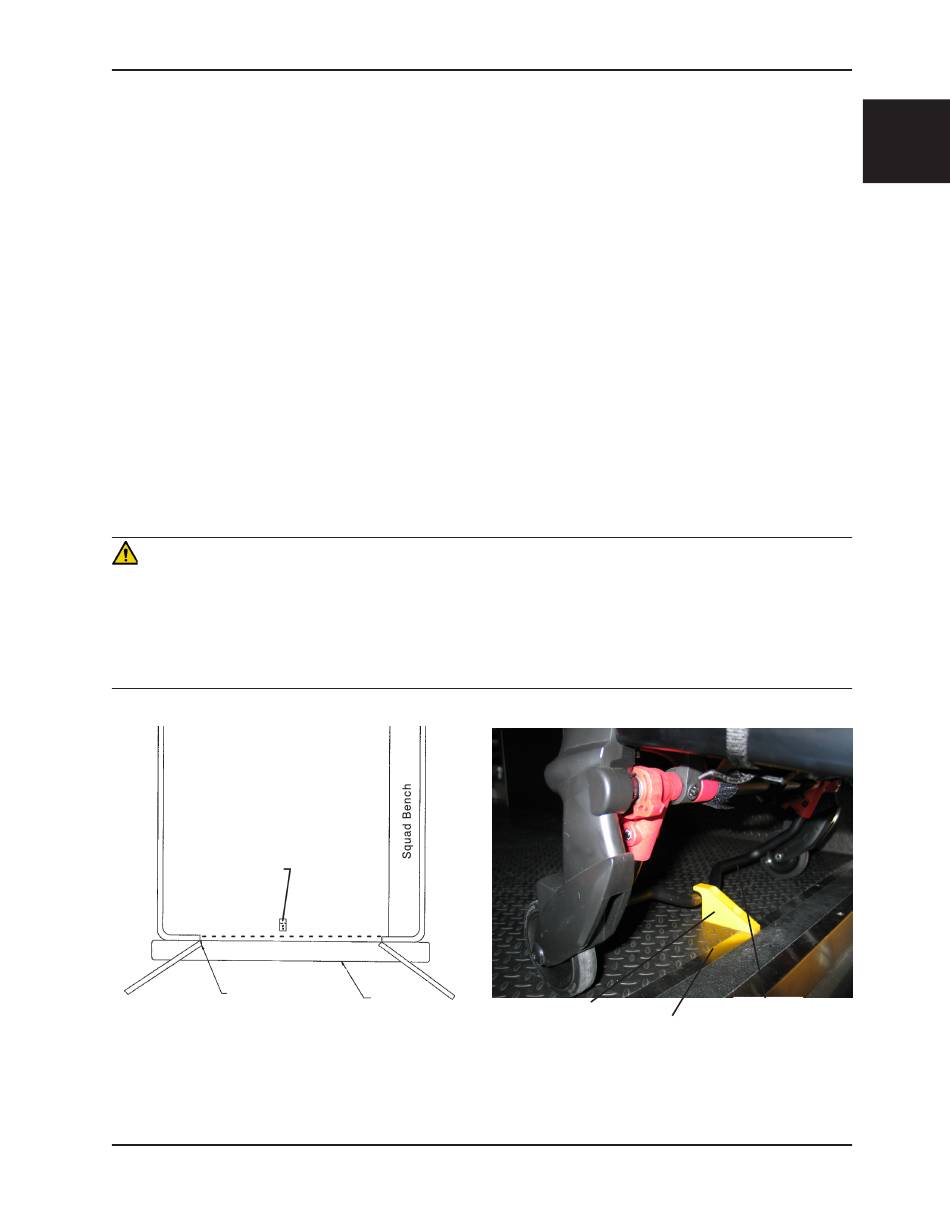

Top View of Vehicle
Safety Hook
Door Frame
Figure 17
www.stryker.com
Vehicle Safety Hook Installation
Bumper
6506-109-005 REV F
Safety Hook
Floor Edge
Figure 18
Return To Table of Contents
English
Safety Bar
1-29
