SIDERAIL ASSEMBLY REPLACEMENT (XPS OPTION)

Tools Required:
• T25 Torx Driver
• 1/4" Hex Wrench
• 3/16" Hex Wrench
• Slotted Screwdriver
• Deadblow Hammer
• Torque Wrench (ft-lb)
Procedure:
1. Raise the cot and the fowler to the full upright position.
2. Remove the mattress.

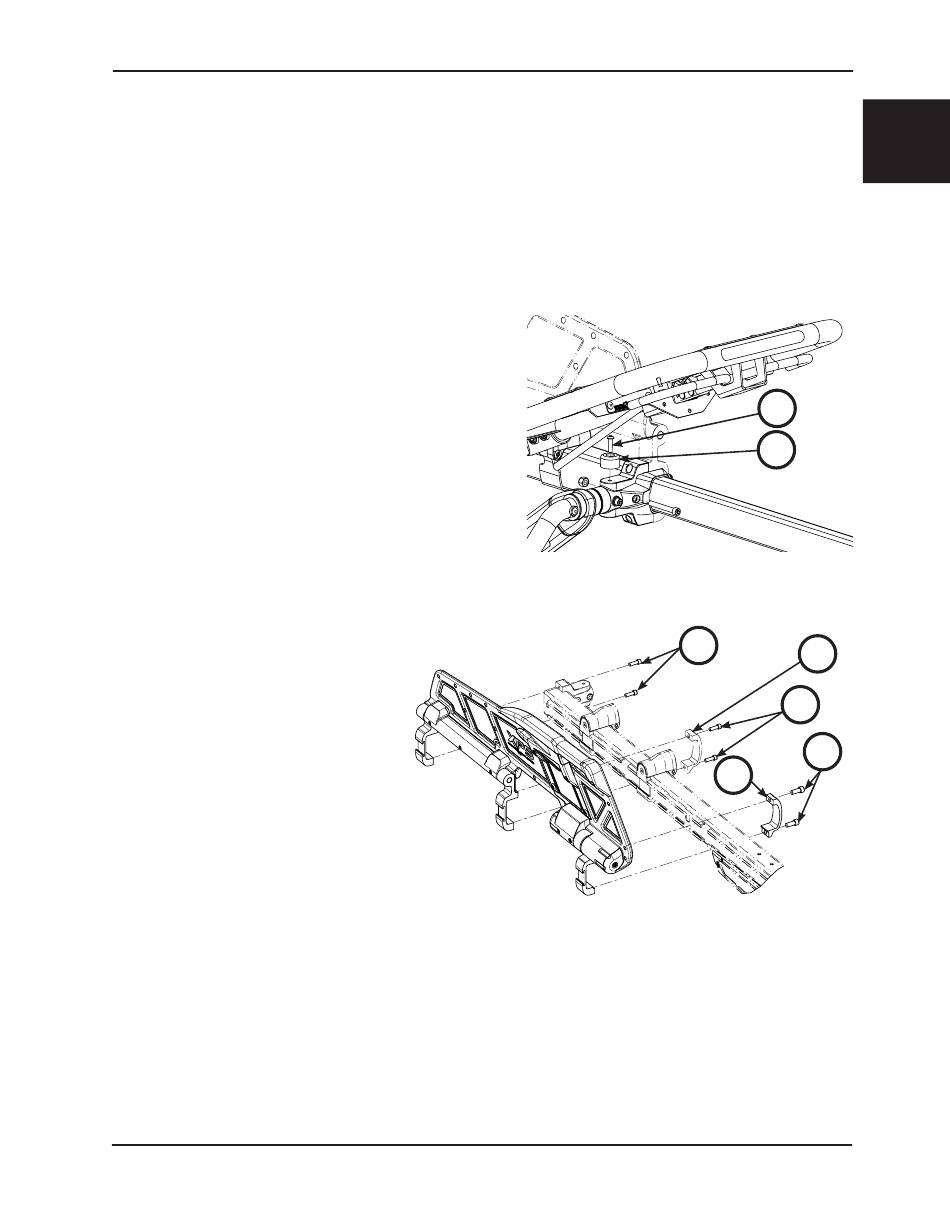

3. Using a T25 Torx driver, remove the button head cap
screw (A) and black bumper (B) on the side where you are
replacing the siderail (Figure 118). Save the screw and
bumper for reinstallation.
4. Using a slotted screwdriver, remove the outer rail bumper.
Note: When removing the outer rail bumper, hold on to the
siderail main assembly, so it does not fall off. Also, note
that the head end and middle siderail pivots may be loose
and could fall off of the main assembly.
5. Using a 1/4" hex wrench, remove the socket head cap
screws (C) that secure the siderail clamp
(D) to the ratchet assembly at the foot end
of the main assembly (Figure 119). During
installation, torque both new screws to 22
± 3.3 ft-lb.
Note: The siderail will be loose, so do
not operate or pull on the siderail.
6. Using a 3/16" hex wrench, remove the two
socket head cap screws (E) that secure
the middle siderail clamp (F) to the outer
rail assembly (Figure 119).
7. Using a 3/16" hex wrench, remove the
two socket head cap screws (G) that
secure the top and bottom of the base/
litter interface bracket to the outer rail
assembly (Figure 119).
8. Reverse steps to reinstall. Use a deadblow
hammer to reinstall the outer rail bumper.
9. Verify proper operation of the unit before returning it to service.
