FILLING THE HYDRAULICS ASSEMBLY RESERVOIR

English
Use only Mobil Mercon
Note: Any time you work with the hydraulics you may lose some oil.
Tools Required:
• 3/16" Hex Wrench
Procedure:
1. Raise the cot to the full up position.
2. Ensure that the fill port is horizontal and lined up with the hole in the motor mount.

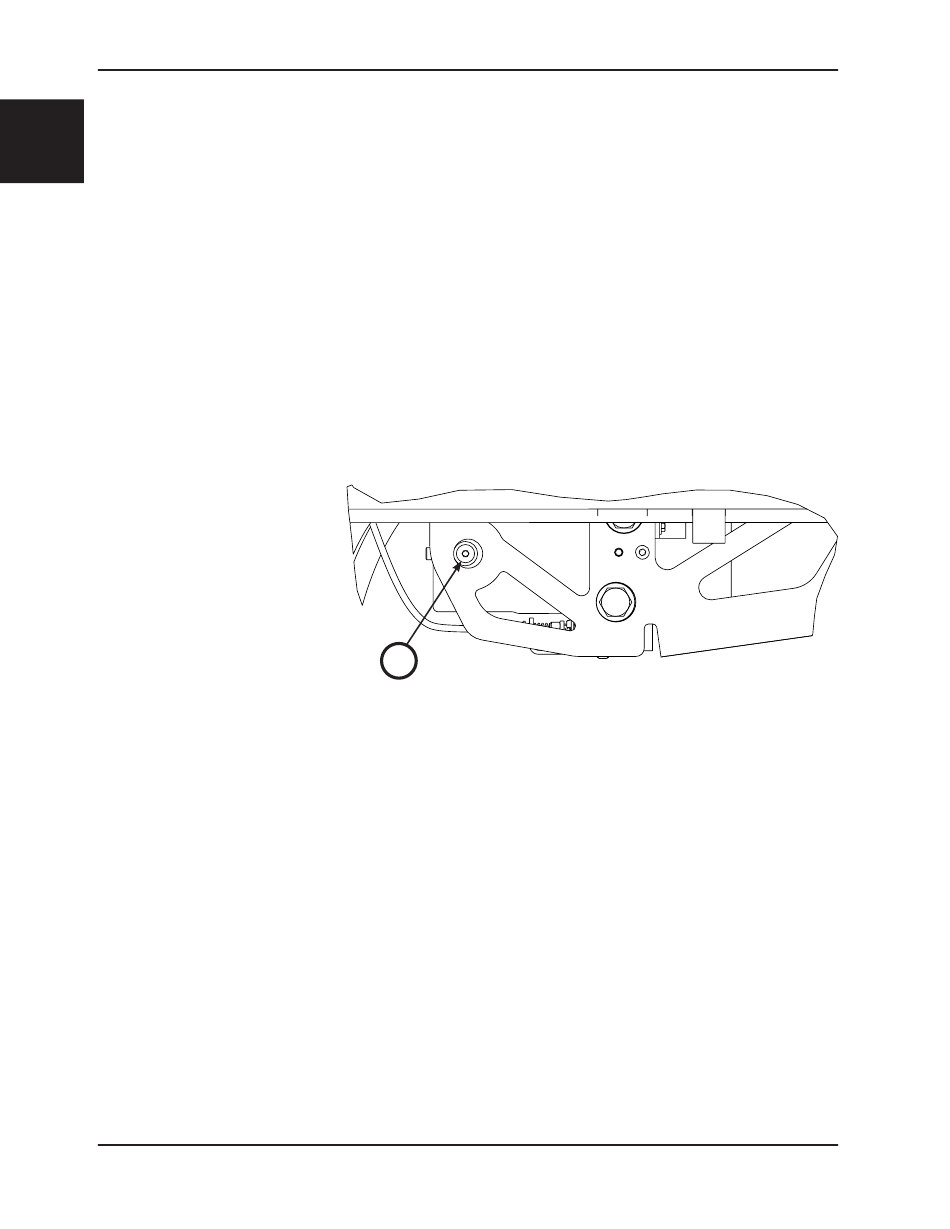

3. Remove the port plug (A) using a 3/16" hex wrench (Figure 102).
4. Fill the reservoir up to the bottom of the fill port.
5. Replace the plug and run the cot up and down a few times.
6. Verify proper operation of the unit before returning it to service.
Return To Table of Contents
1-102
Service Information
V Synthetic Blend Oil (6500-001-293)
®
A
6506-109-005 REV F
Figure 102
