OPERATING THE OPTIONAL THREE-STAGE I.V. POLE

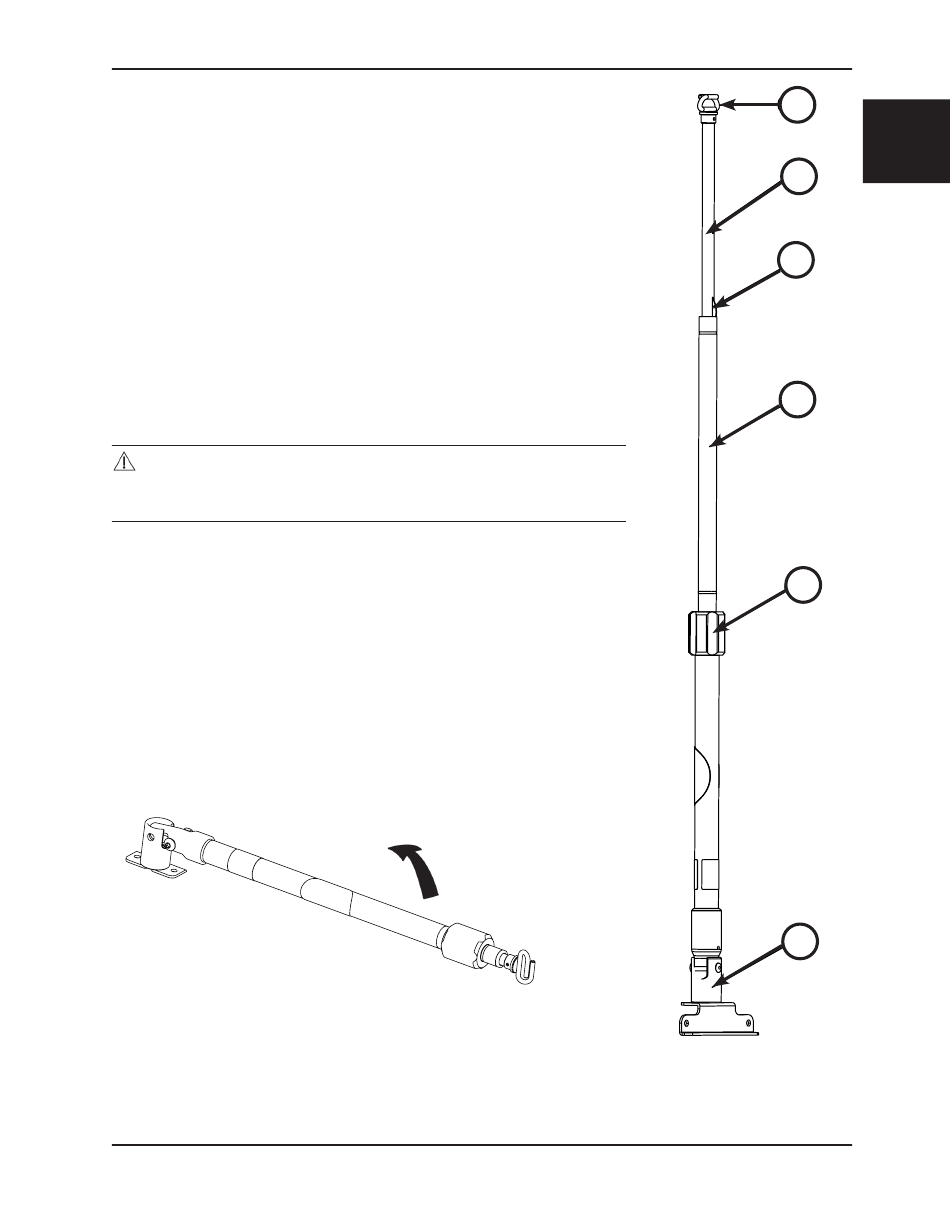

To use the three-stage I.V. pole (see Figure 89):
1. Lift and pivot the pole from the storage position and push down until it is
locked into the receptacle (A).
2. To raise the height of the pole, turn the lock actuator (B) counterclockwise
and pull up on the bottom telescoping portion (C) of the pole to raise it to the
desired height.
3. Turn the lock actuator (B) clockwise to lock the bottom telescoping portion
in place.
4. For a higher I.V. pole, pull up on section (D) until the spring clip (E) engages.
5. Hang I.V. bags on the I.V. hook (F).
6. To lower the I.V. pole, push in on the spring clip (E) and slide section (D) down
into section (C). Turn the lock actuator (B) counterclockwise and slide section
(C) into the bottom tube.
7. Turn the lock actuator (B) clockwise to tighten.
8. Lift up and pivot the pole down into the storage position (Figure 88).
CAUTION
To avoid damage to the I.V. pole, the weight of the I.V. bags or equipment must not
exceed 25 lb (11.3 kg).
Note: The dual three-stage I.V. poles (6500-317-000) are not compatible with
either the patient right (6500-315-000) or patient left (6500-316-000) two-stage
I.V. pole options.
