Setting the control functions
Control mode
Sec. feed temperature...
Return ΔT
Multi-Flow Adaptation
Volume flow Q-c
Hydraulic shunt

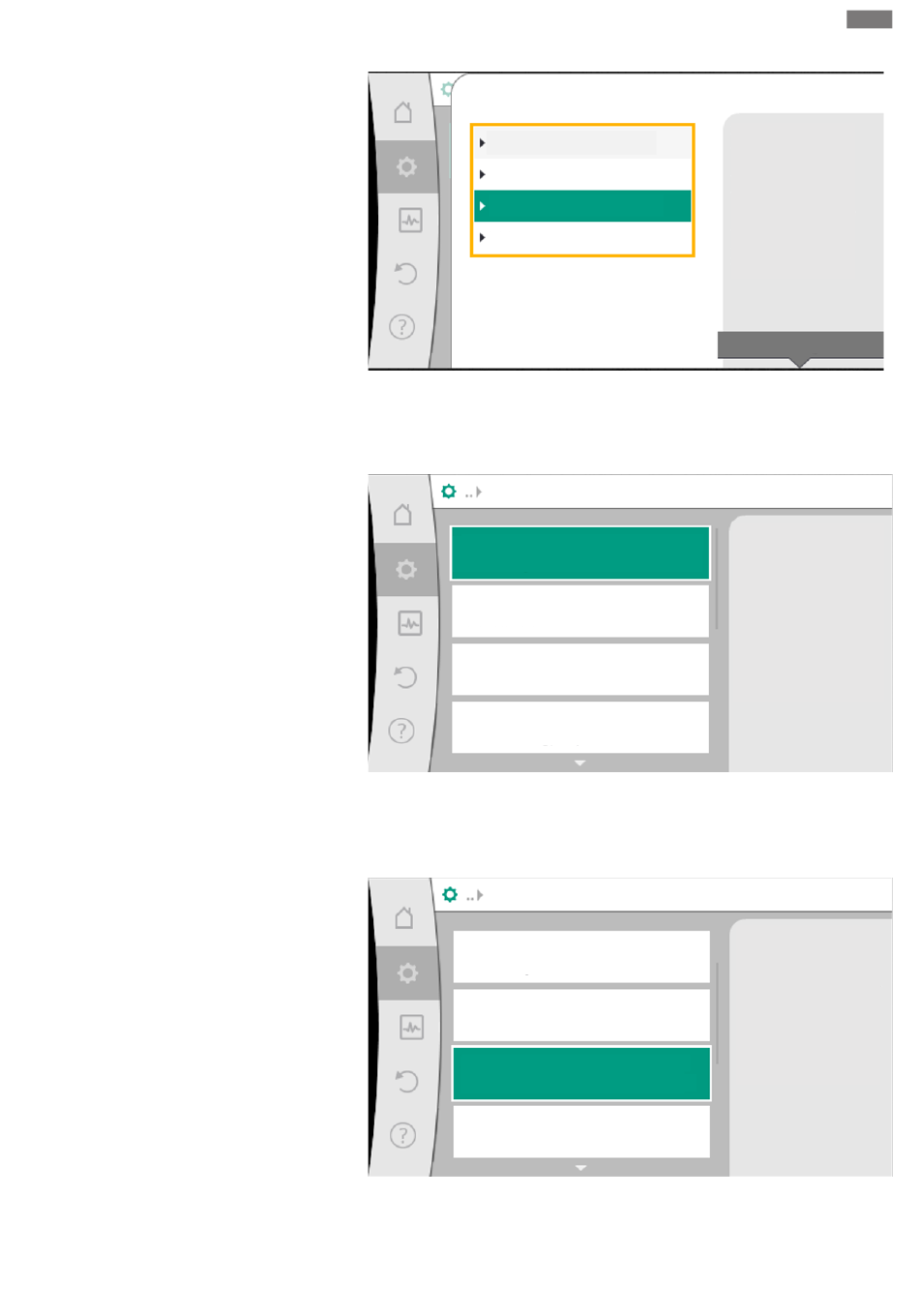

Fig. 55: Example "Multi-Flow Adaptation" control mode
Select the "Multi-Flow Adaptation" control mode by turning the operating button and
press to confirm.
When the selection is confirmed, "Setting assistant" will be displayed in the menu.
Set control mode
Setting assistant
Current: hydraulic shunt – Multi...
Feeder pump correction factor
Current: 50 %
Selection of secondary pumps
Number of secondary pumps: 0
Multi-Flow Adaptation Overview
Number of consumer circuit pumps: 0
Fig. 56: Set control mode
Additional settings must be made.
Select secondary pumps that have to be supplied downstream of the hydraulic shunt
and connect them to Wilo Net.
Set control mode
Setting assistant
Current: hydraulic shunt – Multi...
feeder pump correction factor
Current: 50 %
Selection of secondary pumps
Number of secondary pumps: 0
Multi-Flow Adaptation Overview
Number of consumer circuit pumps: 0
Fig. 57: Setting assistant – Selection of secondary pumps
en
Feeder pump
determines the
required
volume flow to
supply the
hydraulic shunt
from measured values of the
allocated
secondary pumps.
Settings help
Select a control mode via the
application and
system type.
All control modes
are also available to be selected
directly.
Selecting of
secondary pumps which are used
for measuring the
volume flow in Multi-
Flow Adaptation
.
