10.3.9 Status area and status displays
184
Commissioning
Press the operating button to check set parameters and switch between them. In
this process, existing parameters are once again confirmed, but not changed.
Select type of use
Analogue input (AI2)
Not configured
Setpoint controller
Differential pressure sensor
Temperature sensor
External sensor

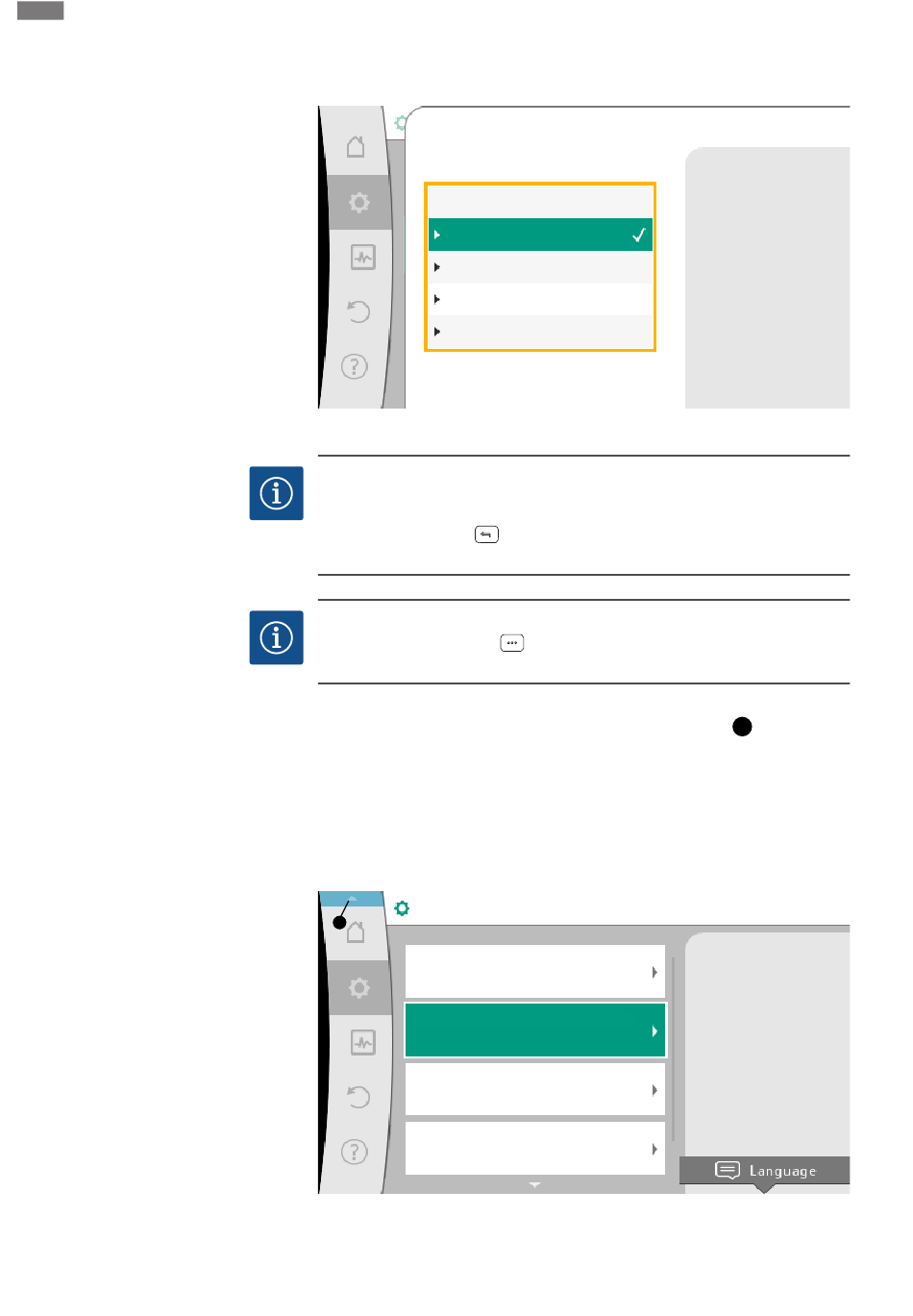

Fig. 35: Settings dialogue
NOTICE
Press the operating button without selecting another parameter or adjusting an-
other value to confirm the setting.
Press the "Back" button
ous setting. The menu changes to the previous setting or previous menu.
NOTICE
Pressing the context button
further settings.
The status area is located on the left side above the main menu area
"Home screen" [} 182] figure and table).
If a status is active, it is possible to display and select status menu items in the main
menu.
Turn the operating button to the status area to show the active status.
If an active process (e.g. software update) is quit or discarded, the status display is hid-
den again.
Settings
1.1
Set auto control
Settings assistant, setpoints, options
Manual operation
Manual override
Double pump operation
Set double pump
External interfaces
Analogue, digital, SSM, SBM
Fig. 36: Main menu status display
to discard the current adjustment and retain the previ-
will display additional context-related options for
Set analogue input
as setpoint controller,
e.g. for delivery head
1.1
(see also
Overriding
auto control via
manual intervention.
