Installation and operating instructions Wilo-Stratos GIGA2.0-I, Wilo-Stratos GIGA2.0-D
Communication interfaces: Setting and function
Minimum signal/value assignment
Analogue input (AI2)
Signal value
Corresponding value

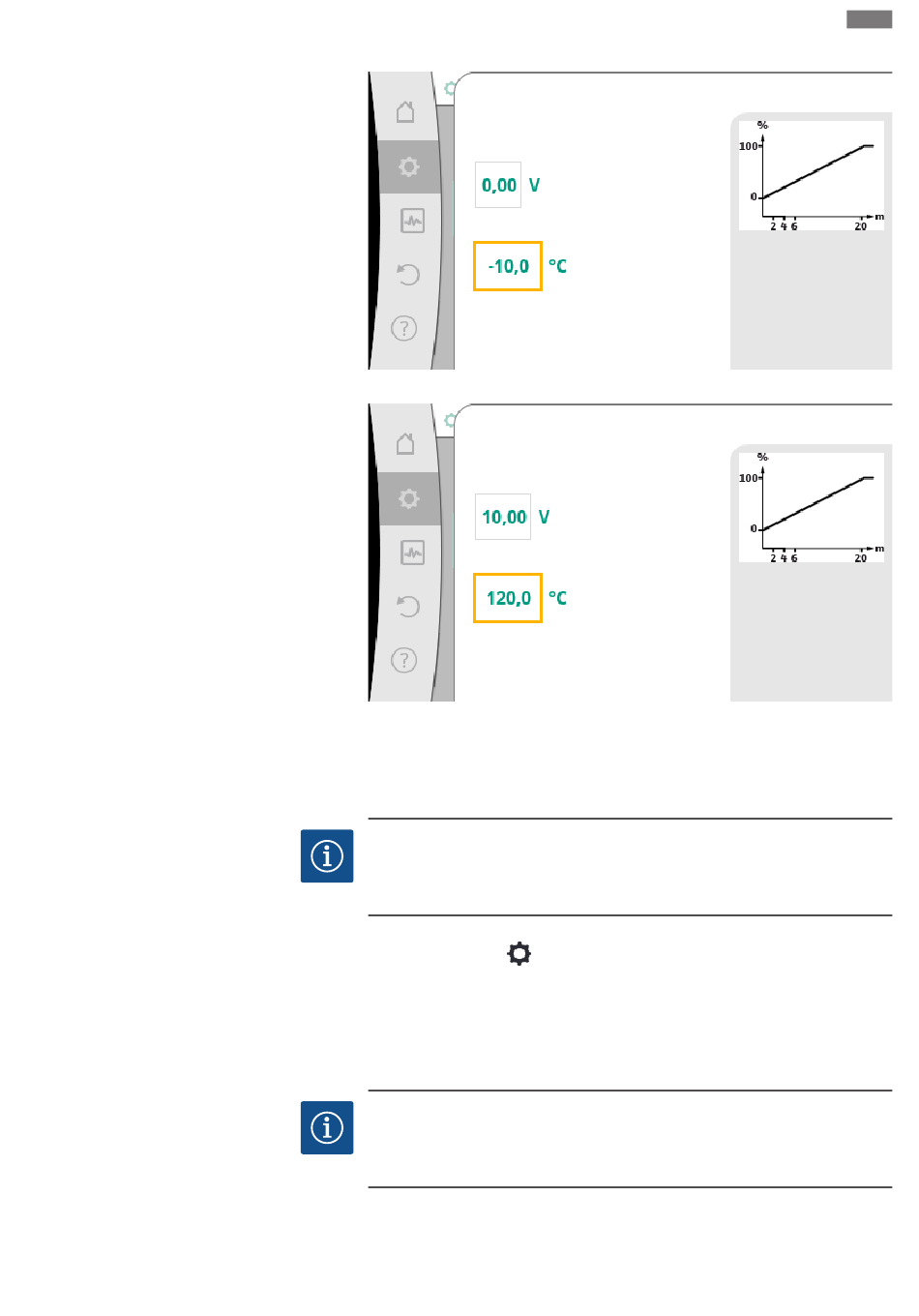

Fig. 85: Minimum signal/value assignment, actual value sensor
Max. signal/value assignment
Analogue input (AI2)
Signal value
Corresponding value
Fig. 86: Maximum signal/value assignment, actual value sensor
Data input is complete, once the minimum and maximum characteristic curve support
points have been entered.
NOTICE
If the signal type PT1000 has been selected, it's possible to set a temperature cor-
rection value for the measured temperature. With this the electrical resistance of a
long sensor cable can be compensated.
In the "Settings" menu , select
1. "External interfaces"
2. "Function analogue input AI1" ... "Function analogue input AI4"
3. "Temperature correction" and set correction value (offset).
NOTICE
Optionally specify the position of the sensor for better understanding of the con-
nected sensor's function.
This configured position does not influence the function or sensor use.
en
Set minimum point
of actual value
pump curve for
temperature sensor.
Set maximum point
of actual value
pump curve for
temperature sensor.
