Setting the control functions
System types for cooling application
‣ Hydraulic shunt
‣ Differential pressure-less distributor
‣ Buffer cooling
‣ Heat exchanger
‣ Re-cooling circuit
‣ District cooling circuit
‣ Basic control modes
Table 23: Selection of system type and control mode for "Cooling" application
Every control mode, with the exception of speed n-const, additionally requires the se-
lection of the actual value or sensor source (analogue input AI1 ... AI4).
NOTICE
Control mode temperature ΔT-const.
In the pre-defined applications, the signs and setting ranges for the setpoint tem-
perature (ΔT-c) are pre-set to match the application and thus the effect on the
pump (increase or reduction in speed) is pre-set.
When setting via "Basic control mode", the sign and setting range must be con-
figured according to the desired effect.
Sensor source T1
Analogue input 1
Analogue input 2
Analogue input 3
Analogue input 4
CIF module

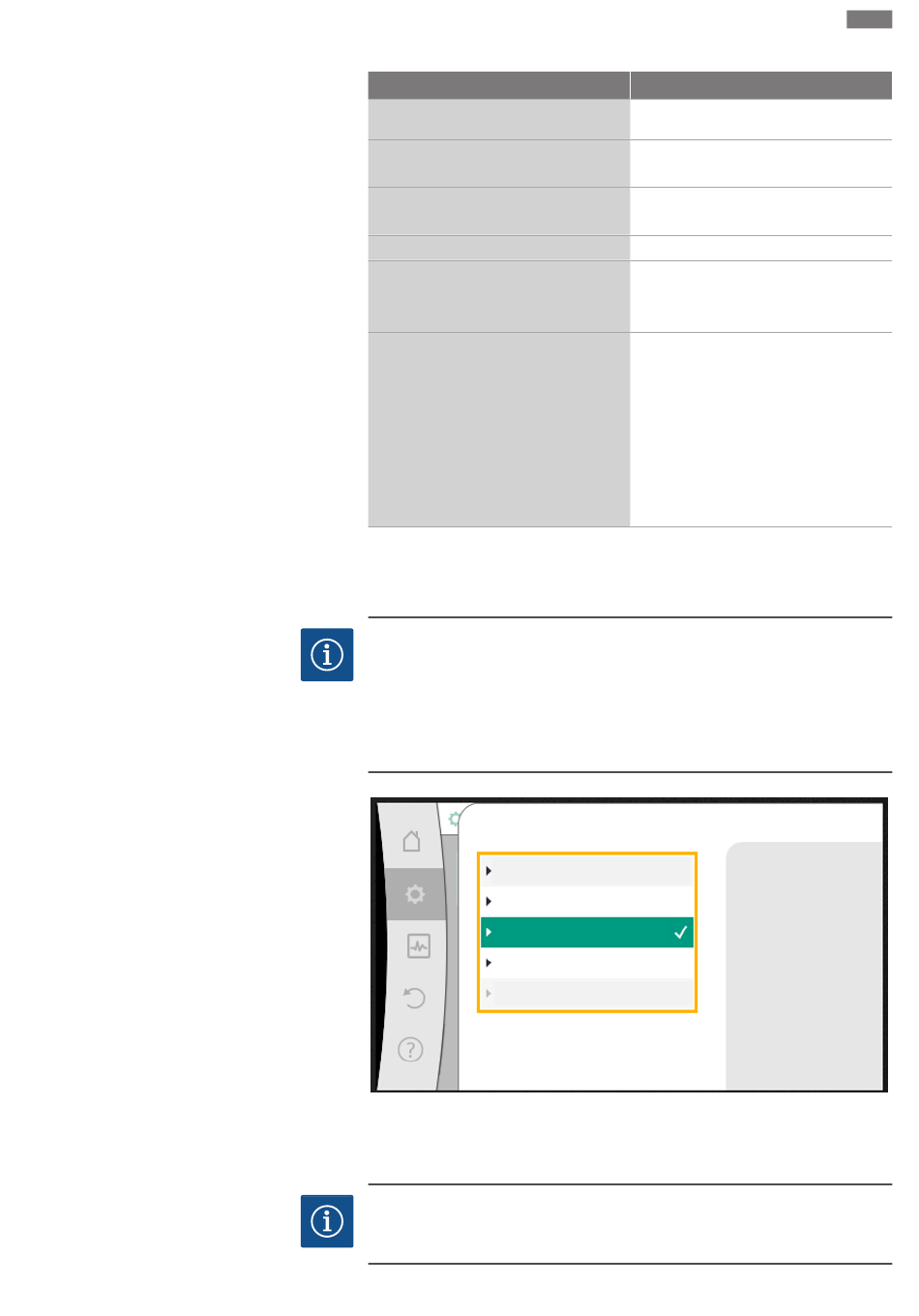

Fig. 46: Assignment of sensor source
If the selection is made, the sub-menu "Setting assistant" will appear with the display
of selected system type and control mode.
NOTICE
The menu "Heating/cooling switchover" for further adjustments is available only if
all settings have been made for "Heating & Cooling" application.
Control mode
Feed temperature T-const.
Return ΔT
Multi-Flow Adaptation
Volume flow cQ
Feed temperature T-const
Feed ΔT
Volume flow cQ
Differential pressure Δp-c
Differential pressure Δp-v
Index circuit Δp-c
Differential pressure Δp-c
Differential pressure Δp-v
Index circuit Δp-c
Dynamic Adapt plus
Volume flow cQ
Temperature T-const
Temperature ΔT-const.
Speed n-const.
For the
temperature
control mode,
analogue input (AI3) is used for
the temperature sensor
.
