en
206
Setting the control functions
Select "Selection of secondary pumps" by turning the operating button and press to
confirm.
Each partner pump has to be selected as secondary pump from the pumps detected by
Wilo Net.
MFA consumer circuit pump selection
End selection
PartnerName_1001
PartnerName_1002
PartnerName_1003
PartnerName_1004
PartnerName_1005

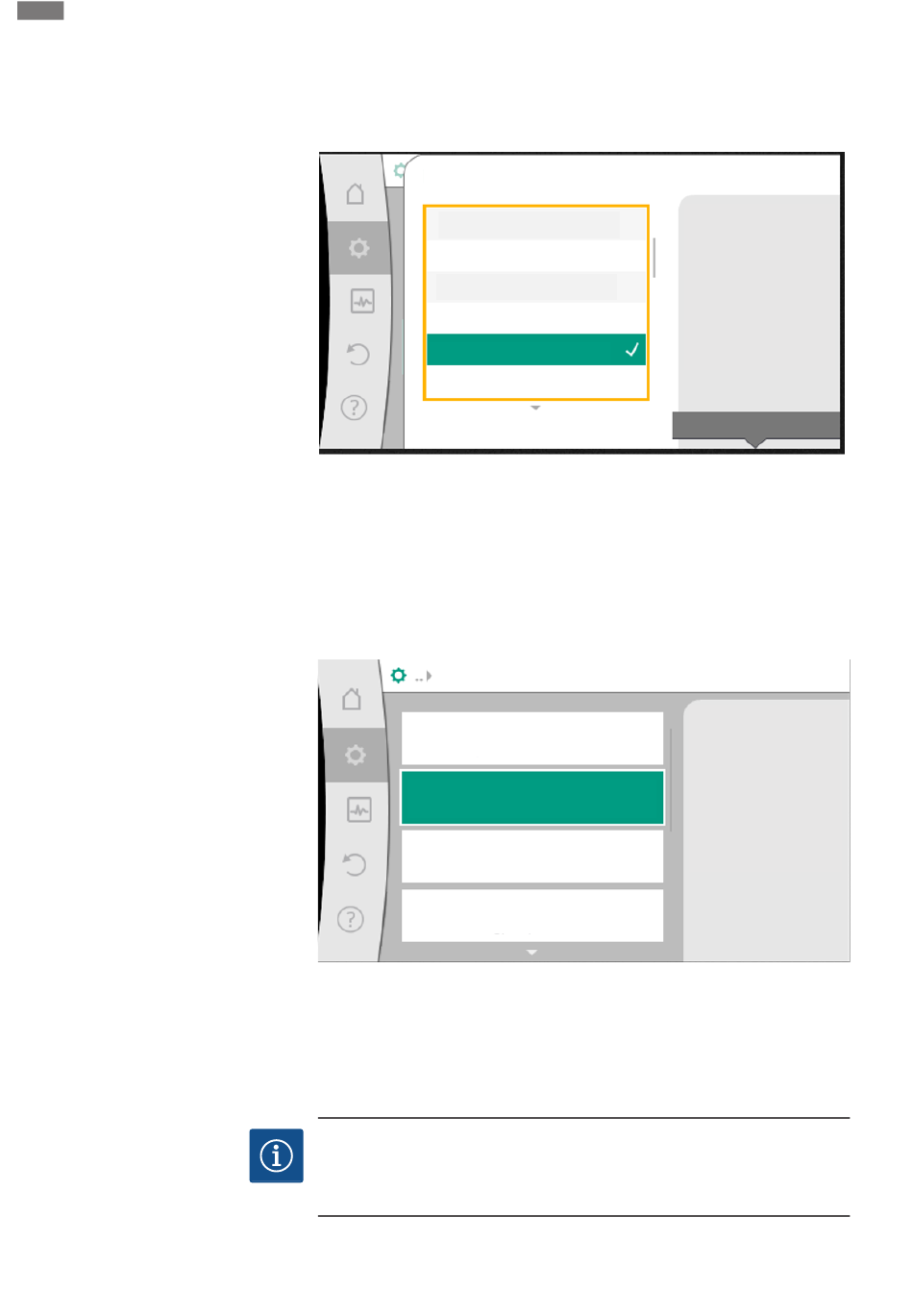

Fig. 58: Selection of secondary pumps for Multi-Flow Adaptation
Select the partner pump by turning the operating button and press to confirm.
When pressed, the white tick appears on the selected pump.
The secondary pump indicates for its part on the display that it has been selected.
All other secondary pumps are selected in the same way. Then press the Back button to
go back to the "Set control mode" menu.
When secondary pumps are installed in a circuit with a mixer, the mixed volume flow
can be taken into account. For this purpose, select and activate the additional control
function Multi-Flow Adaptation mixer.
Set control mode
Volume flow offset
Current: 0.0 m³/h
Multi-Flow Adaptation mixer...
Current: switched off
Substitute value volume flow requirement
Current: max. volume flow requirement
Q-Limit Min
Status: switched off
Fig. 59: Set control mode Multi-Flow Adaptation mixer
To be able to use the function, the temperatures on the feeder pump have to be recor-
ded:
ƒ
in the secondary feed (T1) downstream of the hydraulic shunt
ƒ
in the primary feed (T2) upstream of the hydraulic shunt
For this purpose, connect temperature sensors to the analogue inputs AI3 and AI4.
NOTICE
In order to determine the mixed volume flow, the heat quantity measurement func-
tion with a connected temperature sensor in the secondary feed and secondary re-
turn must always be activated on the secondary pumps with mixer.
This pump signals
the focus.
Type: 25/1-1004
Item no.: 12 1004
NodeID: 954
Serial no.:
341004
Selection menu
Multi-Flow Adaptation
can take mixers in
secondary pumps
into account. For this,
the
heat quantity measurement
must be activated in secondary
pumps
. The
feeder pump must
measure temperatures in
secondary feed
(T1) and
primary feed (T2)
.
