Setting the control functions
Settings menu
PID Inversion
Visible for user-defined PID control.
Pump On/Off
Always visible.
Table 27: Settings menu – Set control mode
Example: "Multi-Flow Adaptation" via "Hydraulic shunt" system type
Example: "Hydraulic shunt" system type
System type
Radiator
Underfloor heating
Ceiling heating
Fan heater
Concrete core heating
Hydraulic shunt

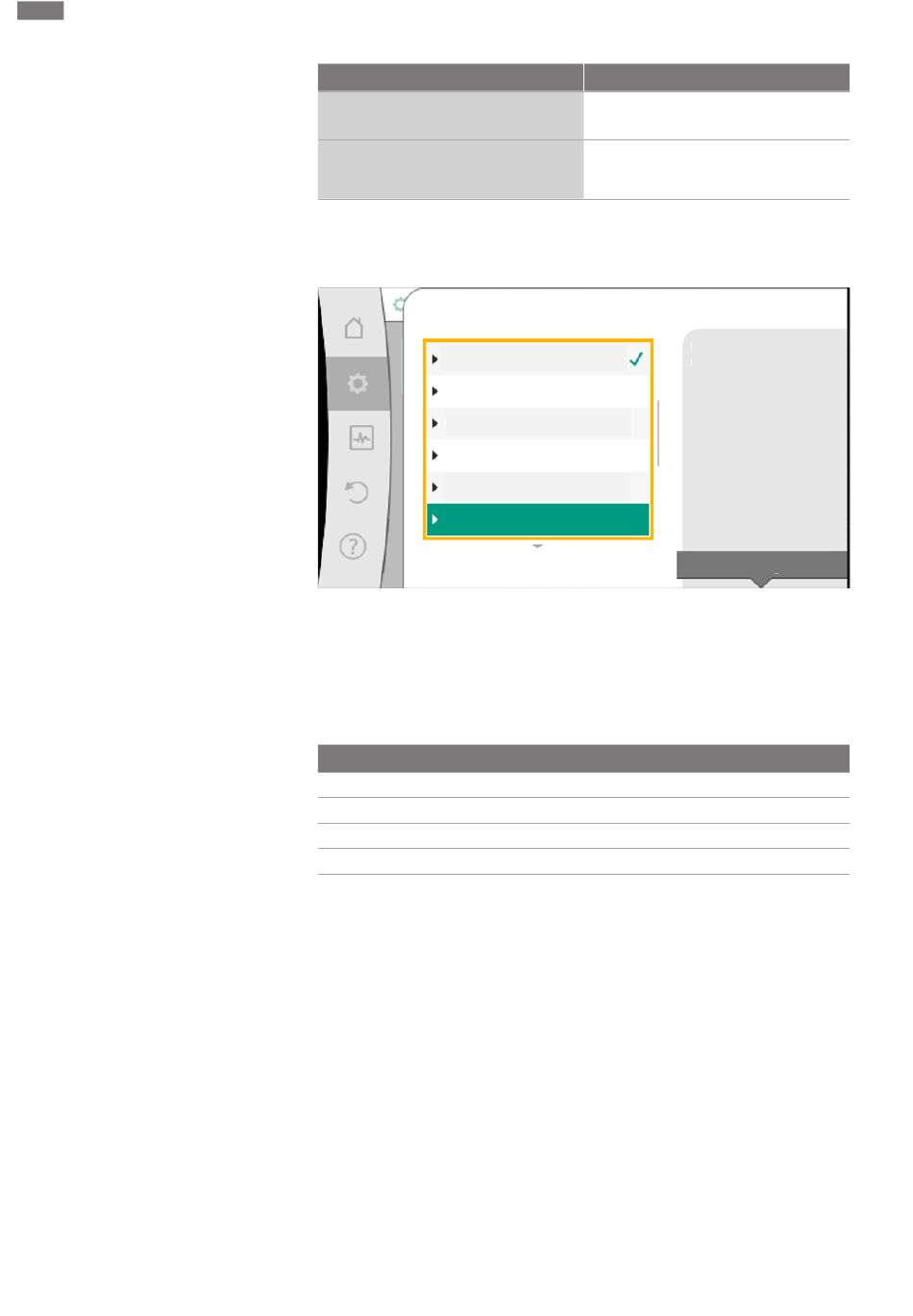

Fig. 54: "Hydraulic shunt" system type
Select the "Hydraulic shunt" system type by turning the operating button and press to
confirm.
Different control modes are available depending on the system type.
For the "Hydraulic shunt" system type in the "Heating" application, the following con-
trol modes are available:
Control mode
‣ Sec. feed temperature T-const.
‣ Return ΔT
‣ Multi-Flow Adaptation
‣ Volume flow Q-const
Table 28: Selection of control mode for Hydraulic shunt system type in the heating ap-
plication
Example: "Multi-Flow Adaptation" control mode
Description
Setting the inversion for the user-defined
PID control.
Switching the pump on/off with low pri-
ority. A MAX, MIN, MANUAL override
switches the pump on.
Pump supplies
hydraulic shunt.
Settings help
