en
192
Setting the control functions
Set control mode
Setting assistant
Current: fan heater – Dynamic Adapt ...
Emergency operation speed
Constant speed: 2000/min
Pump ON/OFF
Current: motor on

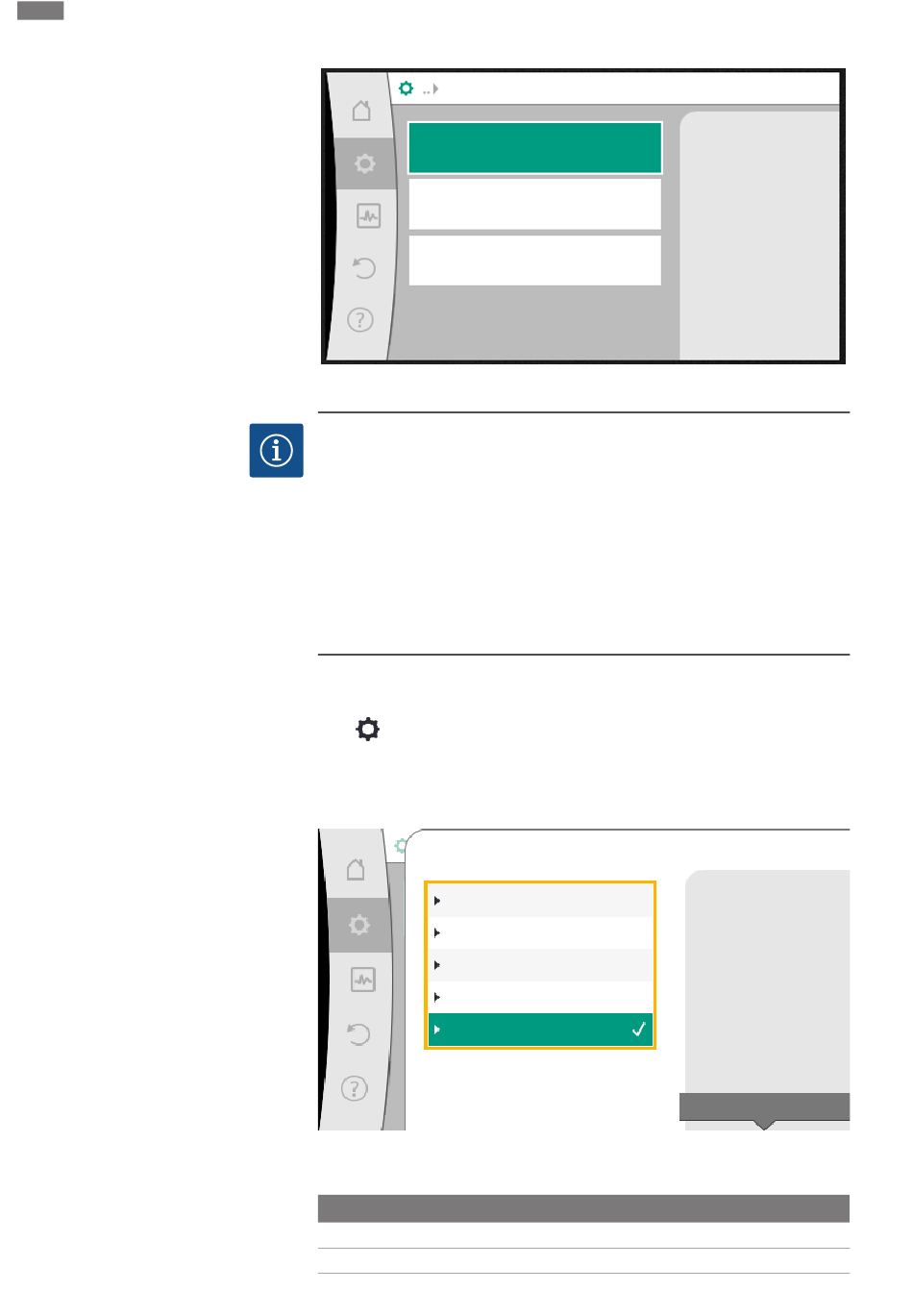

Fig. 43: Setting assistant
NOTICE
The differential pressure sensor of the Stratos GIGA2.0-I/-D is already configured at
the factory to 2 ... 10 V at the analogue input.
No other setting of the analogue input is required for a control mode with differen-
tial pressure (Dynamic Adapt plus, Δp‑v, Δp‑c) and volume flow constant (Q-const).
If the analogue input has not been configured at the factory or if the signal 2 ... 10 V
or 4 ... 20 mA is not recognised, the "Cable break in analogue 1" warning is displayed
For the Stratos GIGA2.0-I/-D... R1, no analogue input is configured at the factory.
The analogue input must be actively configured for every control mode.
If no analogue input is configured for a control mode with differential pressure (Dy-
namic Adapt plus, Δp‑v, Δp‑c) and volume flow constant (Q-const), the warning
"Delivery head/flow unknown" (W657) is displayed.
Direct selection of a basic control mode
In the "Settings" menu, select the following in turn:
1. "Set control mode"
2. "Setting assistant"
3. "Basic control modes"
Application
Heating
Cooling
Heating & cooling
Drinking water
Basic control modes
Fig. 44: Application selection "Basic control modes"
The following basic control modes are available:
Basic control modes
‣ Differential pressure ∆p-c
‣ Differential pressure ∆p-v
Select a control mode via the
application and
system type.
All control modes
are also available to be selected
directly.
Select control modes
directly, no
allocation to an
application.
Settings help
