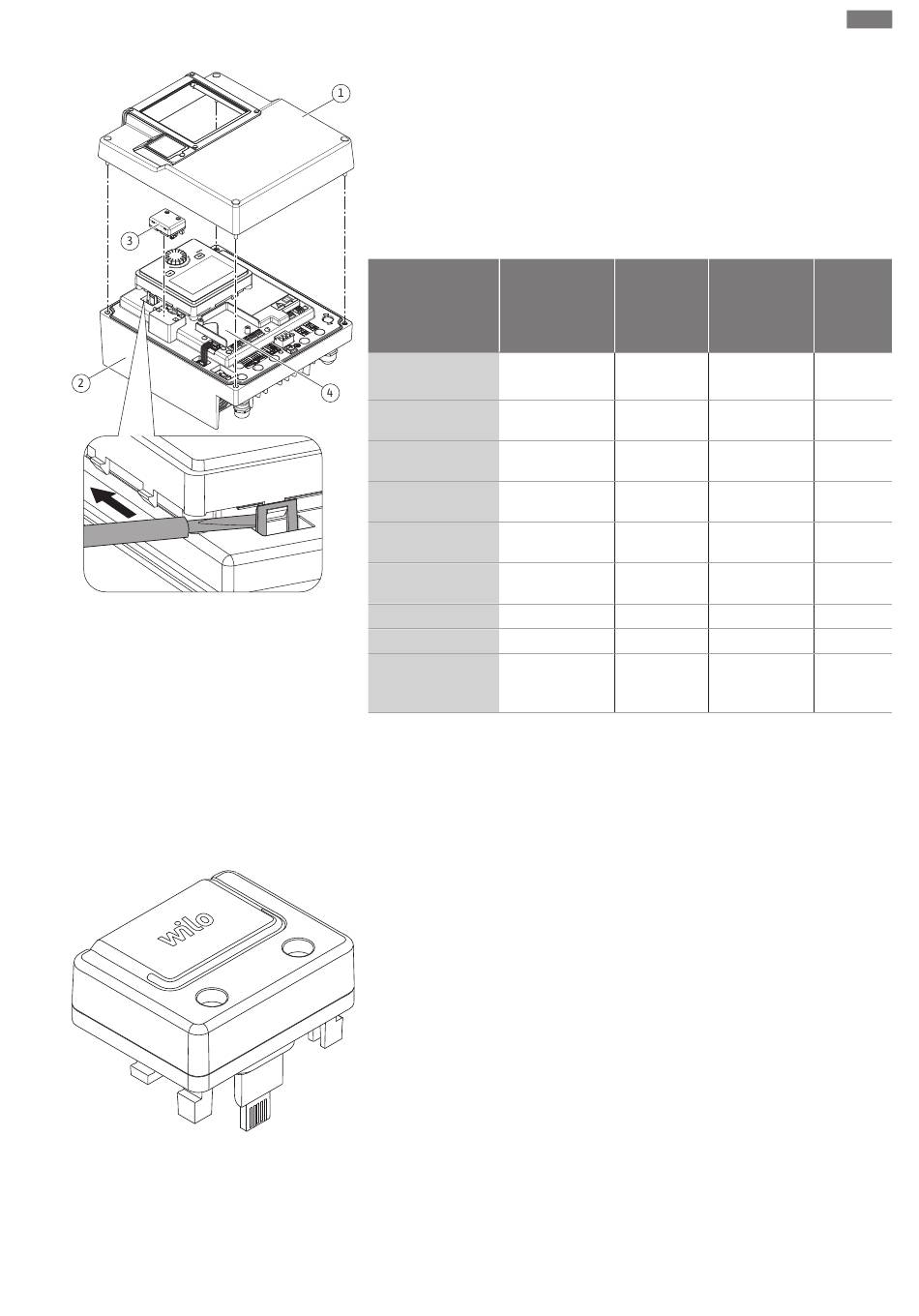

Fig. 25: Electronic module
8 Installation of Wilo-Smart
Connect module BT
Fig. 26: Wilo-Smart Connect Module BT
Installation and operating instructions Wilo-Stratos GIGA2.0-I, Wilo-Stratos GIGA2.0-D

Installation of Wilo-Smart Connect module BT

The graphic display can be turned in 90° steps. To do this, open the upper part of the
electronic module using a screwdriver.
The graphic display is fixed in position by two snap-in hooks.
1. Carefully open the snap-in hooks (Fig. 25) with a tool (e.g. screwdriver).
2. Turn the graphic display to the desired position.
3. Fix the graphic display with the snap-in hooks.
4. Fit the upper part of the module again. Observe the screw tightening torques on
the electronic module.
Component Fig./Item screw
(nut)
Electronic module Fig. 25, Item 1
upper part
Fig. I, Item 2
Threaded cable Fig. 18, Item 1
gland union nut
Threaded cable Fig. 18, Item 1
gland
Threaded cable Fig. 18, Item 6
gland union nut
Threaded cable Fig. 18, Item 6
gland
Power terminals and Fig. 20
control terminals
Earthing screw Fig. 19, Item 5
CIF module Fig. 25, Item 4
Cover Wilo- Fig. 27
Smart Connect
Module BT
Table 14: Tightening torques for electronic module
*Tighten when installing the cables.
**Press with screwdriver to plug and unplug the cable.
The Bluetooth interface Wilo-Smart Connect Module BT (Fig. 25, Item 3, and Fig. 26) is
used to connect to mobile end devices such as smartphones and tablets. Using the
Wilo-Smart Connect app, you can operate and adjust the pump and read out pump
data. For settings, see "Commissioning" [} 176] section.
Technical data
ƒ
Frequency band: 2400 MHz ... 2483.5 MHz
ƒ
Maximum radiated transmission power: < 10 dBm (EIRP)
Thread Tightening
torque
[Nm] ±10 %
(unless other-
wise stated)
M5 4.5
M25 11
M25x1.5 8
M20x1.5 6
M20x1.5 5
Pusher Slot 0.6x3.5
M5 4.5
PT 30x10 0.9
M3x10 0.6
