ENGAGEMENT SPEED CHECK/PARKING BRAKE PAD
INSPECTION/PARKING BRAKE ADJUSTMENT

ENGAGEMENT SPEED CHECK

1. Place the machine on a level surface of hard-
packed snow.
2. Check:
•
Clutch engagement speed
Checking steps:
•
Start the engine, and open the throttle lever
gradually.
•
Check the engine speed when the machine starts
moving forward.
Out of specification → Adjust the primary sheave.
Engagement speed:

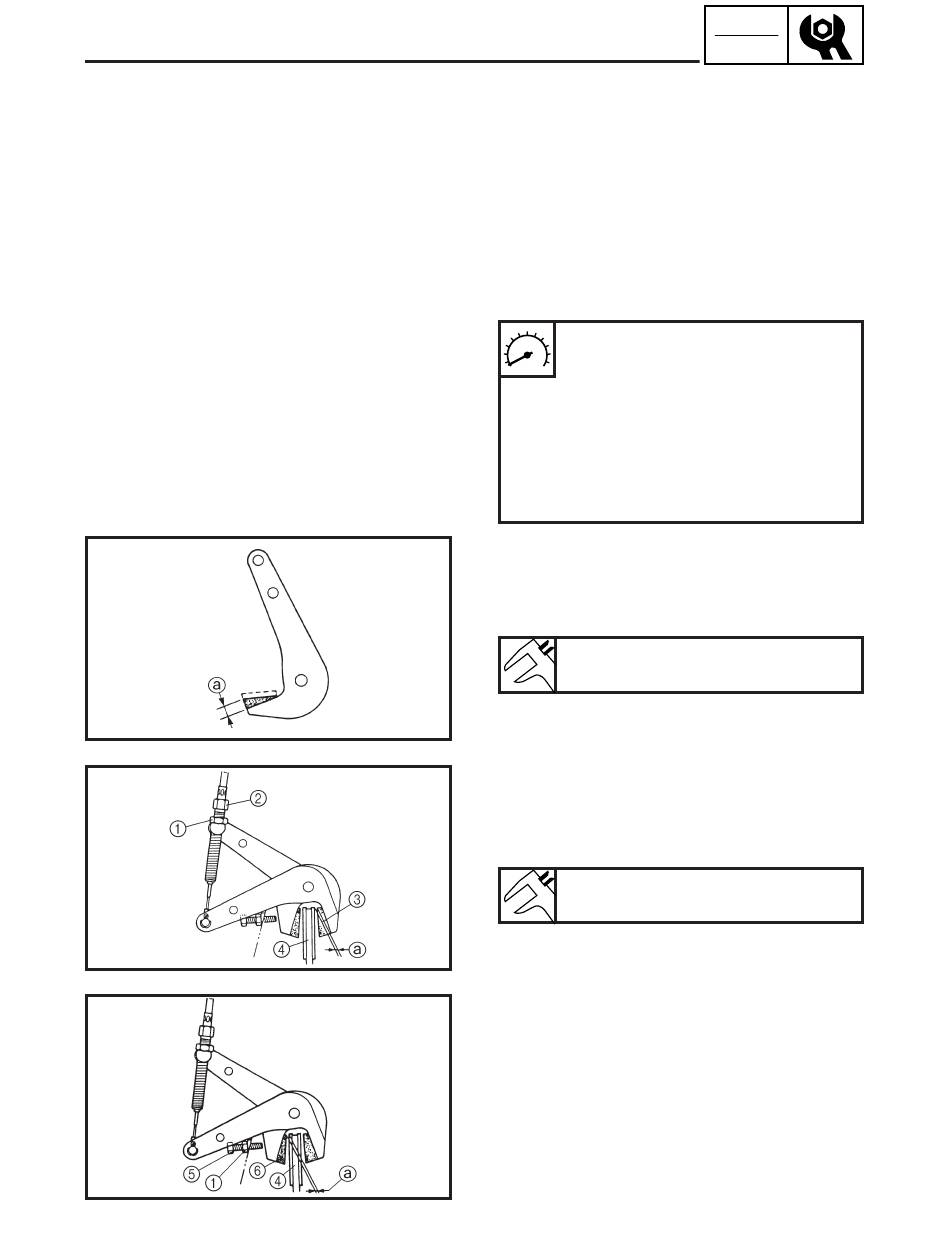

PARKING BRAKE PAD INSPECTION

1. Measure:
•
Parking brake pad thickness a
Out of specification → Replace as a set.
Wear limit a:
SCH2480

PARKING BRAKE ADJUSTMENT

1. Measure:
•
Clearance a
Out of specification → Adjust.
Clearance a:
2. Adjust:
SCH2490
•
Clearance a
Adjustment steps:
•
Loosen the locknuts 1.
•
Turn the cable adjuster 2 in or out to until the
specified clearance between the brake pad 3
and disc 4 is obtained.
•
Turn the brake pad adjusting bolt 5 in or out until
the specified clearance between the brake pad 6
and disc 4 is obtained.
•
SCH2500
Tighten the locknuts.
2-20
INSP
ADJ
VX700/VX700DX:
4,000 ± 200 r/min
(3,800 ~ 4,200 r/min)
SX700/VT700:
3,900 ± 200 r/min
(3,700 ~ 4,100 r/min)
MM700:
4,700 ± 200 r/min
(4,500 ~ 4,900 r/min)
6.0 mm (0.24 in)
1.2 ~ 1.3 mm (0.047 ~ 0.051 in)
