AC MAGNETO
INSTALLATION
NOTE:
After installing all parts, refer to "CABLE ROUTING"
in CHAPTER 9, to check the cable, lead and hose
routings.

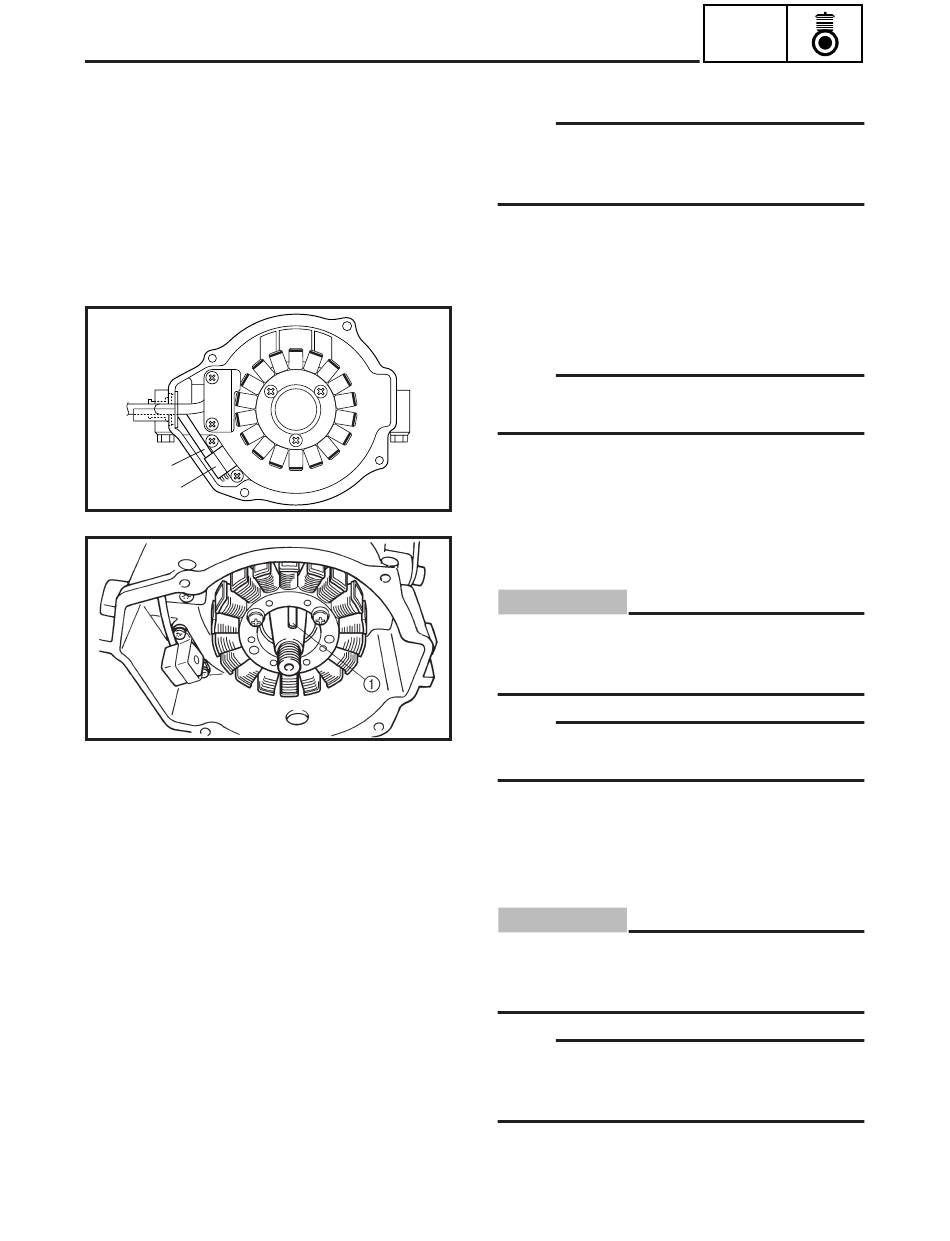

1. Install:
•
Stator coil
NOTE:
Route the pickup coil lead 1 under and behind the
pickup coil 2 as shown.
SCH5570
2. Install:
•
Woodruff key 1
CAUTION:
Be sure to remove any oil or grease from the
tapered portion of the crankshaft using a cloth
dampened with thinner.
NOTE:
SCH5580
Pass the magneto leads through the hole and install
the grommet in the crankcase.
3. Install:
•
Magneto rotor
•
Washer
•
Nut
CAUTION:
Be sure to remove any oil or grease from the
tapered portion of the magneto rotor using a
cloth dampened with thinner.
NOTE:
When installing the magneto rotor, make sure the
woodruff key is properly seated in the keyway of the
crankshaft.
5-25
ENG
