DRIVE CHAIN HOUSING

INSTALLATION

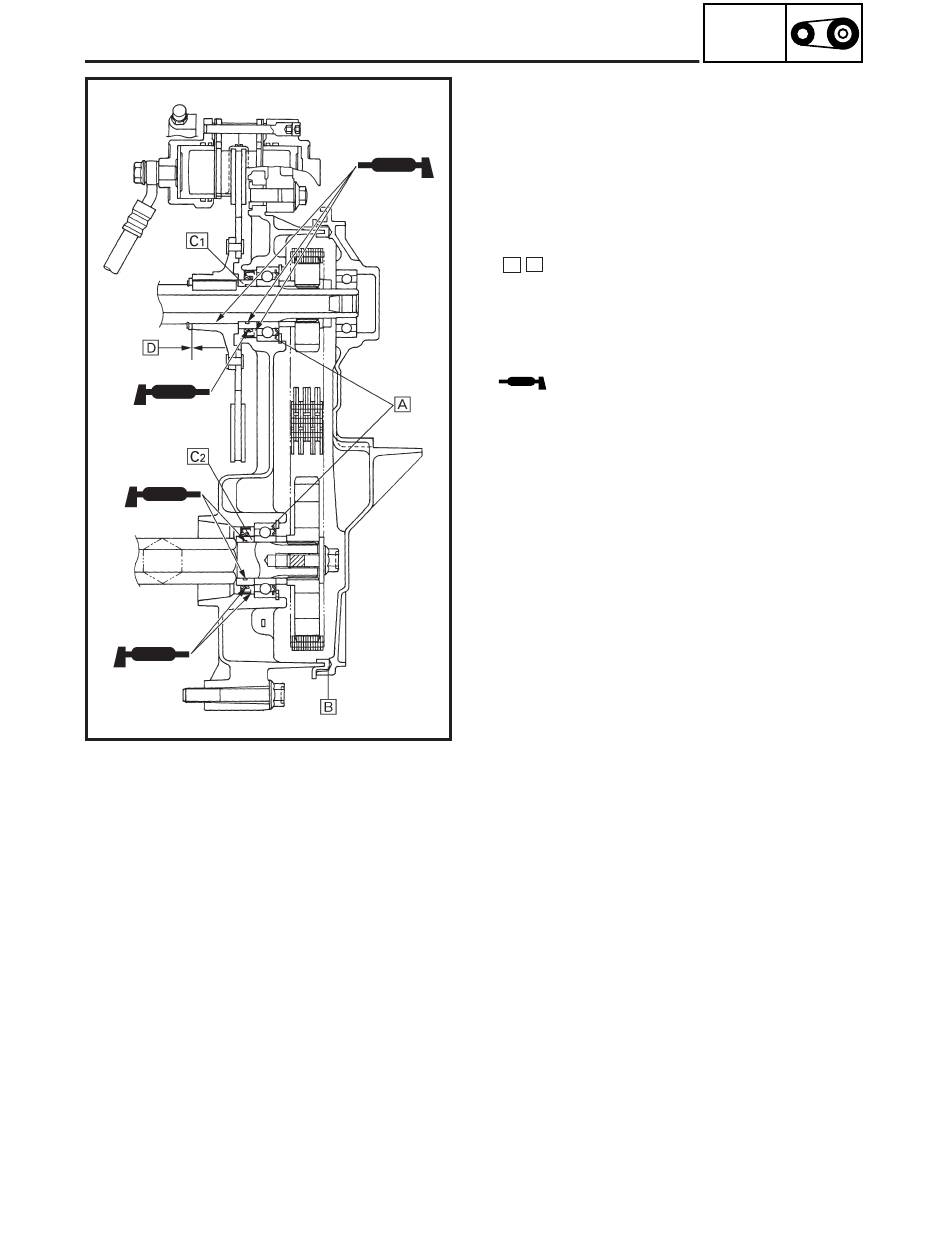

1. During installation, pay attention to the following.
Å Make sure that the bearing seals face towards the
drive chain as shown.
ı Properly install the rubber seal onto the drive chain
housing, making sure that there are no gaps.
Be sure to install the spacers in their original
C C
1 2
positions, otherwise the brake disc and jackshaft
will stick.
Î 0.1 ~ 0.5 mm (0.004 ~ 0.020 in)
: ESSO beacon 325 grease or Aeroshell grease
#7A
For the jackshaft and drive chain housing installation,
refer to "JACKSHAFT".
2. Fill:
•
Drive chain housing oil
Refer to "DRIVE CHAIN" in CHAPTER 2.
3. Adjust:
•
Drive chain slack
Refer to "DRIVE CHAIN" in CHAPTER 2.
