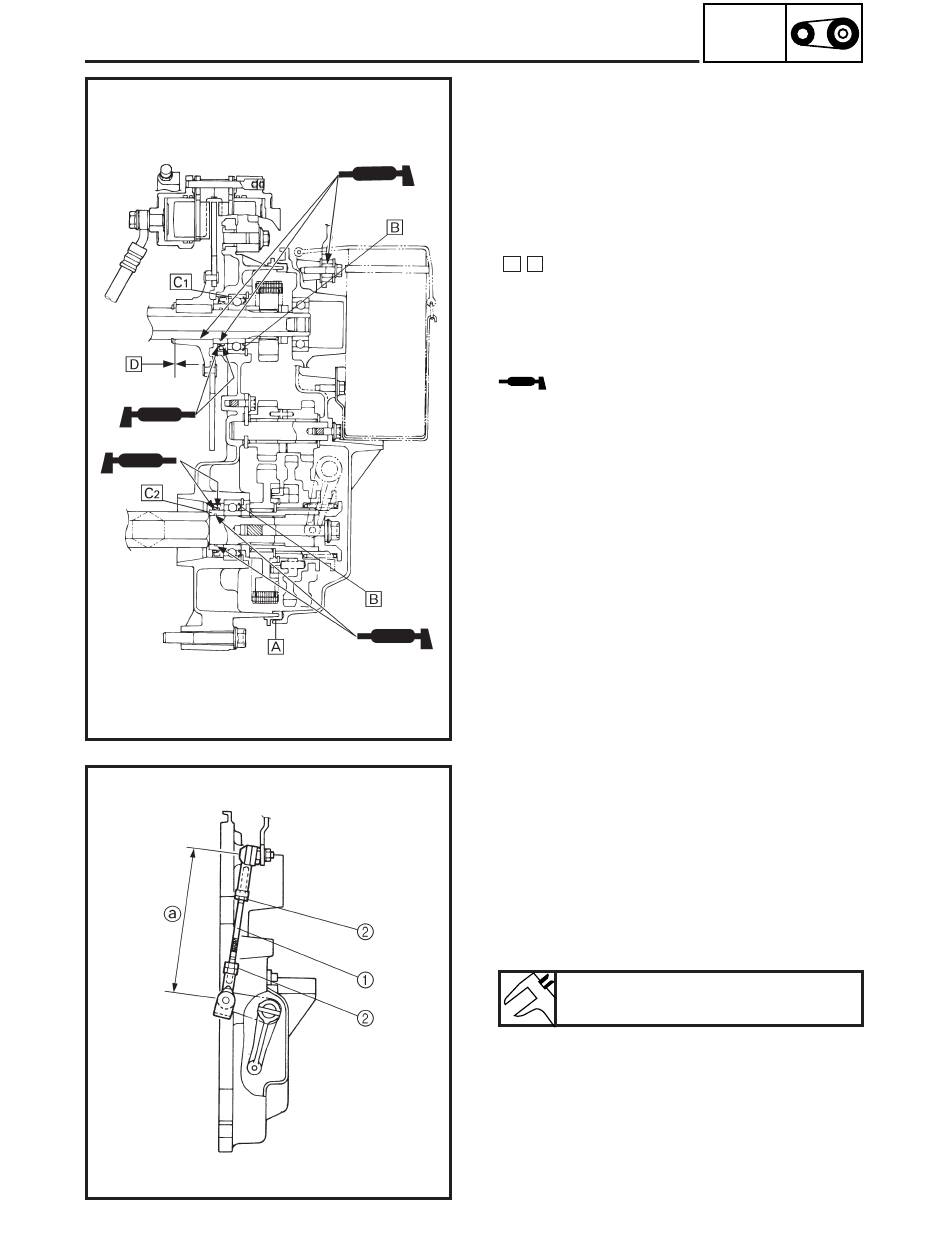

DRIVE CHAIN HOUSING

INSTALLATION

1. During installation, pay attention to the following.
Å Properly install the rubber seal onto the drive chain
housing, making sure that there are no gaps.
ı Make sure that the bearing seals face towards the
drive chain as shown.
Be sure to install the spacers in their original
C C
1 2
positions, otherwise the brake disc and jackshaft
will stick.
Î 0.1 ~ 0.5 mm (0.004 ~ 0.020 in)
: ESSO beacon 325 grease or Aeroshell grease
#7A
For the jackshaft and drive chain housing installation,
refer to "JACKSHAFT".
SCH4500
2. Install:
•
Lever rod 1
3. Adjust:
•
Lever rod length a
Adjustment steps:
•
Loosen the locknuts 2.
•
Turn the lever rod 1 in or out until the specified
length is obtained.
Lever rod length a:
•
Tighten the locknuts.
SCH4510
4-24
POWR
TR
139 ~ 141 mm (5.42 ~ 5.55 in)
