SHEAVE DISTANCE AND OFFSET ADJUSTMENT

a
3
2
1

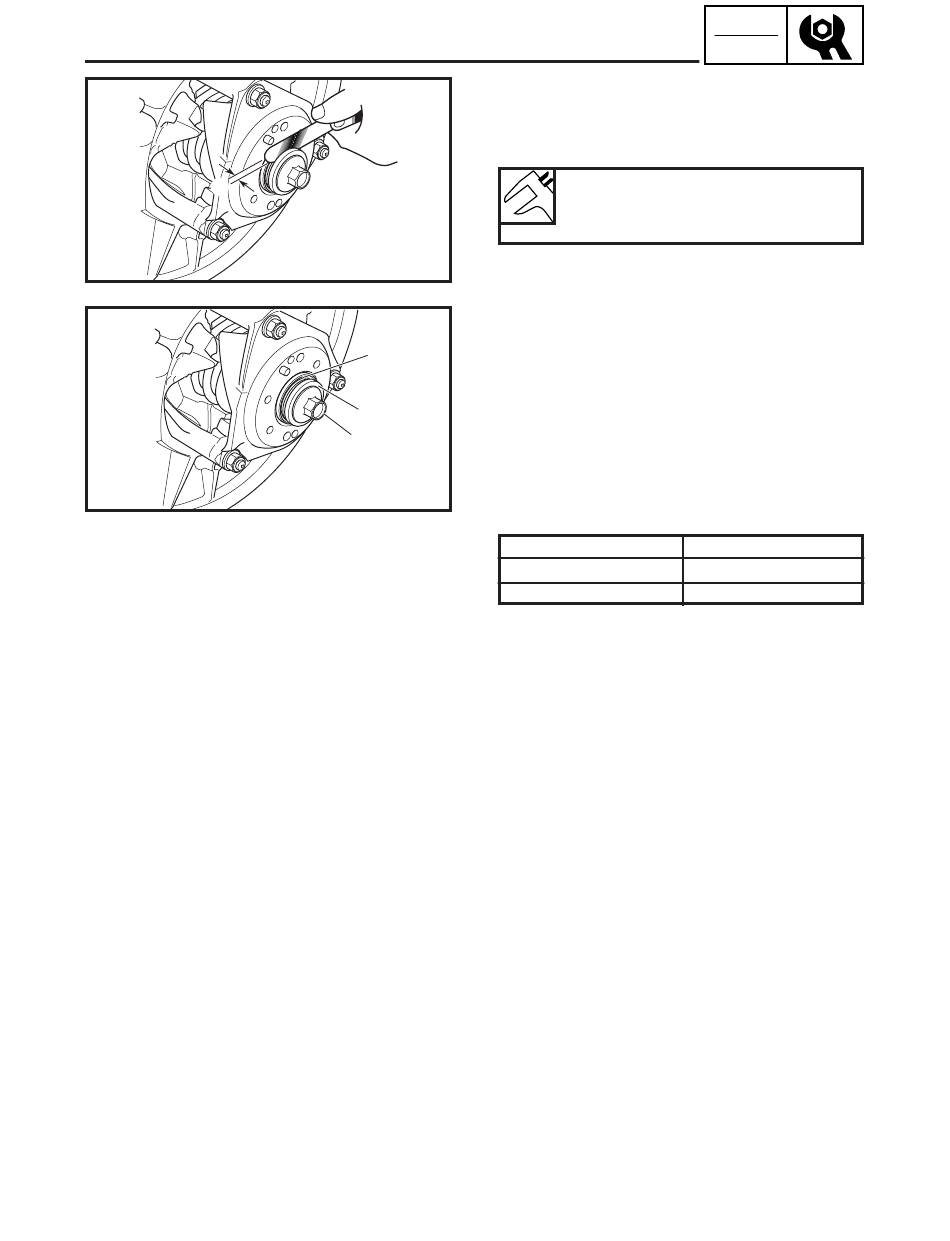

6. Measure:
•
Secondary sheave free play (clearance) a
Use a thickness gauge.
Out of specification → Adjust.
Secondary sheave free play
(clearance) a:
SCH2400
7. Adjust:
•
Secondary sheave free play (clearance)
Adjustment steps:
•
Apply the brake to lock the secondary sheave.
•
Remove the bolt 1 and washer 2.
•
Adjust the secondary sheave free play (clear-
ance) by adding or removing a shim(s) 3.
SCH2410
Shim size:
Part number
90201-222F0
90201-225A4
2-17
INSP
ADJ
1.0 ~ 2.0 mm (0.04 ~ 0.08 in)
Thickness
0.5 mm (0.02 in)
1.0 mm (0.04 in)
