EzCad2UNI User's Manual

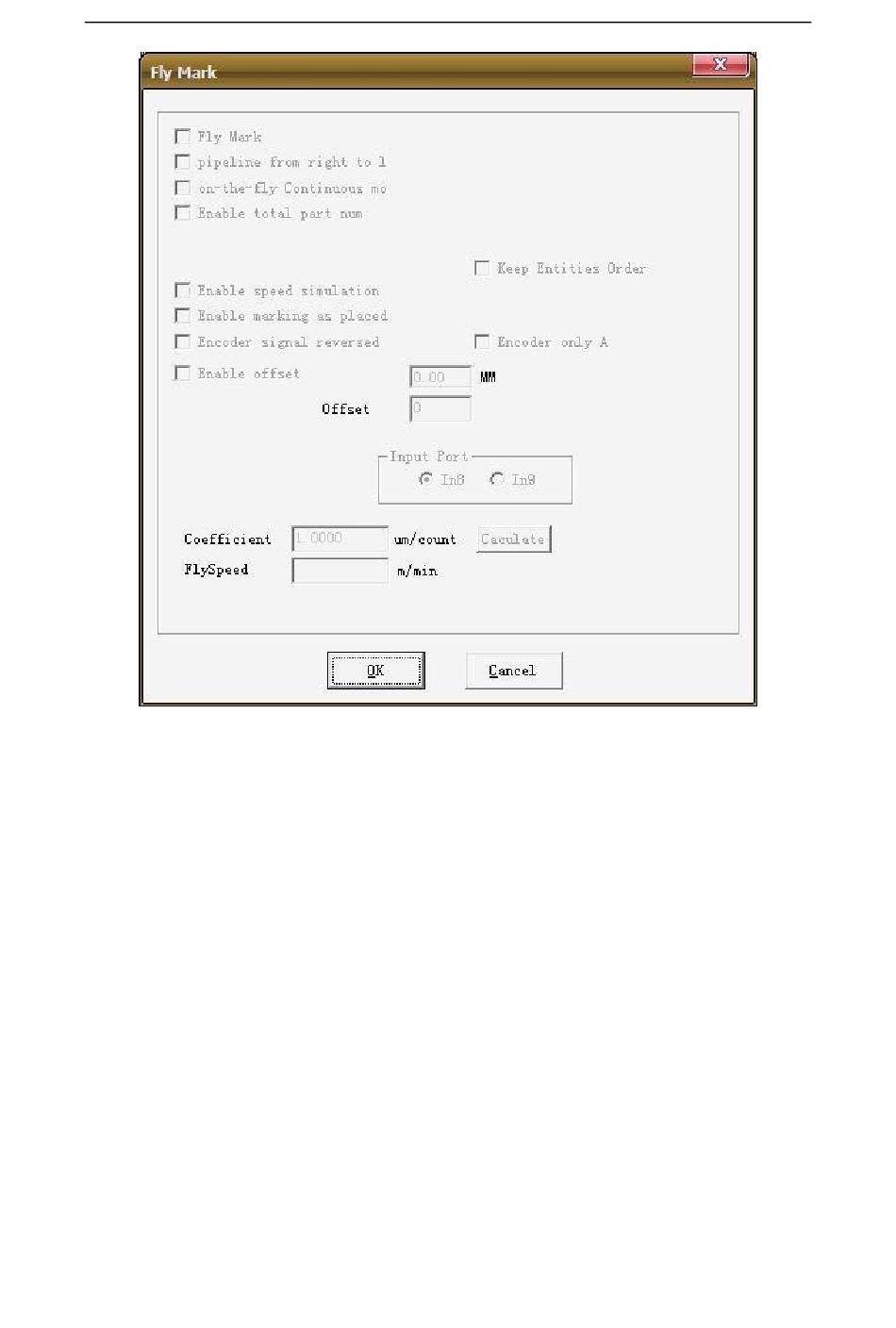

Figure 10-32 Fly mark set dialog box
Fly mark: choosing this item refers to enable "Fly mark" function.
Fly from right to left: Choosing this item indicates that stream line direction is from right to
left.
On-the-Fly continue mode: Choosing it indicates mark object is continuous one, namely, we
need to mark content on continuous object. (Such as: wire ,cable and so on).
Enable total part num: Selecting it indicates the mark "total number" set is effective.
Enable speed simulation: It indicates that using simulation hardware method produce linear
speed. It requires appointing speed.
Enable marking as placed: Selecting it indicates that software will mark content according to
its order in the list in turns. Otherwise, software will mark content according to its position in
working space from left to right.
Encoder Signal Reverse : the signals from encoder is reversed.
Fly encoder Offser: the position of marking is in front of actual.
Inport: choose port of flying signal for Board Version 2.2.6 or update.
Fly speed coefficient: The calculation formula is shown as follows:
Fly speed coefficient = perimeter of coder tachometer wheel / coder pulse per revolution;
Red Light Pointer:
