VEVOR FLM-R30-FT Mode D'emploi page 351

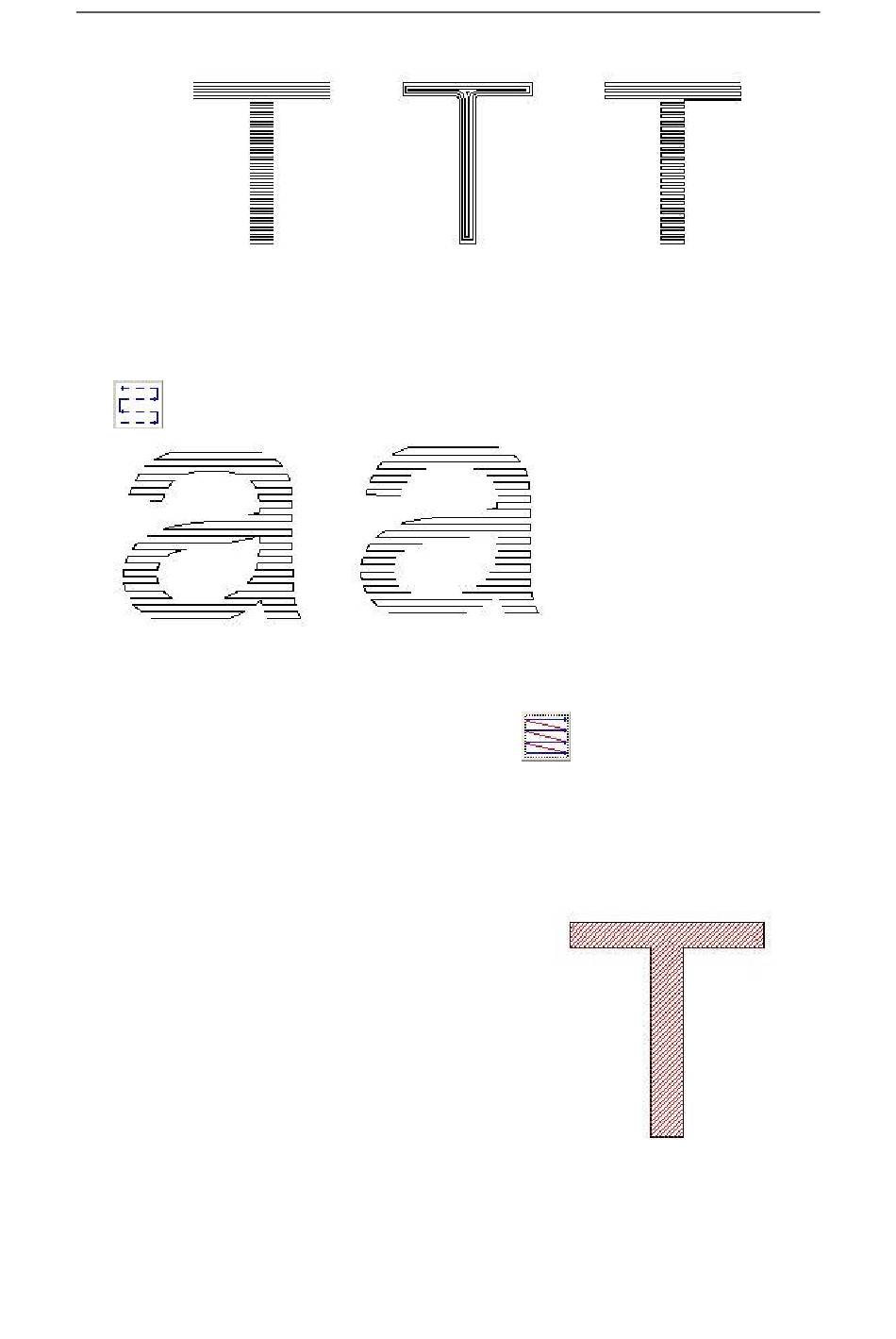

(The left object is being filled by Unidirection Hatch or Bidirectional Hatch, the middle object by
Ring-like hatch, and the right one is Optimization two-way Hatch)
Optimization Gong type hatch:
Gong type hatch
Above 5 types all can be changed by click the button
application.
Angle: Hatch Angle stands for the angles between hatch lines and X axis, and Figure 3-6 is the
feature when the angle is 45 degrees.
Line Space: the space between two hatch lines
Edge offset: the distance between hatch lines and
the object's outline (Figure 3-7)
Figure 3-5 Types of hatch
similar with Gong, will jump in null place.
Optimization Gong type hath
, choose it according to different
Figure 3-6 Degrees
21
