First establishes a keyboard variable text:
1.
establish text—→enable variable text—→add—→keyboard, such as the figure 4-50-a:
Input prompting message, click "OK", then we can obtain the figure 4-50-b.
2.
Select "Advance" then the dialog
3.
box will be displayed shown as Figure
4-48.
Selects "enable split string to
4.
change other text entity" to revise has
assigned the name text object, click
"Add" then the dialog box will be
displayed shown as Figure 4-50-c.
Index of the first character in
string: In the TEXT1 text the first
character is the several characters in
the keyboard variable text character
string.

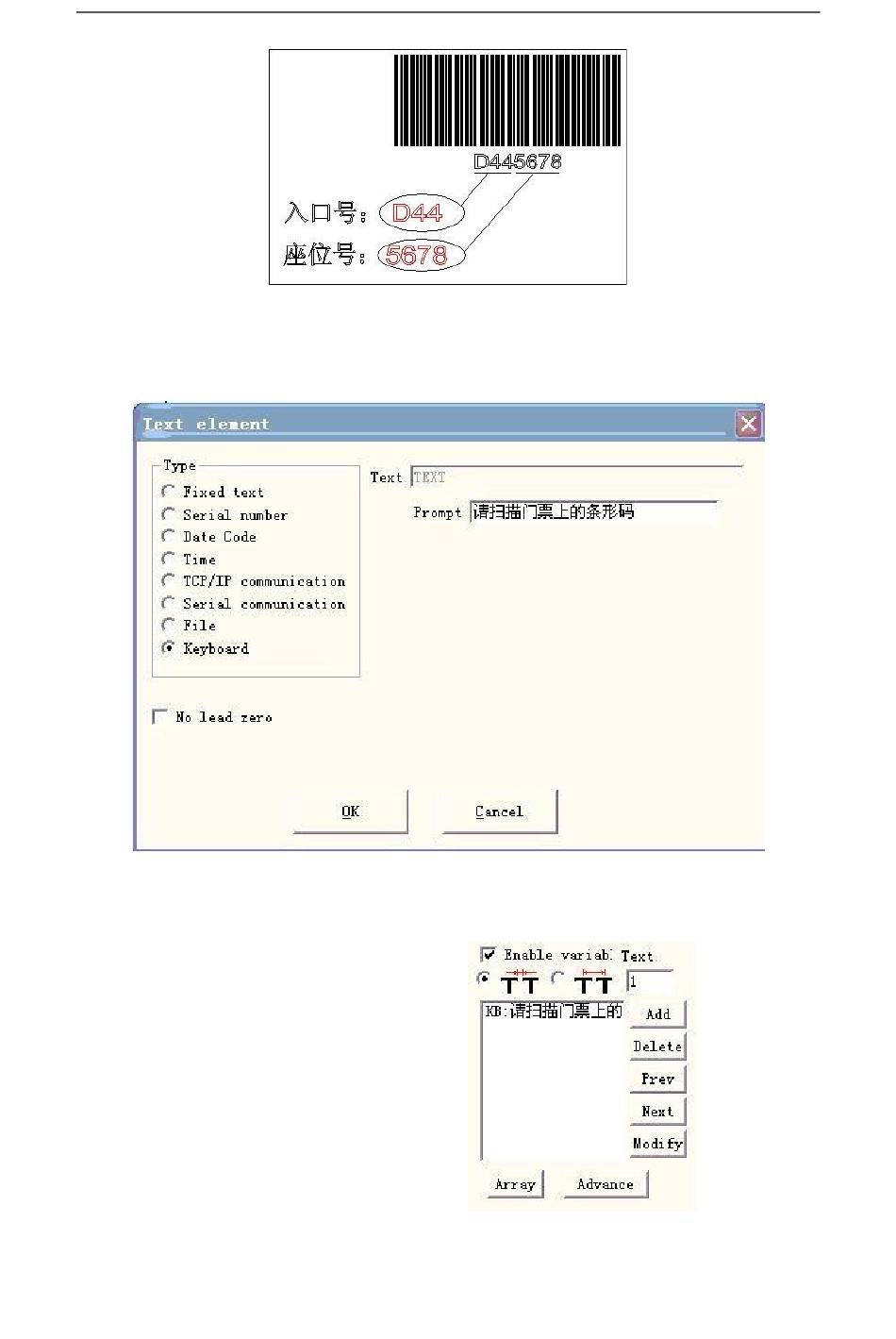

Figure 4—49 Olympic Games ticket sketch map
Figure 4-50-a Keyboard
Figure 4-50-b Keyboard text parameter
