End TC: The End TC parameter is used to control how long the software will wait at the
end of a series of vectors. The wait is required because the software is always "ahead" of the
hardware and must wait for the hardware to catch up. This delay applies to the end of all vectors
in which the laser is to be turned off after execution.
Polygon TC: the Polygon TC parameter is used to control how long the software will wait
at vector connection points. The wait is required due to the lag time between the software/DAC
position and the actual hardware/mirror position. This timer applies to all vectors whose endpoint
is also the start point of the next vector (polygon connection points). In other words, this timer
applies to end of all vectors in a series of connected vectors, except for the last one (the end of last
one is controlled by the End TC parameter). The three connected points in a square or the
intermediate connection points in a polyline circle are examples of points the Polygon TC
parameter can effect. The starting point of the square is controlled by Start TC parameter. The
last corner of the square is controlled with the End TC timer.

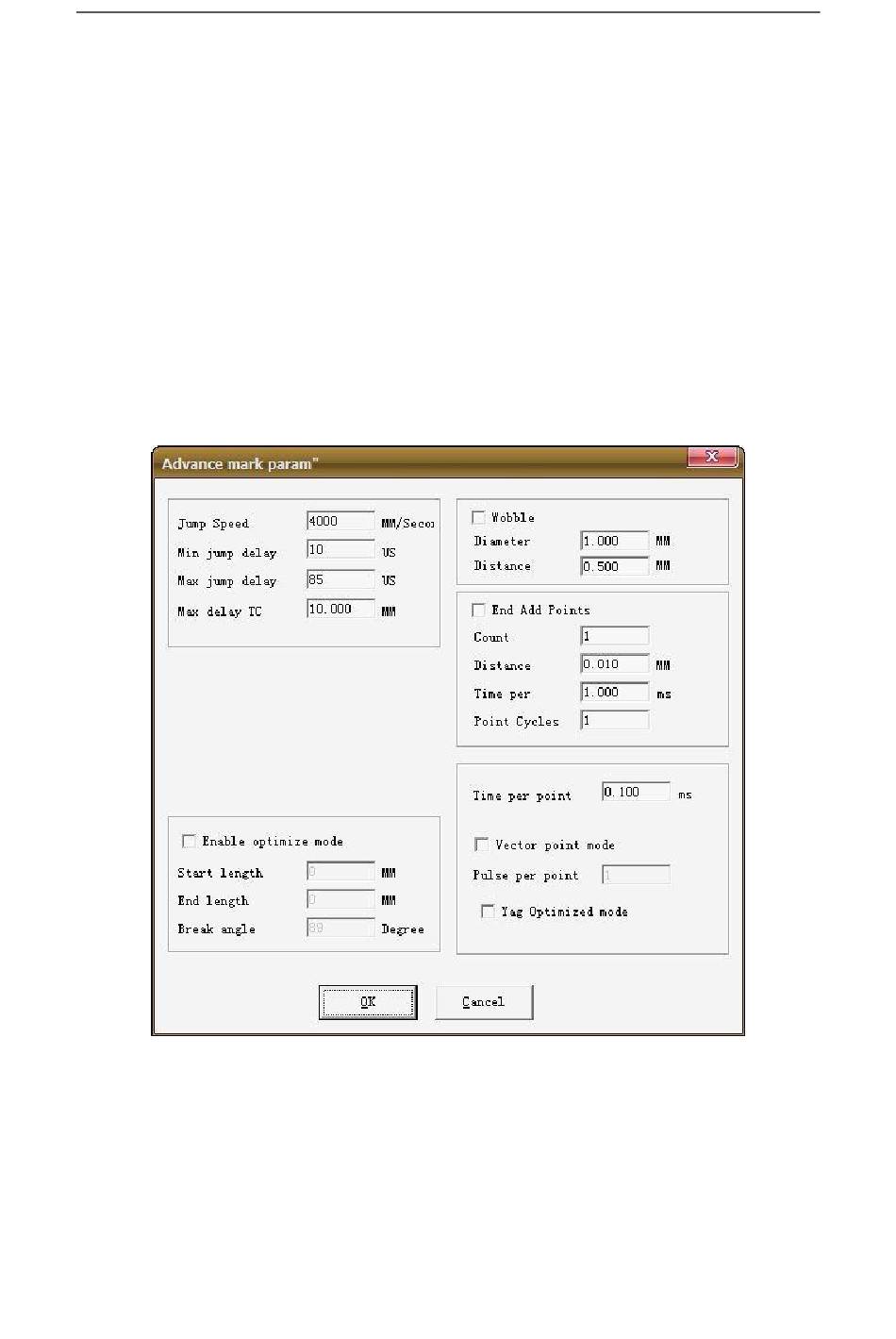

Clicking "Advanced" will prompt an advanced parameter dialog box as Figure 10-5 shows.
Fig 10-5
