data to transmit immediately to the marking board.
8. After the marking board receives the processing data, control the machine to mark the
work piece immediately.

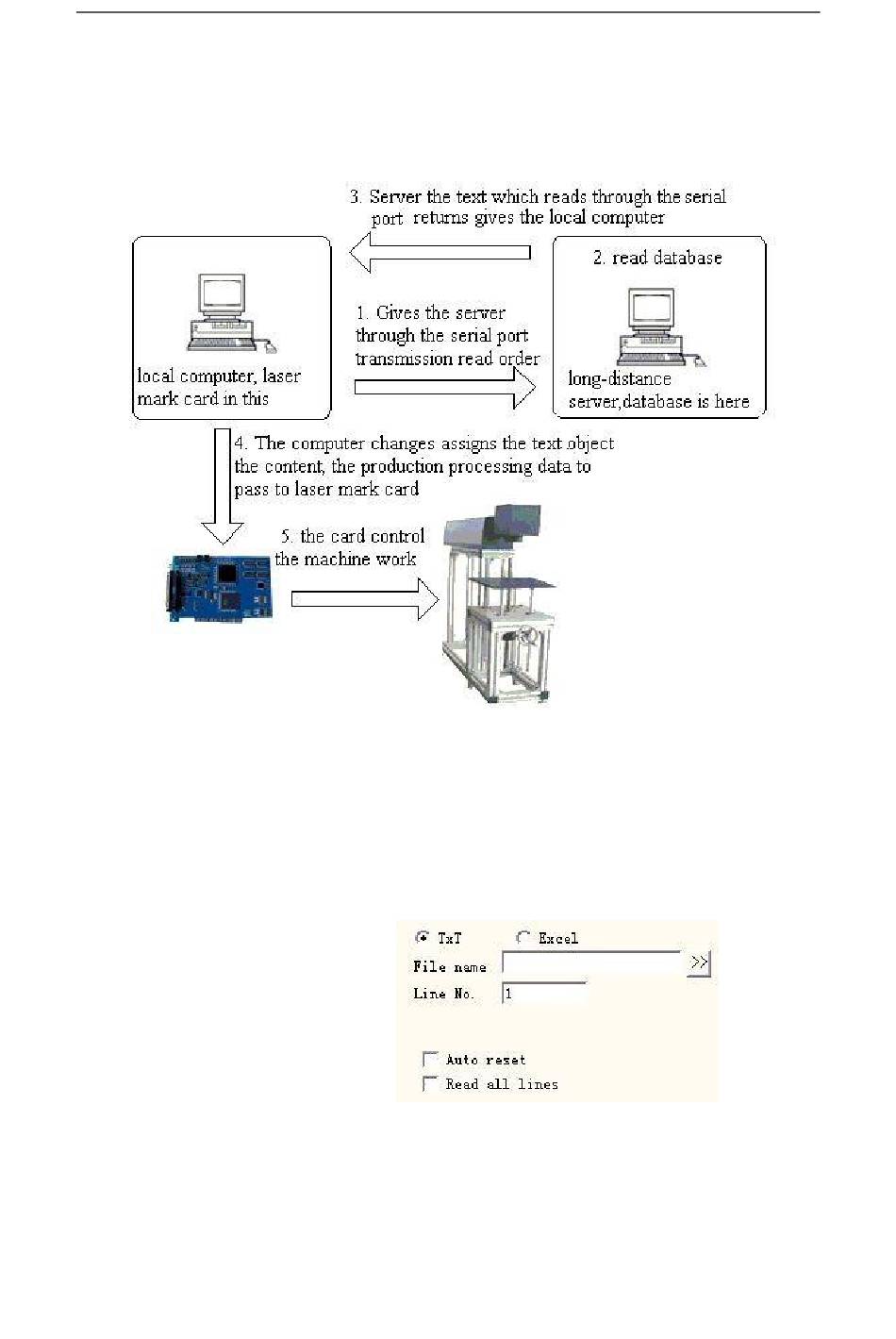

Flow chart as shown in Figure 4-44:
File
Txt files and Excel files are supported now.
1．Txt files
When select TXT file, a dialog box as
Figure 4-45 shows will be displayed
to ask for the file's name and the
current text's line number.
Auto reset: If checked, the line
number will change to 0 automatically
when reach the last line. The next
mark will start from the first line
again.
Read all lines: When processes to the text document direct read entire document.
2．Excel files
Figure 4-44 Serial communication flow chart
Figure 4-45 TxT document parameter definition
