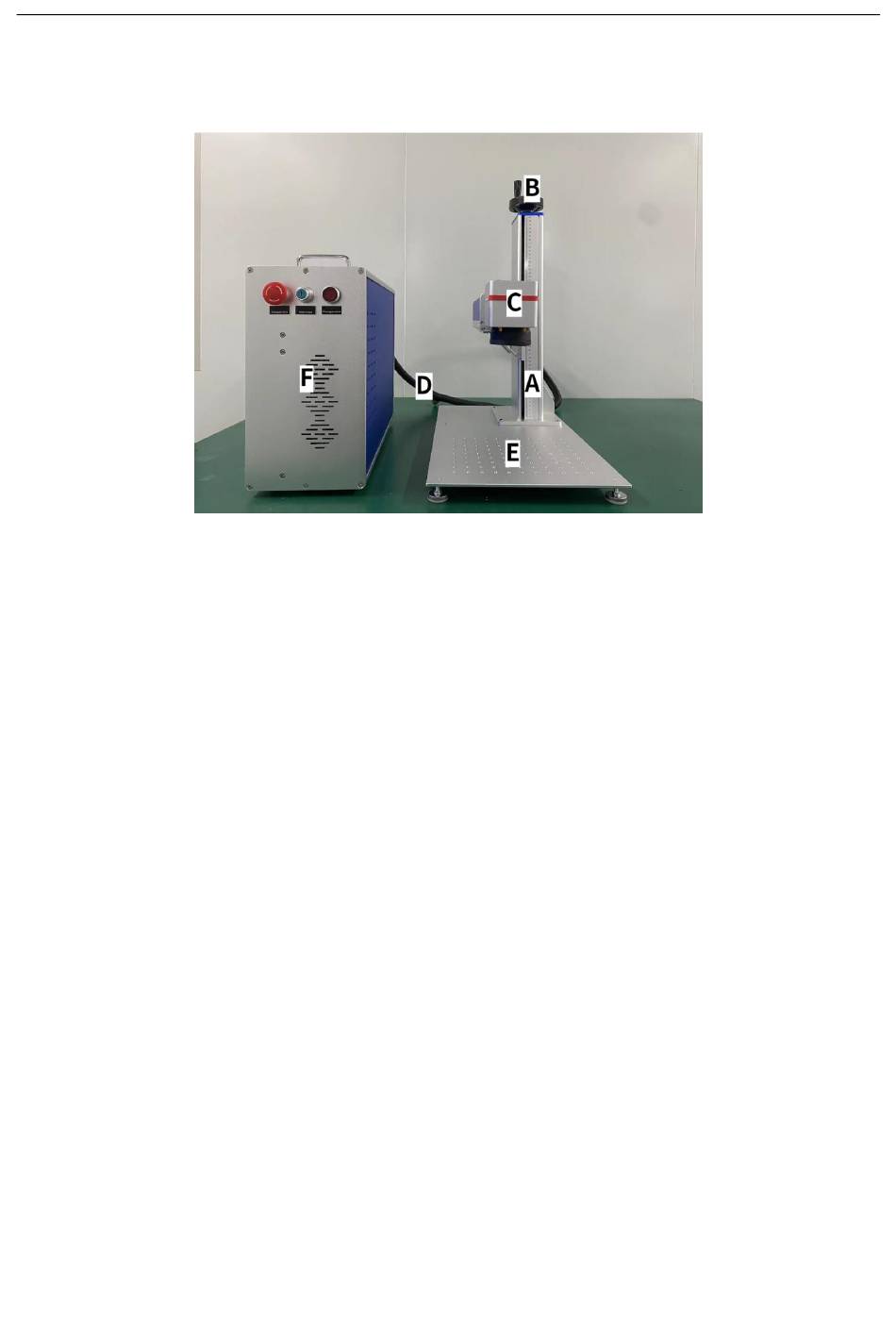

1.4 Components

Main Parts

A. Support Column - Holds the laser arm and includes a precise graduated ruler for quickly
adjusting the height to work with different materials and thicknesses.
B. Height Adjustment Knob - Moves the laser arm up and down for the correct alignment
across different materials and thicknesses.
C. Galvo Lens Head - The high-speed galvanometer scanning head focuses the laser beam to a
fine point, directing it to proper locations on the target material during engraving.
D. Laser Cable - Transmits laser beam emitted from the laser source, electrical power, and
control signals between the main tower and the laser arm.
E. Worktable - Holds the target material. Optionally, use it with positioning bars for more
precise alignment.
F. Main Tower - Houses the fiber laser source, the mainboard, and various connections,
controlling the operation of the laser marking system. It is equipped with a laser cable and a ground
wire on the back.
