EzCad2UNI User's Manual

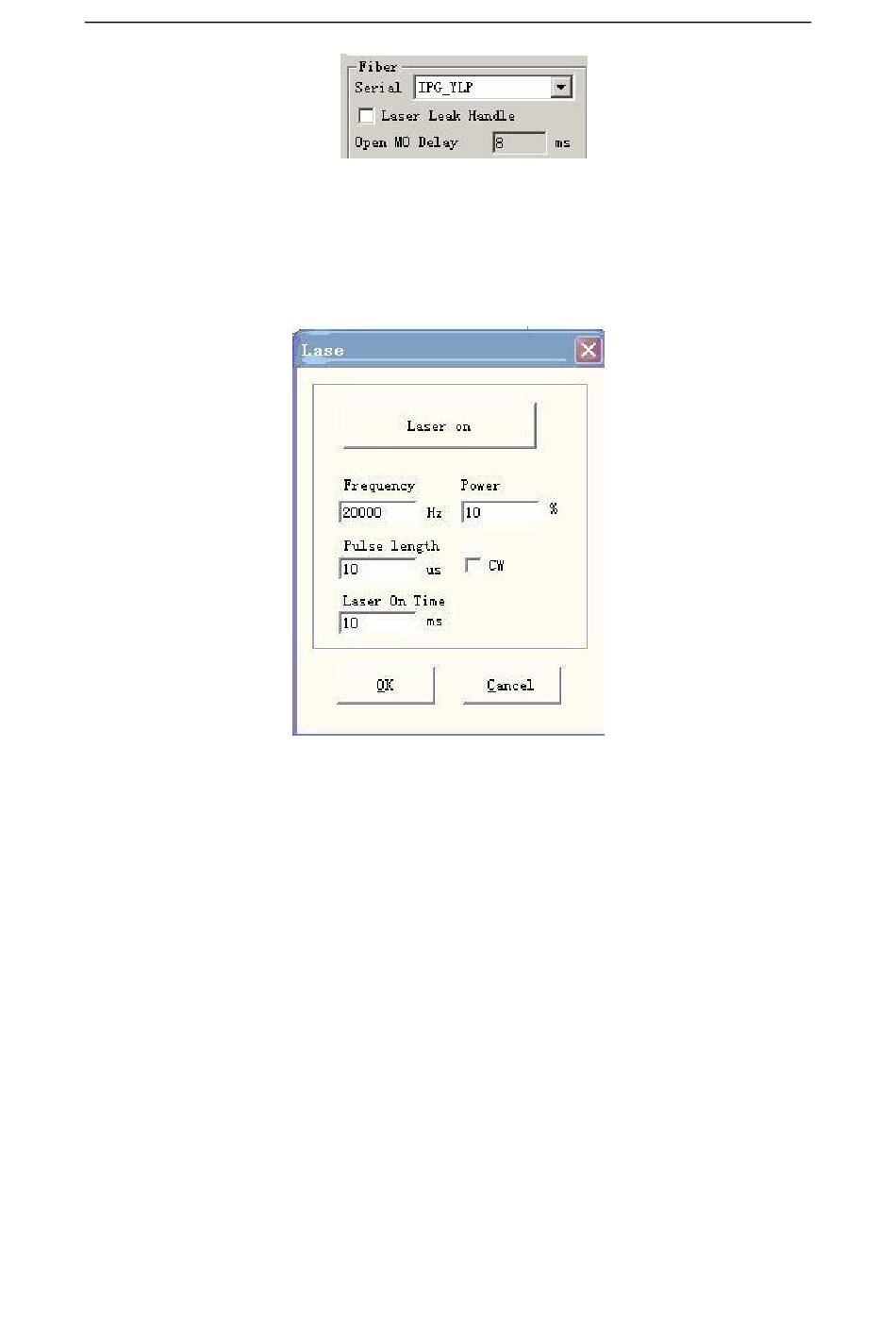

After selecting fiber, the type of fiber laser will appear in the right, for example, ipg, ipgm,
quantel, raycus, and the corresponding frequency range and MO delay will appear
Test laser
It is used to test whether laser is working normally or not. Hit "test laser" button presenting
dialog box shown in graph 10-29:
Figure 10-29 Test laser dialog box
Fill in the frequency, power, pulse width and laser on time and hit "Laser on". After that
LASER open and it will close when reach the appointed time.

10.4.3 Port parameter

Equipment port parameter is shown in graph 10-30:
All rights reserved
135
