5.2.1 Move

stroll Tool for moving objects
:
Position: the coordinates of the current selected object
datum mark. This function is the same as the Position which
is introduced in object label of properties toolbar in chapter
2.10.
select a datum mark of an object
:
Relative Position: use relative coordinates
current selected object and move it into a new place.

5.2.2 Rotate

: rotate your object
When selected, a parameter setting will appear in the Transformation Setting Box as Figure
5-5 shows.
Angle: angle to rotate
Center: the coordinates of the current selected object
datum mark
Select a datum mark of an object
:
Relative Center: change the current coordinates into
relative coordinates
the current object active
current selected object and rotate it into a new place.

5.2.3 Mirror

Activate the modification
:
This item is used to copy the
:
: Apply. Let the modification of
: This item is used to copy the

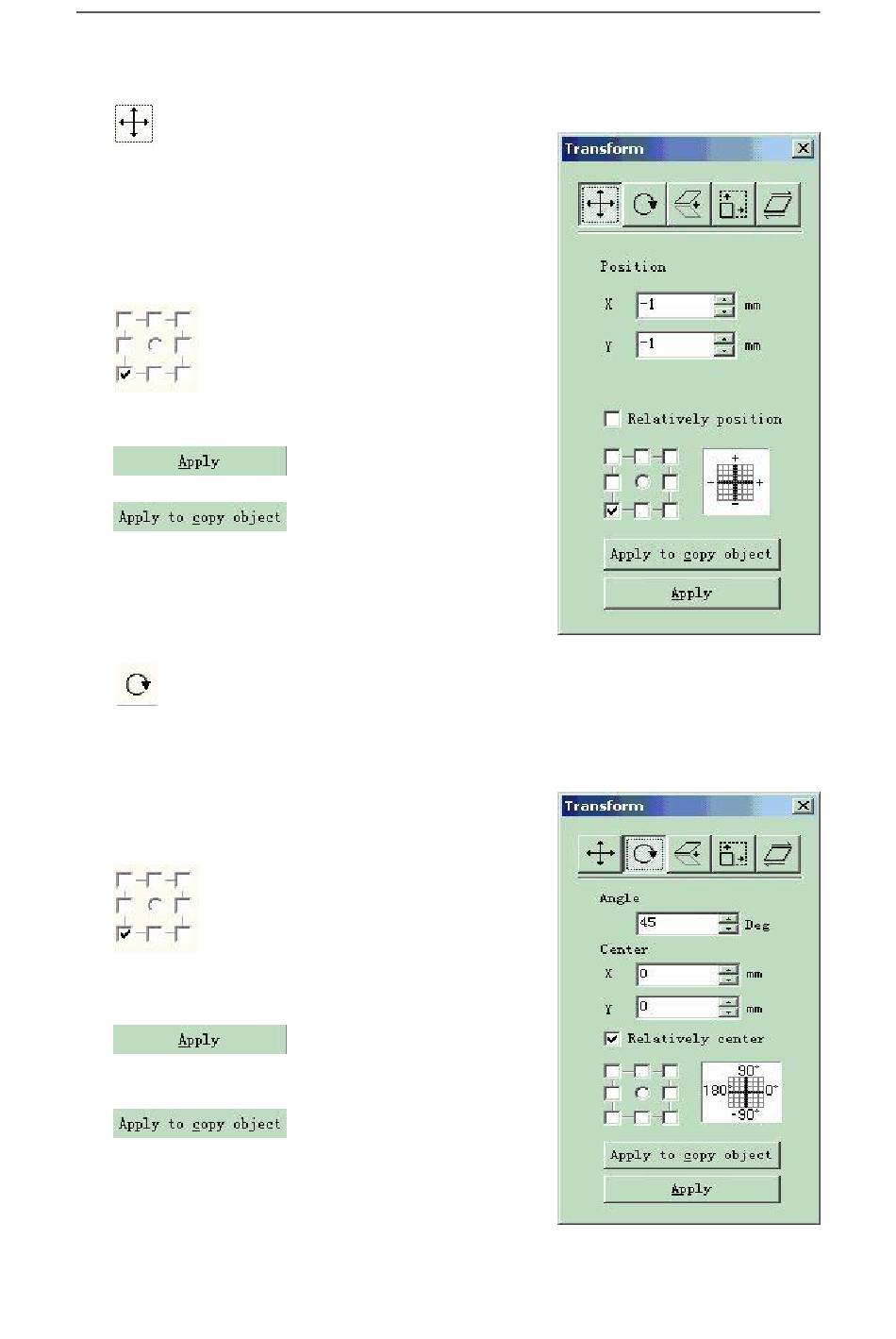

Figure 5-4 Transformation
Figure 5-5 Rotate
73
