PDF is the abbreviation of the Portable Data File. Figure 4-18 is the demonstration of
PDF417 Barcode and Figure 4-19 of the Compress PDF417 Barcode. Figure 4-20 is the
parameter setting
Bar Height: the height of the barcode
Narrow Width: This refers to the width of the unit bar.
the Error-Checking Level of PDF417 barcode, from 0 to 8
Level:
Lines and Columns: the lines and Columns of PDF417 barcode
Figure 4-18 shows a feature of a barcode with the row's number is four and the column's is four.
2.
Data Matrix is a kind of two-dimensional barcode based on Matrix, and currently there are
two types: Ecc000-140 and Ecc200. EzCad2 supports Ecc200 at present.
Figure 4-21 shows the parameter setting of Data Matrix Barcode.

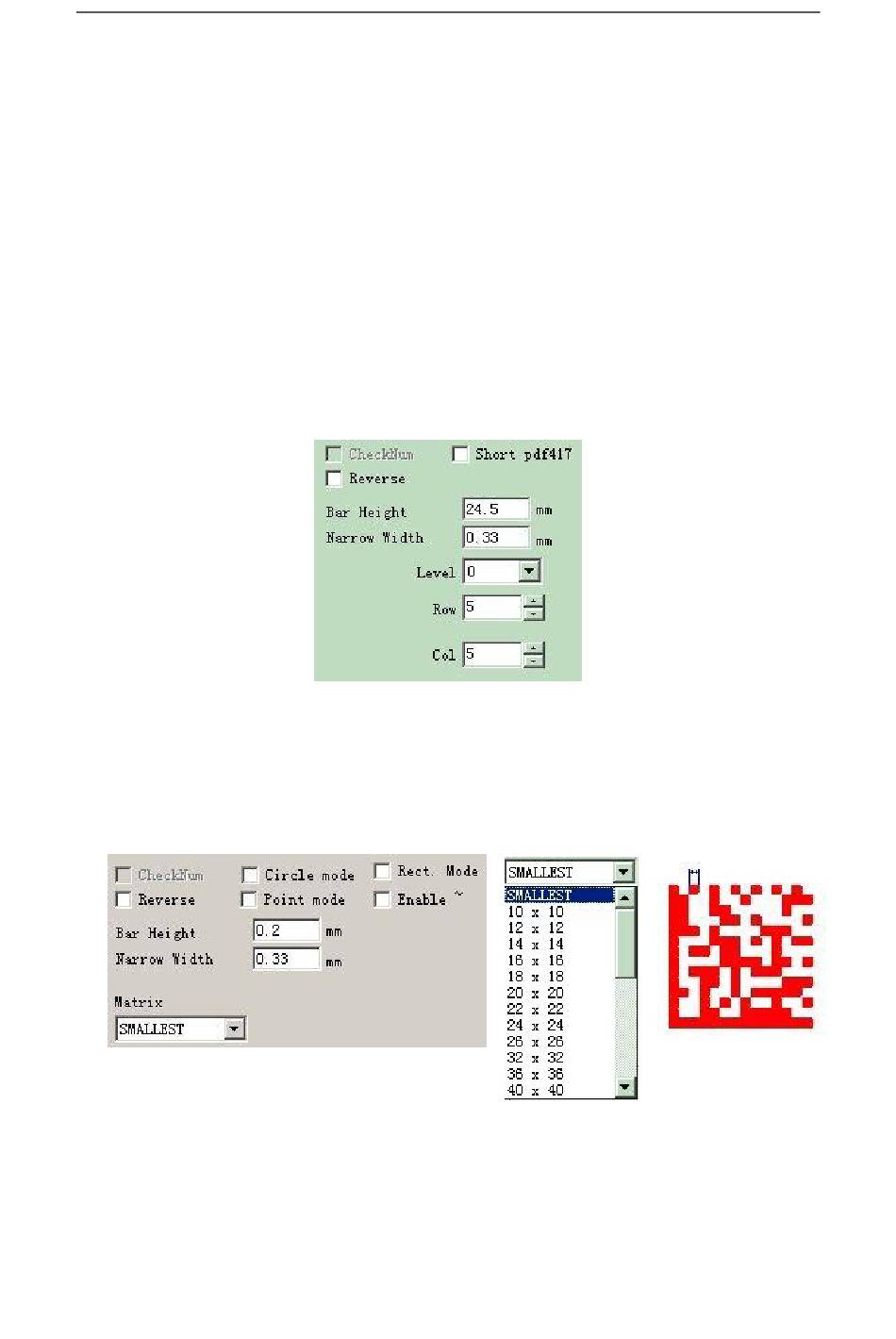

Figure 4-21 Data Matrix Barcode Parameter Setting
Data Matrix has various fixed size, and users can choose what they want. If the smallest
size is chosen, the system will automatically select the smallest frame to fit the all text users have
of the
Figure 4-20 PDF417 parameter
Data
PDF417
Matrix
Figure 4-23 Data Matrix
Figure 4-22 Data
Matrix Barcode
Size
39
Barcode.
Barcode:
Barcode Width
