Reverse: Reverse the move direction of the expansion axis.
Pulses per round: The pulse numbers each round that the expansion axis rotating. We can
calculate it through following formula:
X=（360/N）* n
Min speed: the minimum rotary speed of expansion axis.
Max speed: the maximum rotary speed of expansion axis.
Acc. time: Acceleration time needed when expansion axis moves from minimum speed to
maximum speed.
Goto start position after finished: The expansion axis will go back to the initial position
after finishing marker.
Speed：The speed of the axis going back to the initial position after finishing marker.
Zero: Whether current expansion axis has zero-switch input signal. Without zero signal, the
software can't build up an absolute coordinates. Marking a set of parts, we need make every mark
at the same position. To mark figure at the same position each time, the system takes current
expansion axis as a default original point before marking in the case of without zero signal. After
processed a part, the system moves the axis to the original position automatically. In this way,
each part will be marked in the same position.
If zero is enabled, zero switcher will be found automatically. The software creates an
absolute coordinate after Finding out zero switcher. If the system failed to find out zero switcher,
expansion axis cannot be used until the appointed time set by parameter zero time out has
expired.
Note: The switcher used for zero signal must be normal-open type and the signal should be
connected to input port 0.

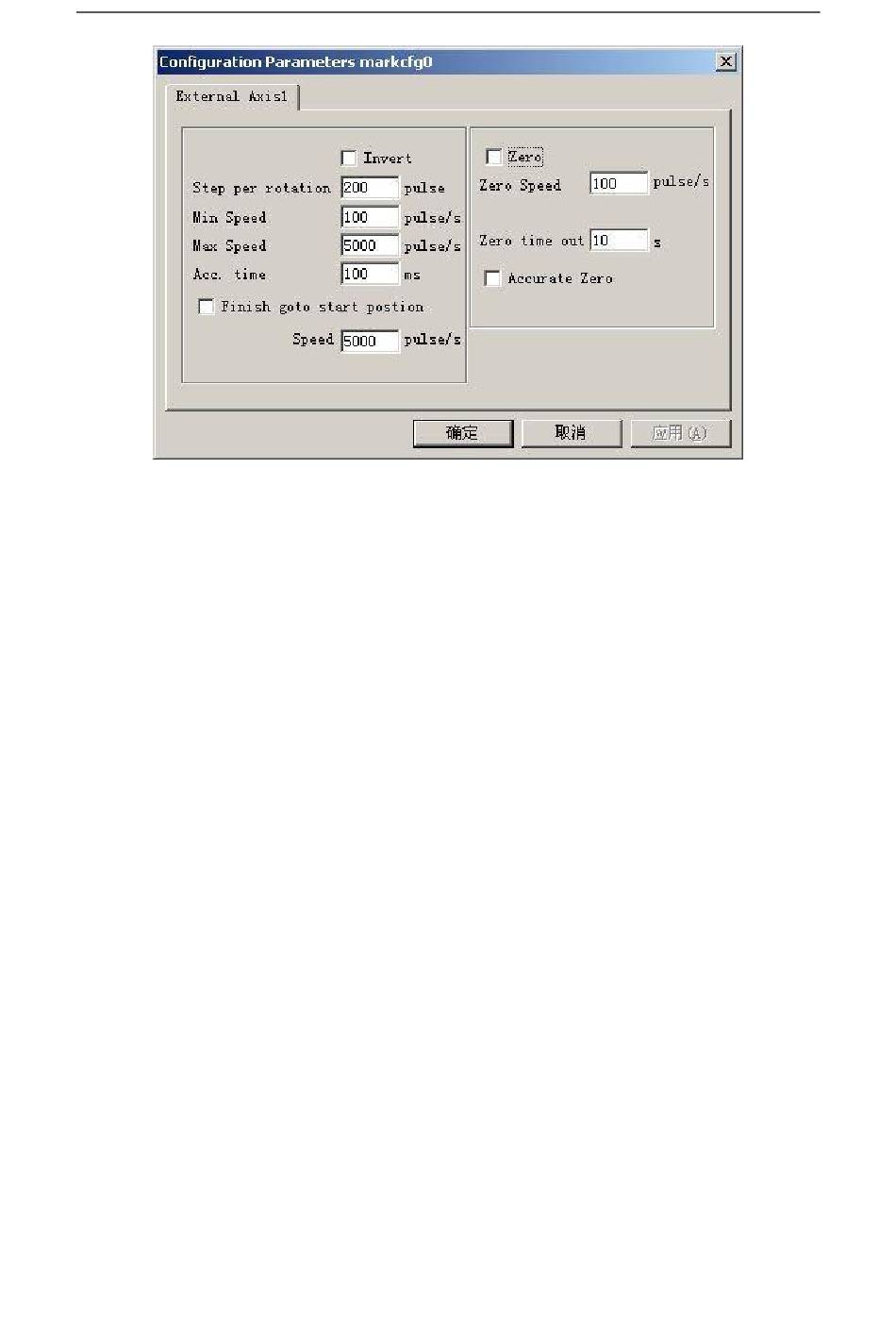

Figure 8-4 Configuration parameter dialog box
Thereinto:
X denotes Pulses per round.
N denotes step angle of step motor.
n denotes micro-step set by step motor driver.
