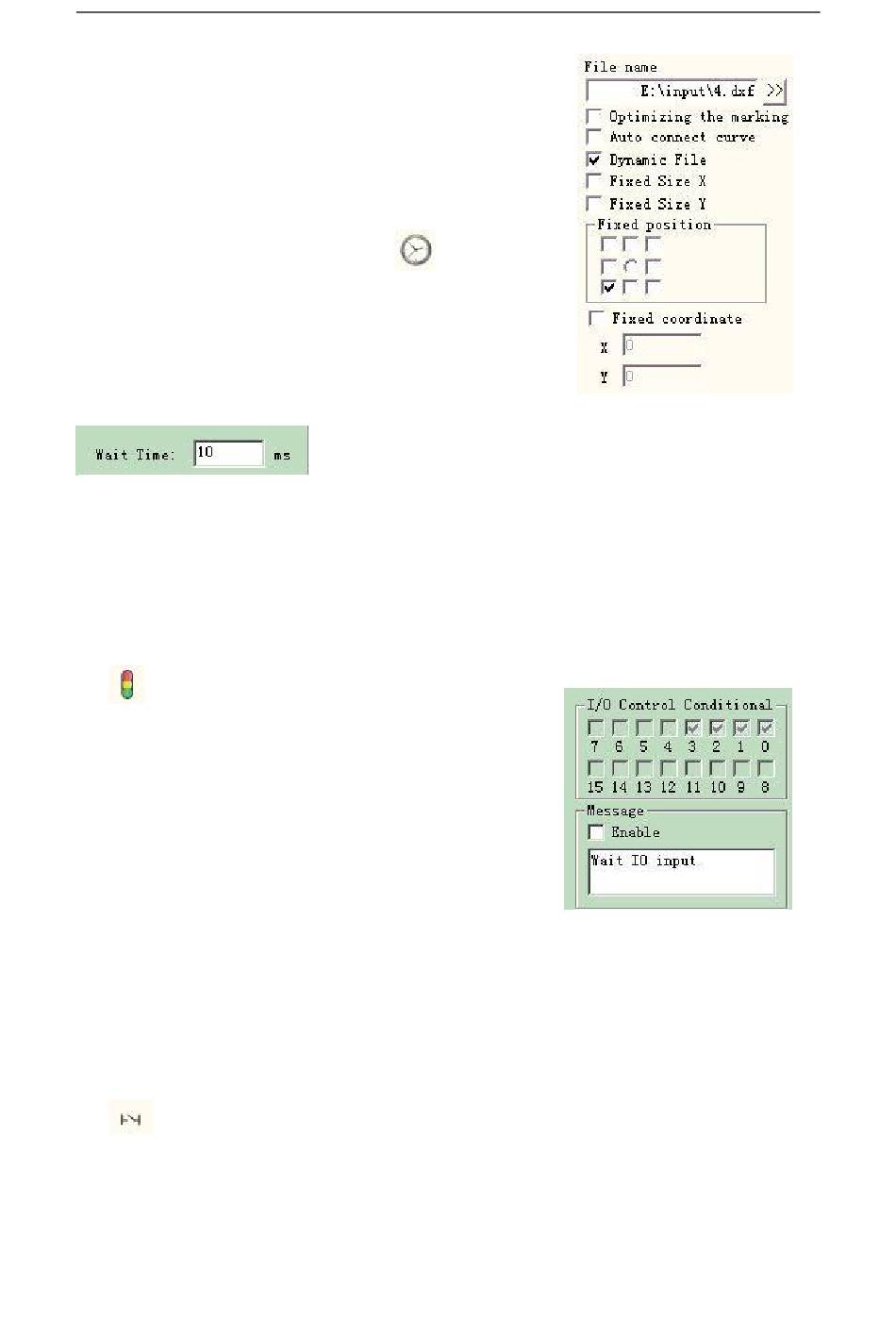

When users have opened a vector file, a vector file
parameter setting as Figure 4-60 shows will appear.

4.10 Time-lapser

To input the Time-lapser, users can select command
"Time-lapser" in Draw Menu or click icon
When selected, there will be a property setting of the
time-lapser displayed in the Property Toolbar as Figure 4-
61 shows.
Waiting time: The marking will pause until the
specific time has passed.
Figure 4-61 Waiting Time

4.11 Input Port

To check the Input signal, users can select command "Input Port" in the Draw Menu or click
icon .
When selected, there will be an input port property
setting appearing in the Property Toolbar as Figure 4-62
shows.
I/O Control Condition:
until the input signal is the same as the I/O control
condition.
Message: If checked, the software will pop up a
message box to info the user. The message text can be
custom defined.

4.12 Output Port

To output signal, users can select command "Output Port" in the Draw Menu or click the
icon .
When checked, there will be an output port property setting appearing in the Property Toolbar
as Figure 4-63 shows.
.
The software will pause
Figure 4-60 Vector File Parameter Setting
Figure 4-62 Input Parameter
64
