4.9 Vector File

To input a vector file, users can select command "Vector File" in Draw Menu or click
icon .
There will be a dialog box pop up to ask for the vector file to be inputted.
The current supported vector file formats are: PLT；DXF；AI；DST; SVG; NC;BOT
NOTE: If the vector files includes color information (when draw it by image software
like CorelDraw, AutoCAD, Photoshop and so on), Ezcad can distinguish the color
automatically. Then user can pick the object according to the color or pen (see Chapter 4.12)
and set marking parameters (see Chapter 10.1 "color", "pen")

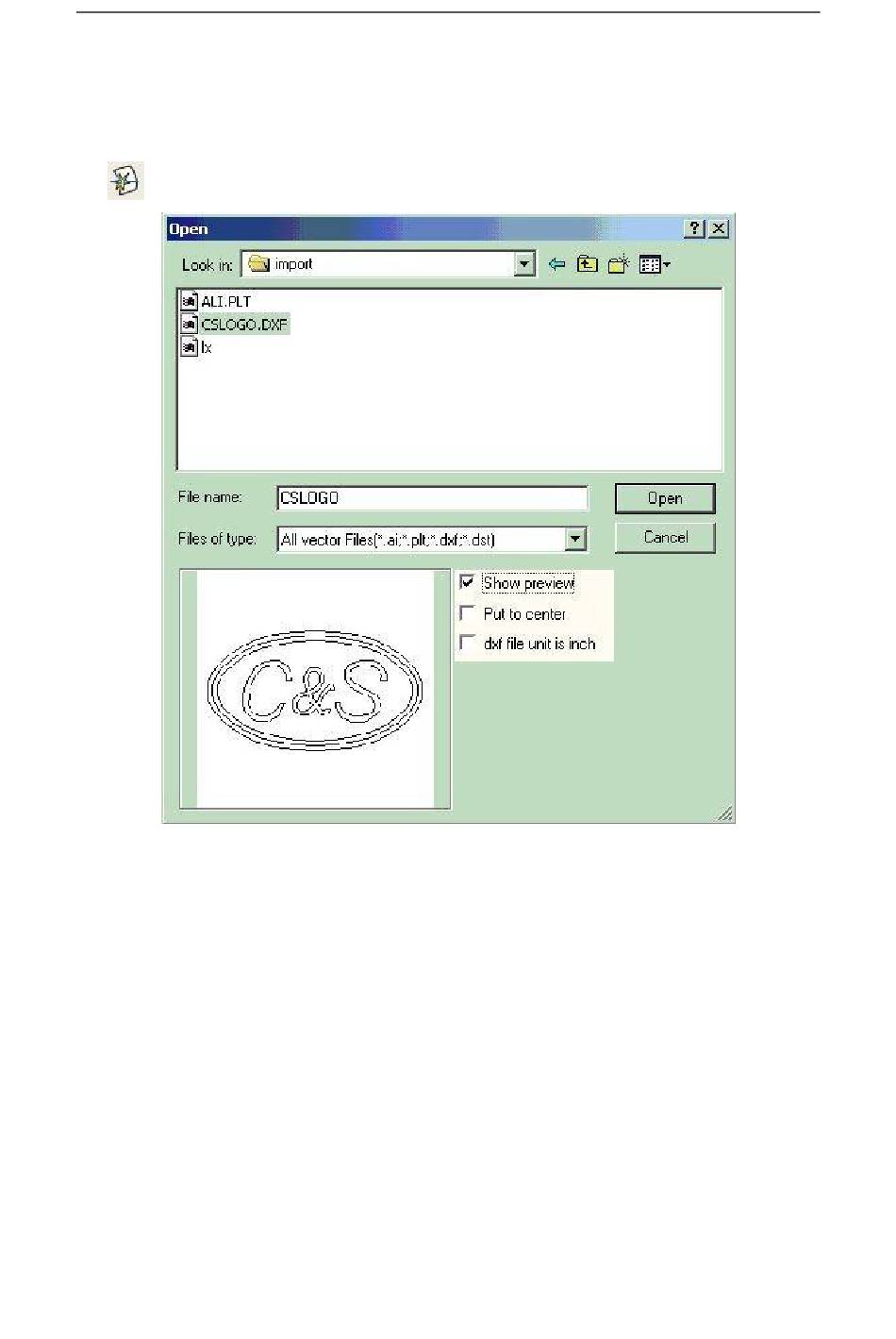

Figure 4-59 Input a Vector File
63
