VEVOR FLM-R30-FT Mode D'emploi page 387

The number of characters to extract from string: extract how many characters in the
keyboard variable text's character string.
The name of text entity which you want to change: The fixed text name the split read's
character is at.
Add Char Mode: click it then add the split characters behind of the text
Here increases two conditions, one is revises TEXT1 the object, starts from the 1st character
to take 3 characters, other one is revises TEXT2 the object, starts from the 4th character to take 4
characters. At last the result like the figure 4-50-d shows the dialog box.
Set two text objects and
5.
change its name TEXT1,
TEXT2. Here should pay
attention to the keyboard
variable text must arrange
before two fixed texts in the
object list, the TEXT1 object
places the position which the
entrance number
process, the TEXT2 object
places the position which the
seat number must process,
then set the
parameter.
Click "Mark" then the dialog
6.
box will be displayed shown as Figure 4-50-e, the user use bar code scanning gun
scanning the ticket's bar code, the system will put the series number division to inside
TEXT1 and TEXT2 and process automatically.

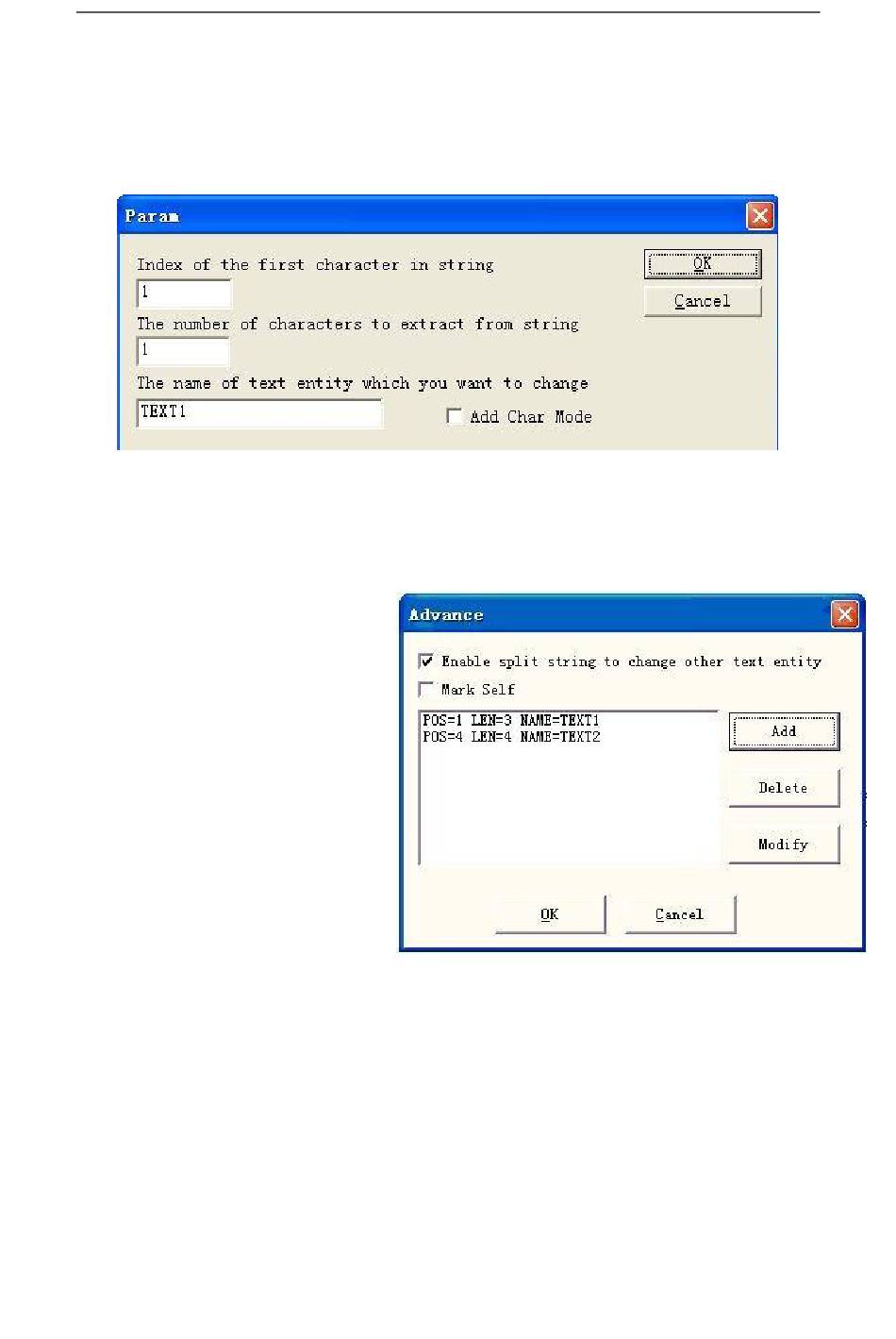

Figure 4-50-c Add split character string parameter
must
processing
Figure 4-50-d The result add split character string
57
