software will stop it automatically.
Continues: Repeatedly mark the figure until stop it manually.
Mark Selected: Only those figures selected will be marked.

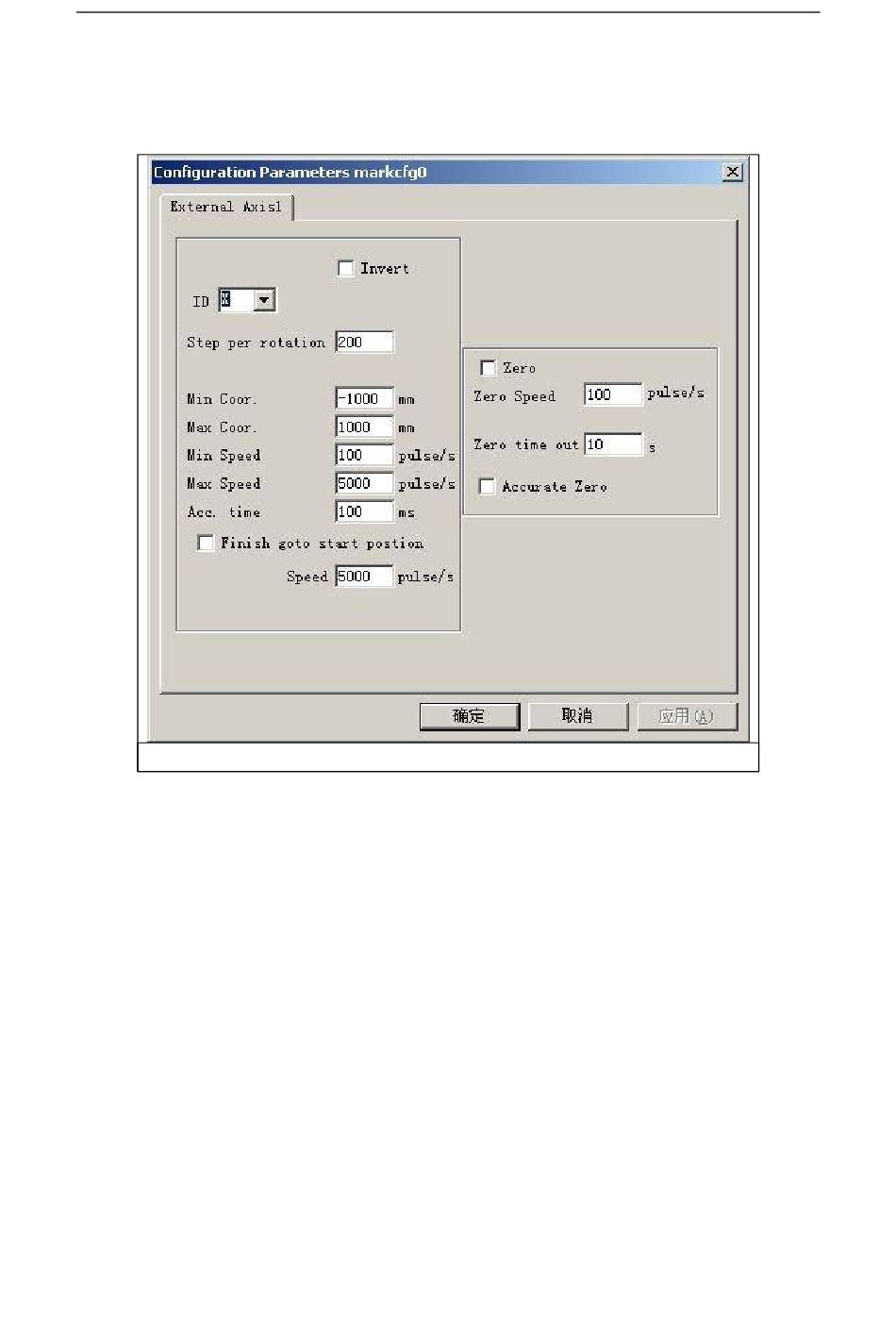

Click parameter, this dialog window will pop-up
The definition of each parameter:
Enable: Enable current expansion axis.
ID: The current expansion axis will be used as axis X/Y/Z.
ID is X, the figure will be split in direction X to mark.
ID is Y, the figure will be split in direction Y to mark.
ID is Z, the expansion axis will move to the appointed position to mark.
Pulses per round: The pulse numbers each round that the expansion axis rotating. We can
calculate it through following formula:
X=（360/N）* n
Thereinto:
Min coor: The minimum logical coordinates of expansion axis. When the object's coordinate
of the expansion axis is smaller than the minimum coordinates, the warning message will popup.
Max coor: The maximum coordinate of expansion axis. When the object's coordinate of the
expansion axis is greater than the maximum logical coordinates, the warning message will popup.
Min speed: the minimum rotary speed of expansion axis.
Figure 8-28
X denotes Pulses per round.
N denotes step angle of step motor.
n denotes micro-step set by step motor driver.
