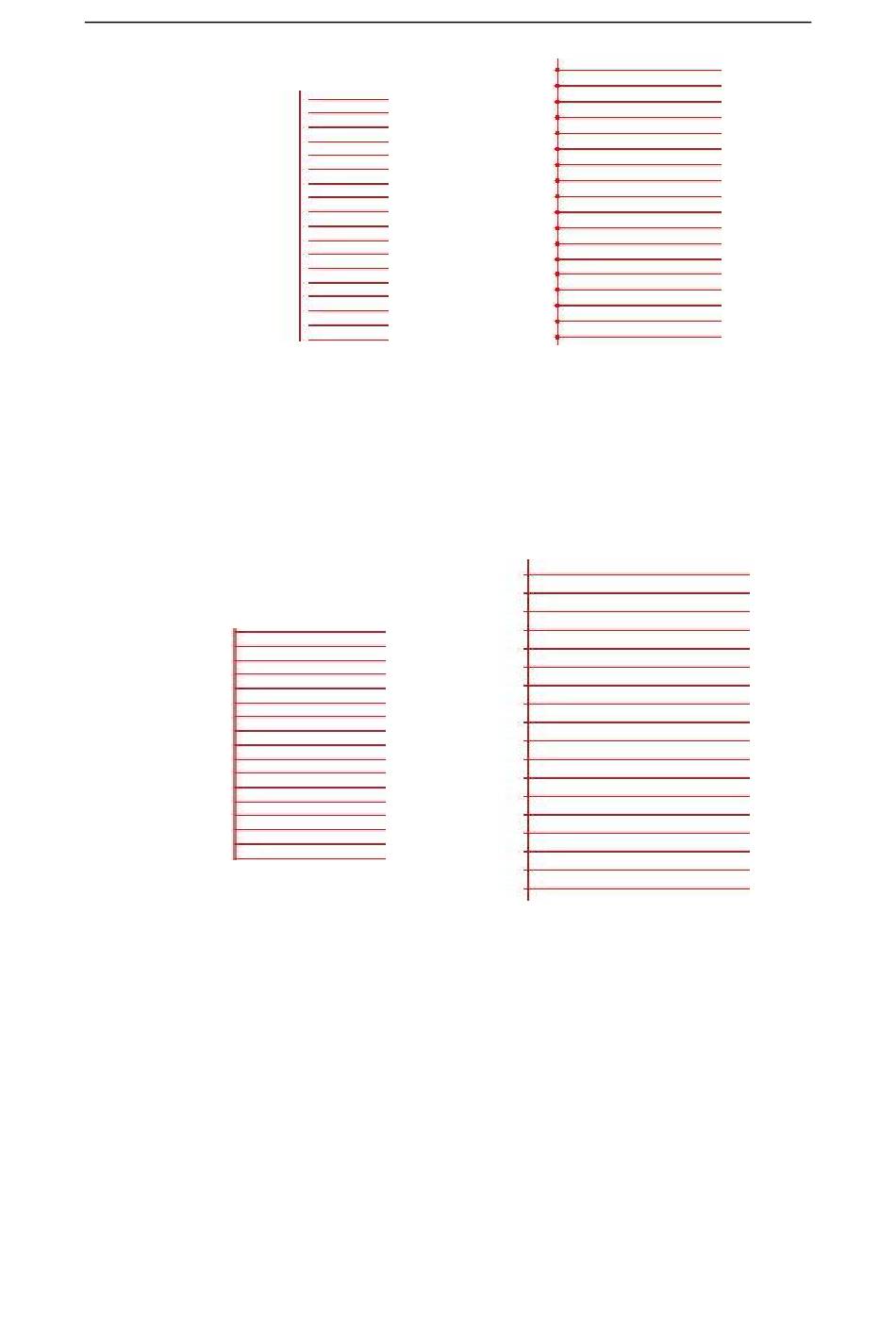

Figure 10-6 Case #1
Case #2: The hatch-lines and the border are intersected (burn-in effect). (Figure 10-7) This is
because the Start TC Value is too small, and it needs to be higher.
Case #3: Uniform result. (Figure 10-8)
Figure 10-8 Case #3
Different manufacturers use different Laser sources and scanner (gavlo), so the performances
are also different. Sometimes when however users modify the Start TC , the hatch-lines and the
border cannot be superposed. Here users need to set the Acc Distance Parameter (Values from
0.05 to 0.25). But this may cause the 4th case: the hatch-lines are beyond the border, as Figure 10-
9 shows. Users may increase the Start TC Value or lower the Acc Distance Parameter, and if the
two parameters are adjusted well, there will be a perfect result.
Adjust End TC:

Still mark the hatched rectangle mentioned above
Here are three possible cases about the hatch-lines and the border's relative positions.
EzCad2UNI User's Manual
Figure 10-7 Case #2
Figure 10-9 Case #4
