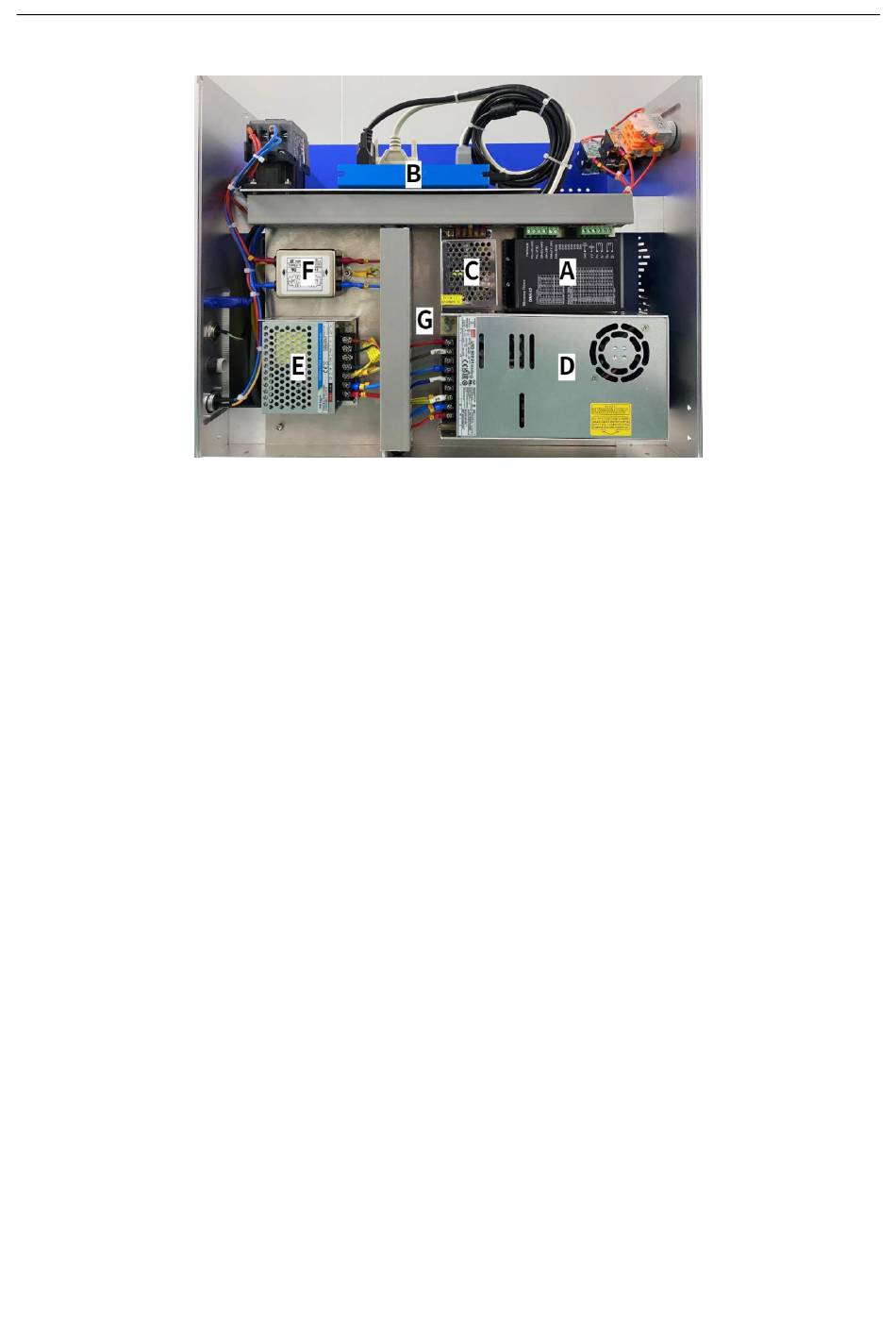

Main Tower
A. Rotary Stepper Motor - Helps control the stepper motor of the attached rotary axis.
B. Mainboard - Works with your software to control the laser.
C. Mainboard Power Supply - Draws 0.5A to convert standard electricity to 5V, 3A power for
the mainboard.
D. Laser Power Supply - Draws 6.8 A to convert standard electricity to 24 V, 14.6 A power for
the fiber laser source.
E. Galvanometer Power Supply - Draws 2.5 A to convert standard electricity to 15 V, 2 A power
for the scanning galvo lens.
F. EMI Filter - Protects the sensitive electronics in the mainboard from interference from the
power supply.
G. Fiber Laser Source(Inside Casing) - Creates the laser beam and transfers it to the fiber optic
pathway to the scanning lens.
