Generally speaking, software accepting signal is the level signal, and press mark button, the

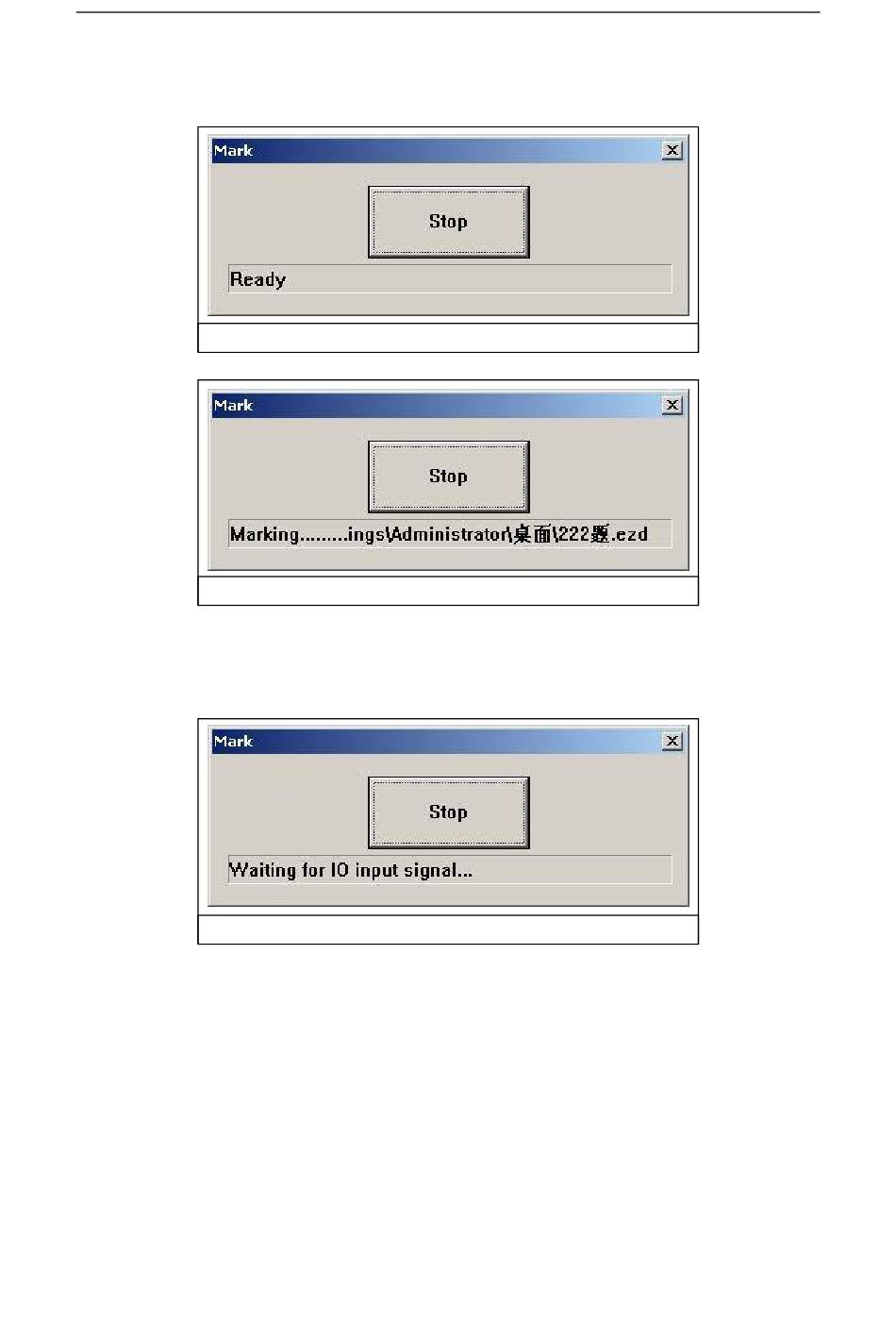

dialog box pops up as Figure 8-39. When the signal accord with setting, shows the figure 8-40,
with the name of file in the following of box.
If must the accepting signals be pulse signals, should set IO port that doesn't show in figure
8-38 in start mark IO. For example, port 0-3 show in figure 8-38, should set other port in start
mark IO, as port 6. Press mark , then pop up figure8-41.When the board accept the start mark IO
and setting IO control conditional at the same time, the files will be marked only one time.

8.4 Power Ruler

The function of is Power Ruler mainly uses for to design each kind of scale, turn on EzCad 2 and
select "PowerRuler " in the laser menu, as is shown in Figure 8-22:
Figure 8-39
Figure 8-40
Figure 8-41
