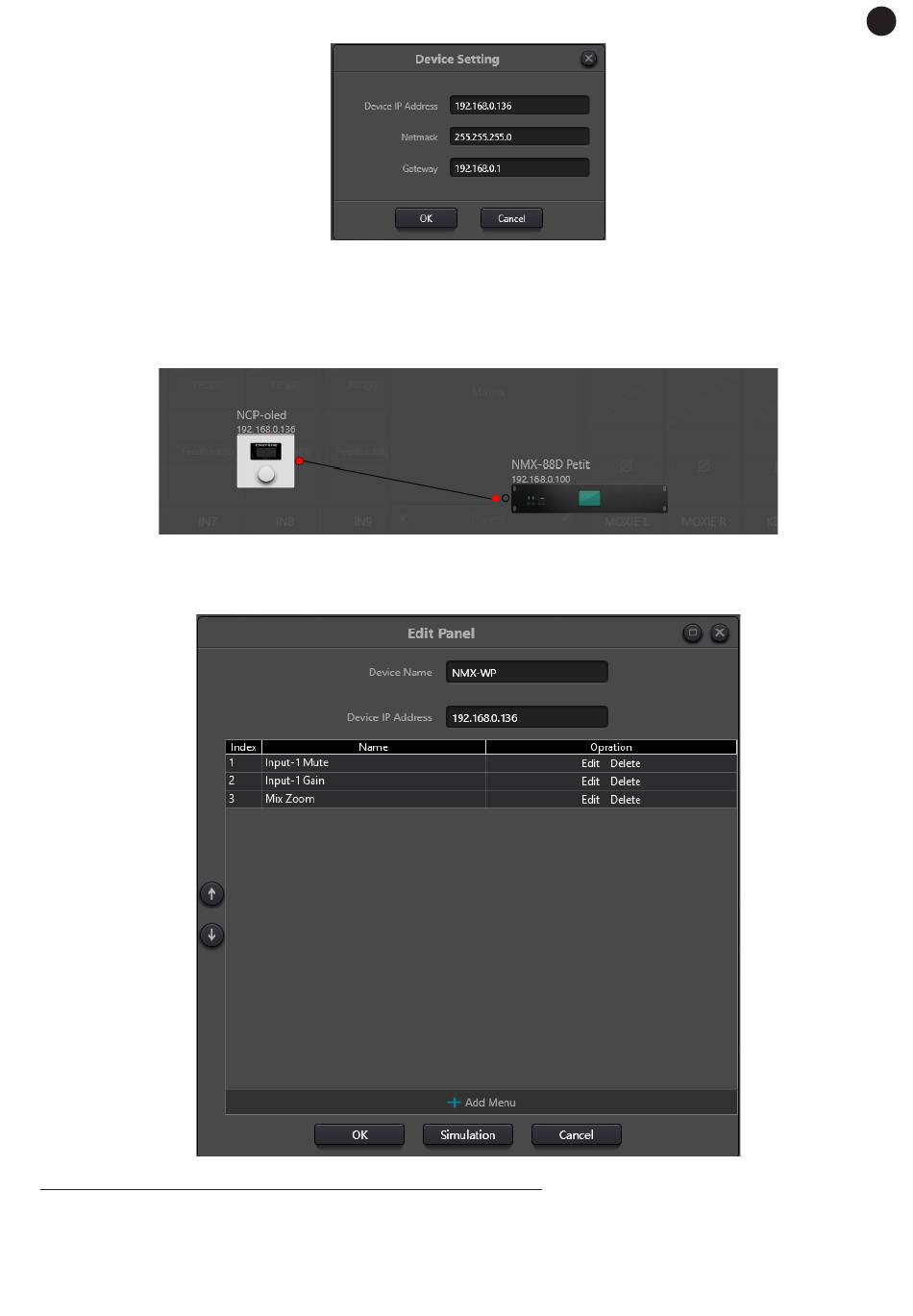

3.- To link the wall panel to a matrix, click and drag the devices from the right panel (wall remotes at the
top, matrices at the bottom) to the centre of the screen. Finally, join the points that have both drawings
and a line will be created between them.
NOTE: if the pictures appear grey, not as shown in the image below, it means that they are not properly
connected, check the network configuration and the physical cables connecting the devices.
4.- Finally, double click on the NMX-WP to configure the device name (DEVICE NAME), its IP (DEVICE IP
ADDRESS), edit or delete the menu options you want to access from this panel (EDIT, DELETE) or add
new options (+ ADD MENU).
CONNECT TAB-10-16 DISPLAYS, TABLET OR IPAD SCREEN
To detect a TAB-10-16, tablet or iPad with the PC software you should consider the following aspects:
-
The tablet must have the APP installed and active.
-
PC and tablet must be on the same network
- 7 -
EN
