The parameters are:
-
NAME: text to be displayed on the screen to identify this action.
-
LISTING:
-
TYPE: communication protocol: UDP, RS232 or RS485.
-
CODING FORMAT: command format: hexadecimal or ASCII.
-
COMMAND: command.
-
IP ADDRESS: matrix IP address.
-
PORT: only for UDP. Communication port.
-
DELETE: delete command.
-
+: add new command to the list.
NOTE: you can help yourself with a command grabber. For more information see MENU BAR AND OTHER
TOOLS > MENU BAR - HELP > COMMAND CAPTURE.

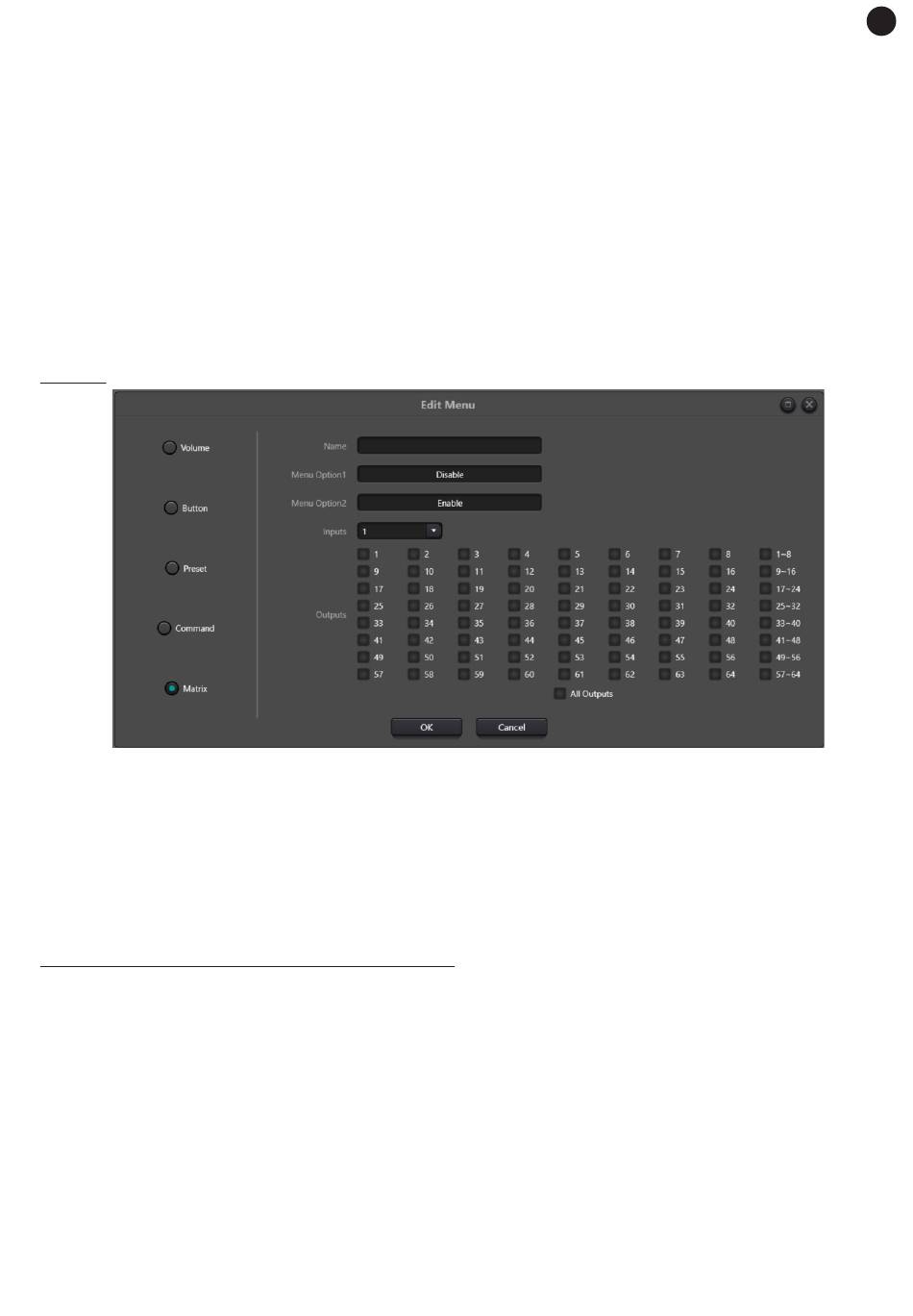

MATRIX
Enables/disables routing from one input to 1 or more matrix outputs. The parameters are:
-
NAME: text to be displayed on the screen to identify this action.
-
MENU OPTION 1: text to be displayed on the screen when the option is disabled.
-
MENU OPTION 2: text to be displayed on the screen when the option is enabled.
-
INPUTS: input to be routed 1-64.
-
OUTPUTS: selection of outputs to send this input to. 3 types of selection: each independent input, in
groups (last column on the right) or all outputs (ALL OUTPUTS).
CREATE A NMX-WP PANEL FILE AND UPLOAD IT
It is possible to perform the configuration offline and online, to store it as a backup and to upload it to the
NMX-WP wall panels at a later time.
1.- In the PC software, go to the SETTINGS > PANEL SETTINGS menu and a new window will appear.
2.- Add the elements of your installation.
OFFLINE: an illustration of the NMX-WP model can be found in the left margin. Click on it and drag
-
the image to the central panel as many times as wall panels you are going to configure for your
installation. And do the same for the matrix illustration. Double click on the NMX-WP illustration to
configure the device name (DEVICE NAME), its IP (DEVICE IP ADDRESS) and double click on the
NMX matrix to configure its IP (DEVICE IP ADDRESS).
-
ONLINE: you can see the detected devices in the right panel. Click and drag each item you wish to
configure.
