CONNECT AN NMX MATRIX

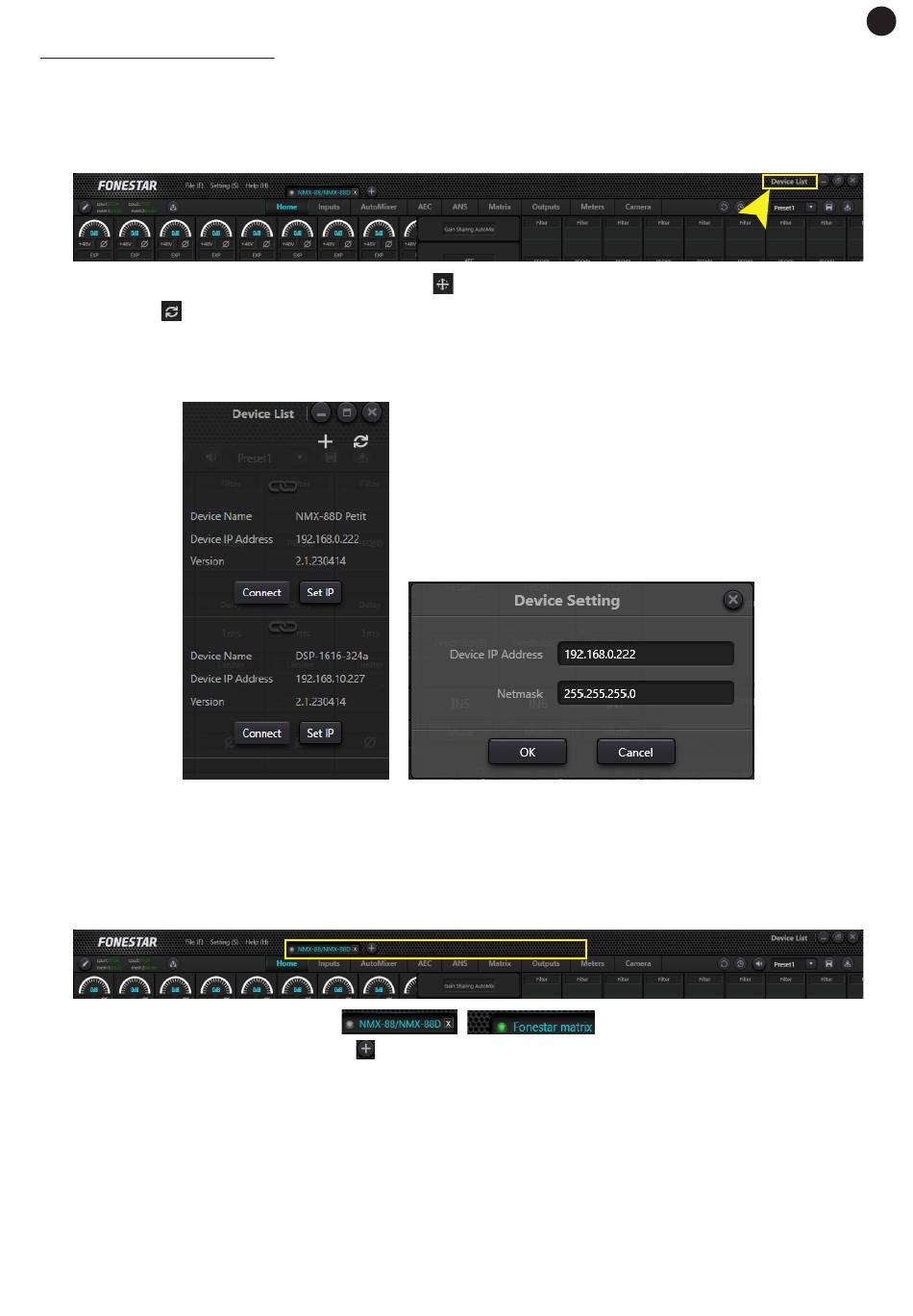

1.- In the PC software, in the upper right corner, you will find DEVICE LIST which will show you all active
matrices physically connected to the same network as the PC and which are automatically detected by
UDP discovery.
NOTE: each matrix supports up to 4 simultaneous control connections (PCs).
To add new matrices you can either click the
or click the
button to refresh the list of matrices (recommended).
2.- In this list you can see the matrices whose configuration can be modified by pressing the SET IP
button. On the pop-up screen, you can enter the DEVICE IP ADDRESS and NETMASK to configure the
matrices on the same network as the PC.
3.- Once the network of all the matrices has been configured, you will have to link each matrix to a
configuration panel from which you can control the inputs and outputs, filters, etc. Please note that a
first configuration panel is created when you start the software. With this panel selected, click on the
CONNECT button of the matrix to be linked. The indicator on this configuration panel will change status
from grey to green indicating that the matrix is connected and the name of the panel will change to the
name configured on the matrix for easy identification.
4.- To add other matrices, click on the
of the matrices already added and indicate how many matrices of each type you wish to add.
Finally, repeat the same steps as many times as there are matrices in the installation:
-
Select 1 configuration panel by clicking on the tab at the top.
-
Search for active devices in DEVICE LIST
-
Select the matrix to be linked to the tab and click on CONNECT
5.- RECOMMENDED. To change the name of the matrices, select the tab of the matrix to
be modified, go to the top menu SETTING > DEVICE SETTING and modify the value
DEVICE NAME.
button and manually enter the IP address of the matrix
button to the right of the tabs identifying each configuration panel
