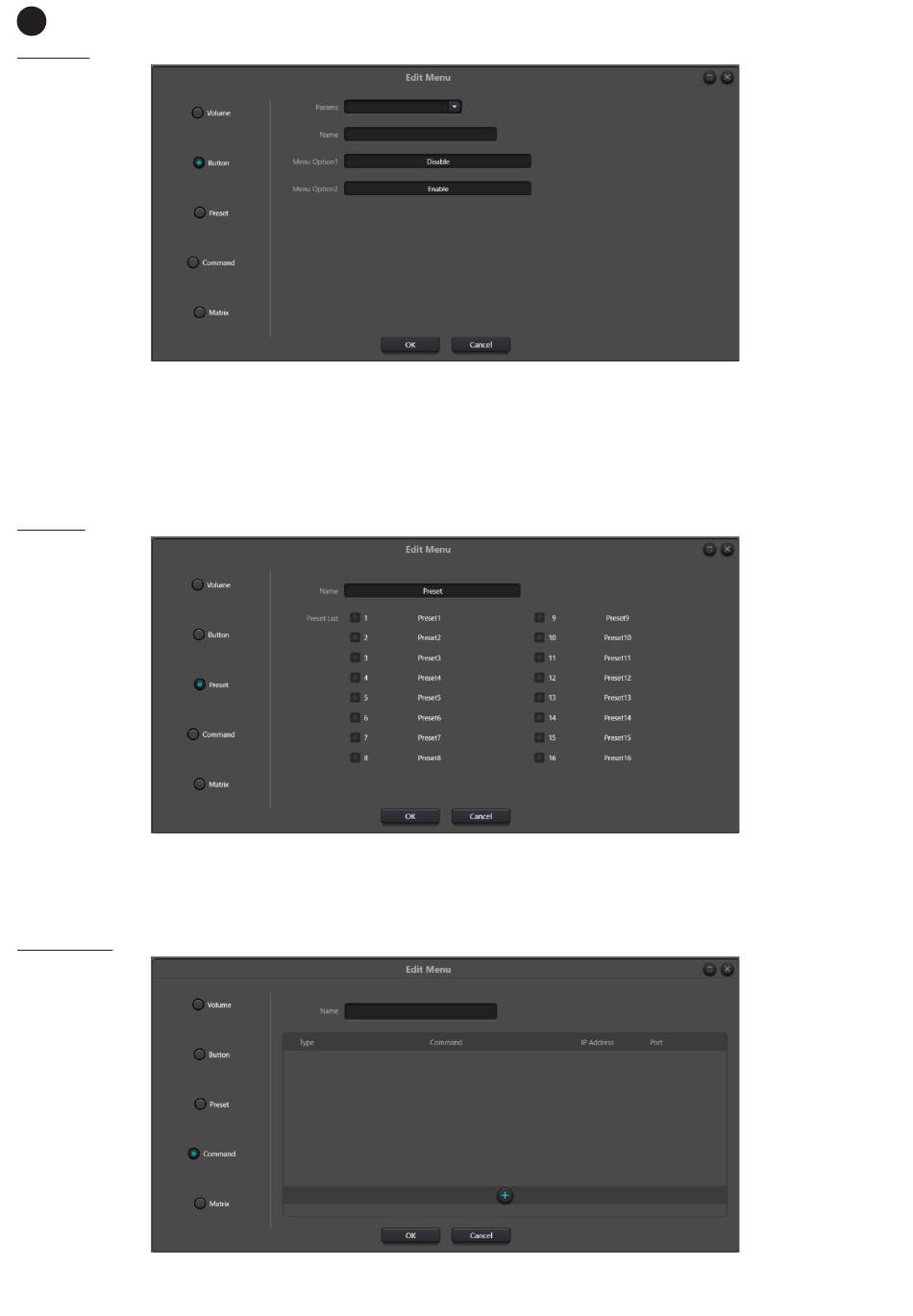

BUTTON
Allows you to mute 1 channel, input or output, or the entire system. The parameters are:
-
PARAMS: input (1-64), output (1-64) or matrix (SYSTEM) on which to apply the action.
-
NAME: text to be displayed on the screen to identify this action.
-
MENU OPTION 1: text to be displayed on the screen when the option is disabled.
-
MENU OPTION 2: text to be displayed on the screen when the option is enabled.
PRESET
Activates 1 or more presets in the matrix. The parameters are:
-
NAME: text to be displayed on the screen to identify this action.
-
RESET LIST 1-16: selection of 1 or more presets.
COMMAND
Sends instructions to the matrix via UDP, RS232 or RS485 remote control commands.
- 46 -
