EN
DSP MODULES FOR INPUTS/OUTPUTS
This software is very flexible and includes a large selection of DSP modules with unique features that allow
for exceptional audio configuration of inputs and outputs.
It is possible to configure up to 5 DSP modules on each input and 4 on each output.
The following is a list of the different existing modules for input or output channels:
** This module is included in all input channels and cannot be disabled.
ADD/DELETE A DSP MODULE APPLIED TO AN INPUT OR OUTPUT CHANNEL
In the HOME tab, in the top left corner, under the FONESTAR logo, you will
find access to editing. The edit module will allow you to configure the DSP
modules for each input and output.
IMPORTANT: during configuration watch the information displayed under
the FONESTAR logo which shows the memory and CPU usage based on the
configuration being performed. If these values are green, the resources are
sufficient, yellow means that the resources are approaching their limit and
red means that the resources have been exceeded and the configuration
made cannot be saved in the matrix.
-
Press the
button to start editing.
-

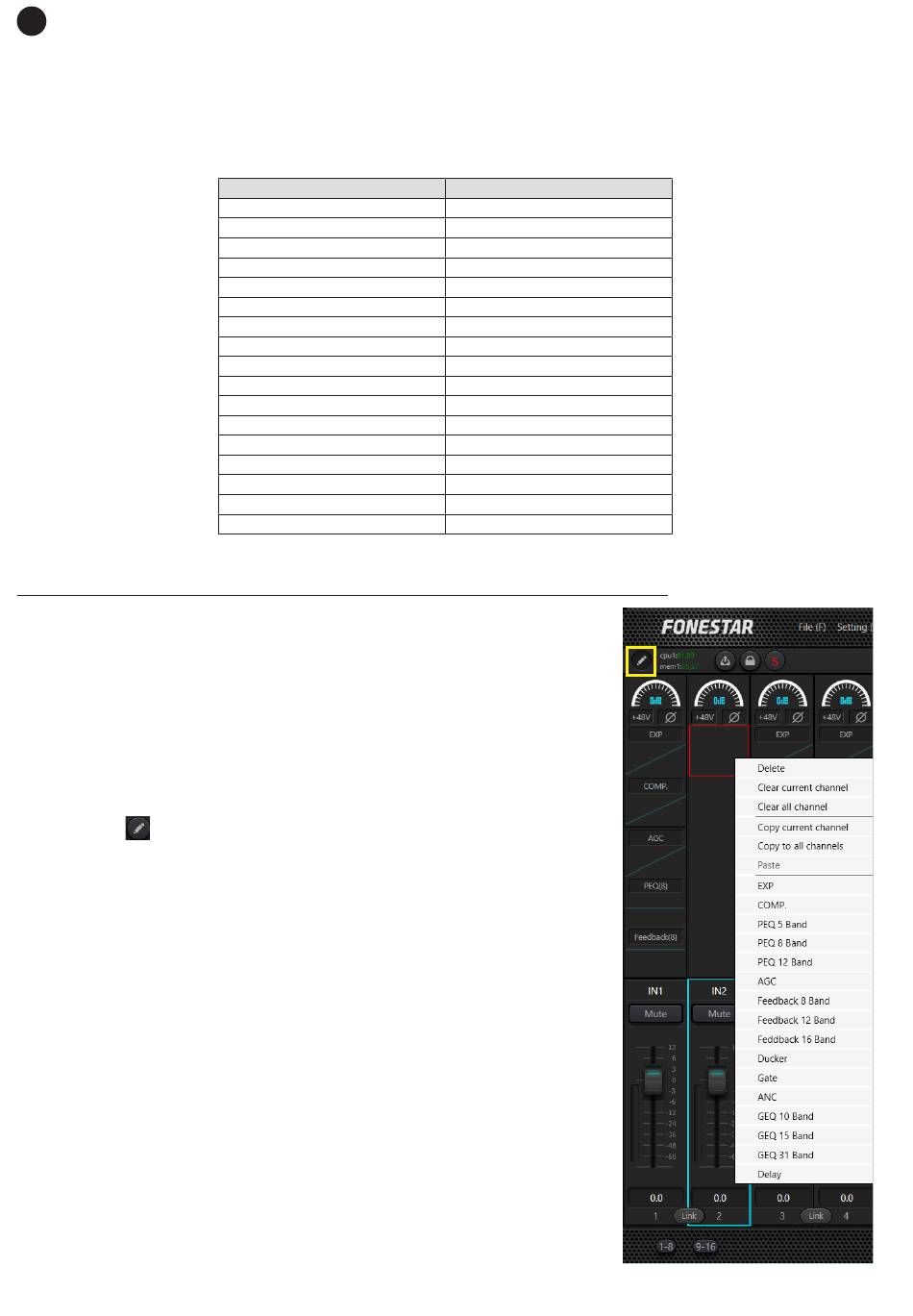

Scroll with the mouse over the DSP modules and a red box will identify
your selection.
-
Right-click to display the available options and select the one you want.
-
DELETE: delete module.
-
CLEAR CURRENT CHANNEL: delete all modules of the selected
channel.
-
CLEAR ALL CHANNEL: delete all modules of all input or output
channels, depending on whether an input or output channel is
selected.
-
COPY CURRENT CHANNEL: copies all modules associated with the
selected channel into memory.
-
COPY TO ALL CHANNELS: assigns to all input or output channels,
depending on whether an input or output channel is selected, the
modules previously copied to memory.
-
PASTE: assigns the modules previously copied to memory to the
selected channel.
-
The last block of this drop-down list shows the DSP modules
available for the selected channel. By selecting one of them, it will
be placed in the block highlighted in red.
INPUTS
INPUT SOURCE**
EXP
COMPR
PEQ 5 Band
PEQ 8 Band
PEQ 12 Band
AGC
FEEDBACK 8 Band
FEEDBACK 12 Band
FEEDBACK 16 Band
DUCKER
GATE
ANC
GEQ 10 Band
GEQ 15 Band
GEQ 31 Band
DELAY
- 34 -
OUTPUTS
FILTER
PEQ 5 Band
PEQ 8 Band
PEQ 12 Band
DELAY
LIMITER
GEQ 10 Band
GEQ 15 Band
GEQ 31 Band
