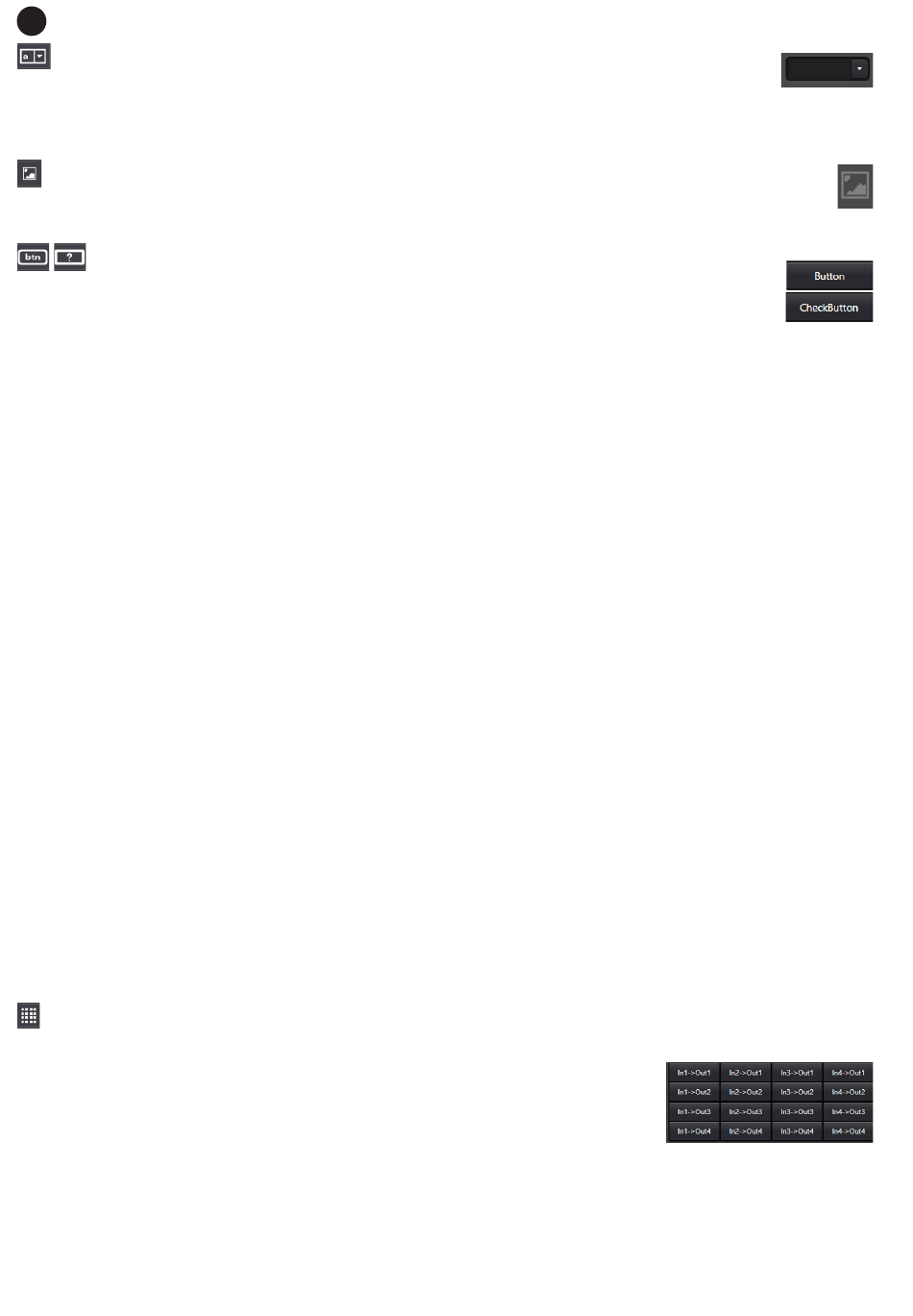

: preset selector.
-
WIDTH: element width.
-
PRESET: presets 1-16 of the matrix to be displayed in the selector.
-
DEVICE IP: matrix IP address.
: image box.
-
FILE PATH, BROWSER: file path and file explorer shortcut.
-
WIDTH, HEIGHT: element width and height.
: button and 2-state push button (pressed, not pressed).
TEXT tab:
-
TEXT: text to be displayed.
-
WIDTH, HEIGHT: element width and height.
-
CORNER RADIUS: radius of the corners of the outer rectangle.
-
FONT, FONT SIZE, B, I: font, size, bold and italics.
-
BORDER THICKNESS, BORDER BRUSH: thickness and colour of the outer rectangle.
-
FOREGROUND: text colour.
-
BACKGROUND: background colour.
COMMAND tab - SYSTEM COMMAND (2-state button only):
-
CONTROL ZONE: area to be monitored: INPUT, OUTPUT, SYSTEM, MATRIX.
-
INPUT CHANNEL: (INPUT and MATRIX only) input channel to act on.
-
OUTPUT CHANNEL: (OUTPUT and MATRIX only) output channel to act on.
-
CONTROL TYPE: (INPUT, OUTPUT and SYSTEM only) action to be taken: MUTE, PHANTOM or
PHASE (change phase).
-
DEVICE IP ADDRESS: matrix IP address.
COMMAND tab - CUSTOM COMMAND:
-
TYPE: communication protocol: UDP, RS232 or RS485.
-
CODING FORMAT: command format: hexadecimal or ASCII.
-
COMMAND: command.
-
IP ADDRESS: matrix IP address.
-
PORT: only for UDP. Communication port.
-
INTERVAL TIME: waiting time between this action and the next
-
DELETE: delete command.
-
+: add new command to the list.
NOTE: you can help yourself with a command grabber. For more information see MENU BAR AND
OTHER TOOLS > MENU BAR - HELP > COMMAND CAPTURE.
NOTE: the 2-state button has 2 tabs in the CUSTOM COMMAND section, CHECKED and UNCHECKED,
to create different action lists for each of the states of the button.
: input and output routing matrix. The dialog box will ask for the size of the matrix before drawing the
element (columns x rows) and the IP address of the matrix to which this input/output routing matrix is
associated.
-
TEXT: changes the text of all buttons in the matrix (not recommended).
See NOTE.
-
WIDTH, HEIGHT: element width and height.
-
CORNER RADIUS: radius of the corners of the outer rectangle.
-
FONT, FONT SIZE, B, I: font, size, bold and italics.
-
BORDER THICKNESS, BORDER BRUSH: thickness and colour of the outer rectangle.
-
CHECKED FOREGROUND, FOREGROUND: text colour when it is selected and when it is not.
-
CHECKED BACKGROUND, BACKGROUND: background colour when selected and when not
selected.
one.
