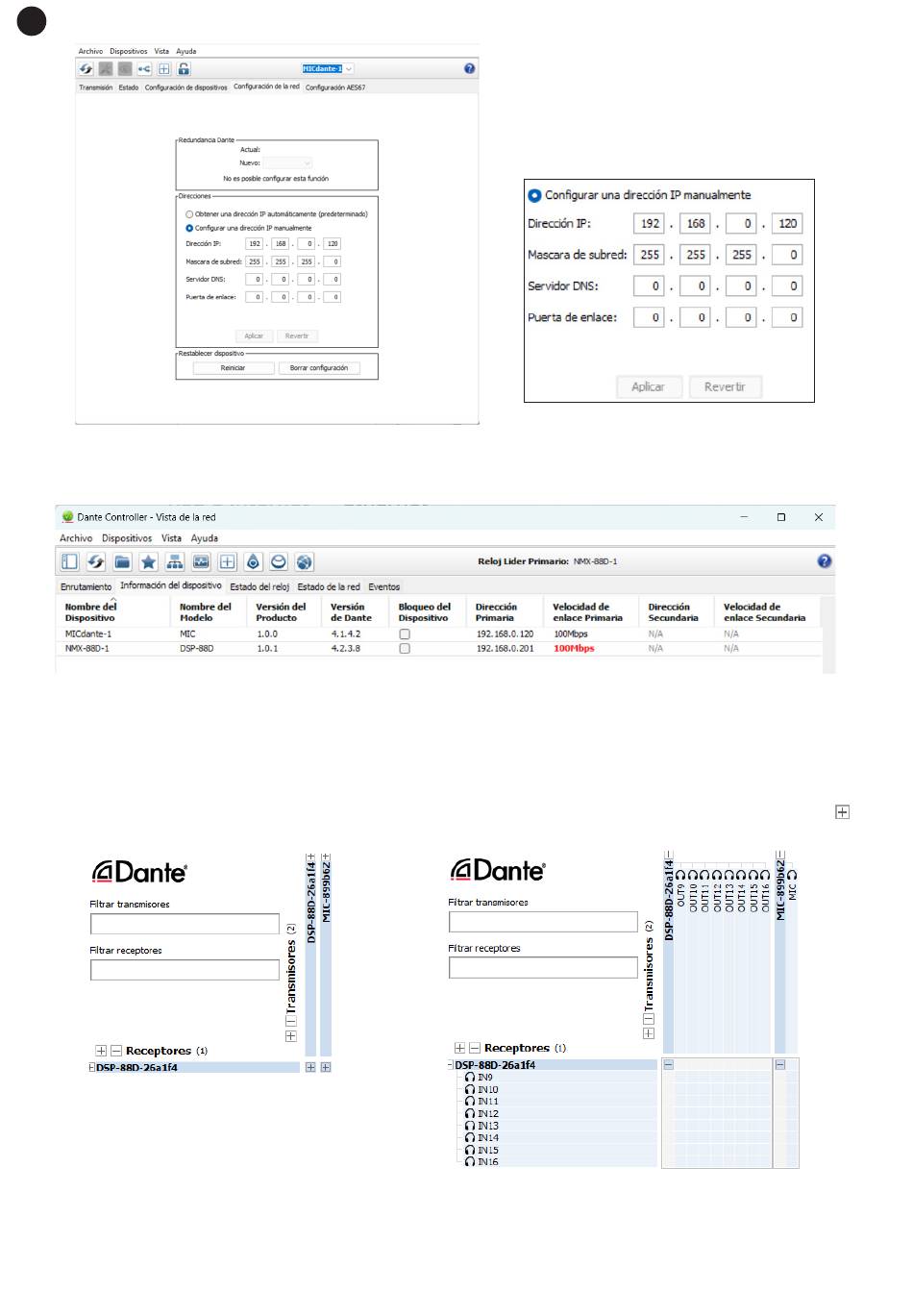

8.- Reset the previous network configuration on your PC and after a few seconds you will see again the
list where all devices are correctly configured, i.e. no device will be shown in red. If this is not the case,
before proceeding, perform the same steps for each of the devices shown in red.
9.- It is recommended that you edit the name of the devices to facilitate their identification. To do so,
double-click on a Dante device in this list of Dante devices. The same pop-up window will open again,
select the DEVICE CONFIGURATION tab and edit the DEVICE RENAME field. Click APPLY to save the
changes and close the window.
10.- At this point we can access the ROUTING tab where we can see the TRANSMITTER devices (Dante
audio outputs) at the top and the RECEIVERS (Dante audio inputs) at the bottom. Click on the
display all channels in matrix form.
11.- Through this matrix we can assign the audio channel of the MCMD-2 microphone to 1 or more input
channels of the matrix or Dante matrix by clicking on the cell where the microphone channel and the
input channel intersect. Almost immediately you will see a green tick in this cell indicating the correct
assignment of the audio channel.
- 10 -
